Siemens SIMATIC Rack PC 840 V2 - Dimensional Drawing for the Use of Telescopic Rails

Dimensional Drawings
15.2 Dimensional drawing for the use of telescopic rails
SIMATIC Rack PC 840 V2
15-2 Operating Instructions, Edition 05/2006, A5E00248055-04
15.2 15.2 Dimensional drawing for the use of telescopic rails

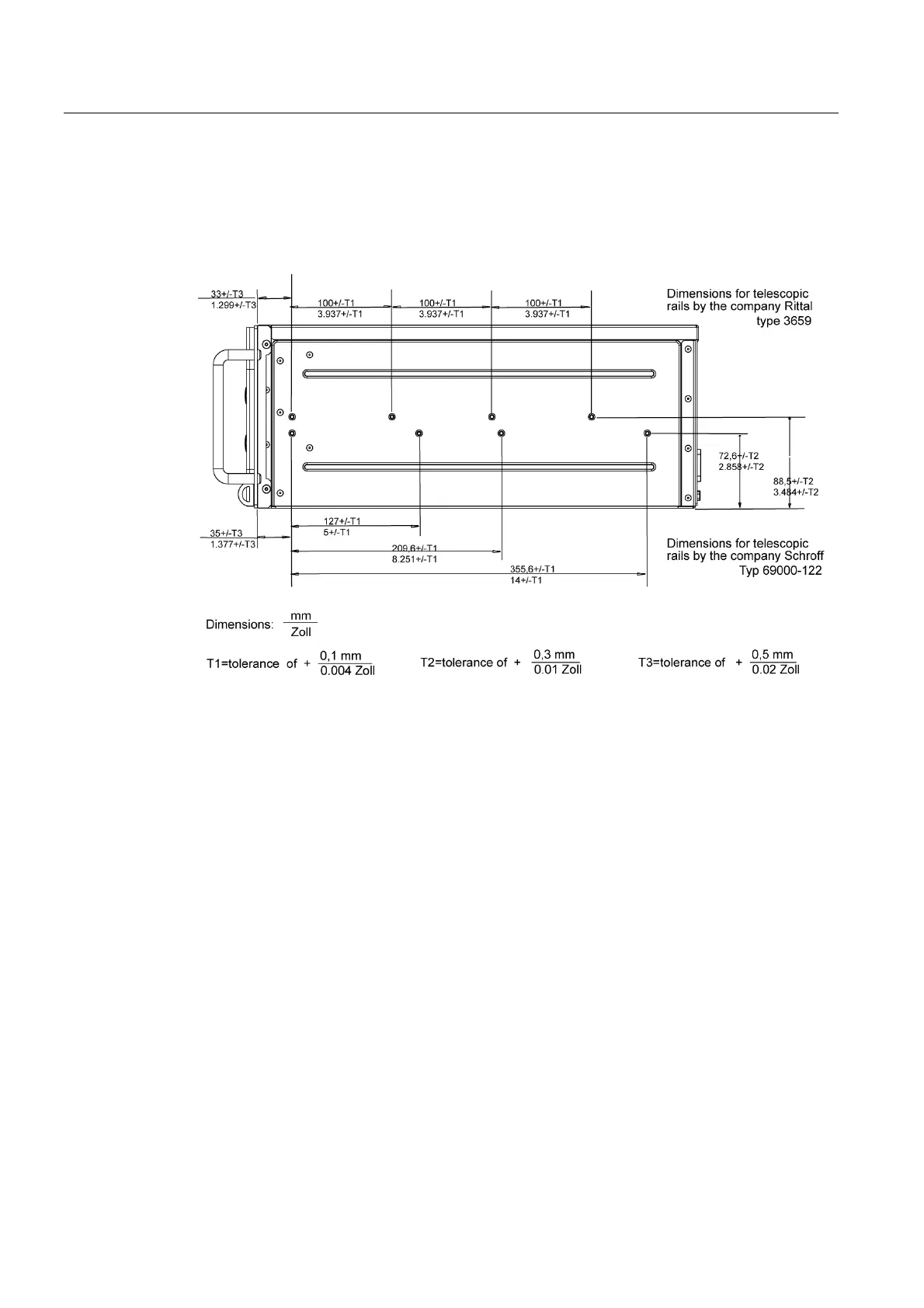

Figure 15-2 Dimensional drawing for the use of telescopic rails
