Dimensional Drawings
15.3 Dimensional drawings for the installation of expansion modules
SIMATIC Rack PC 840 V2
Operating Instructions, Edition 05/2006, A5E00248055-04
15-3
15.3 15.3 Dimensional drawings for the installation of expansion modules

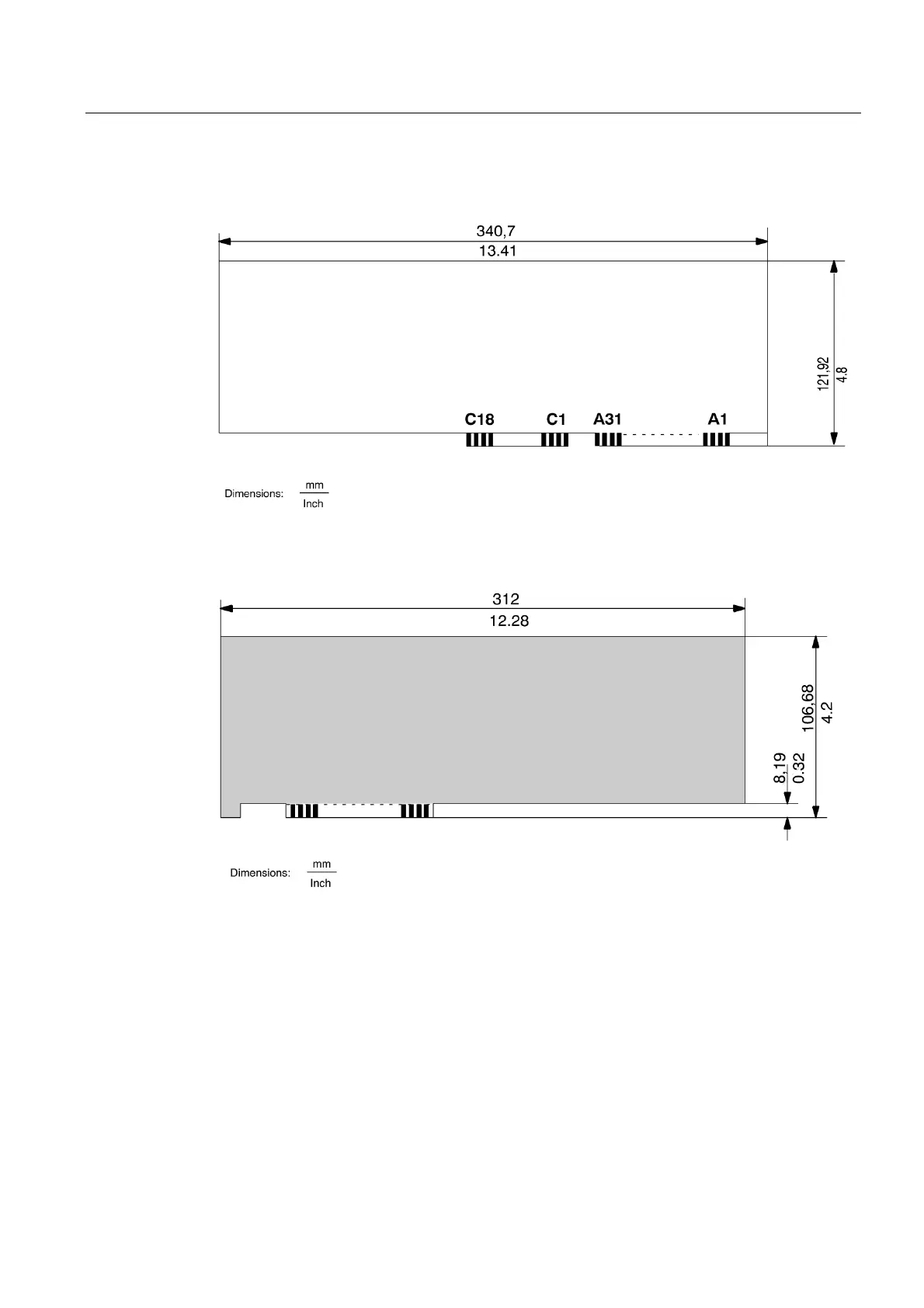

Figure 15-3 AT module
Figure 15-4 Long format PCI module
