Application planning

6.3 Configuration versions

S7-1500R/H redundant system

140 System Manual, 01/2024, A5E41814787-AF

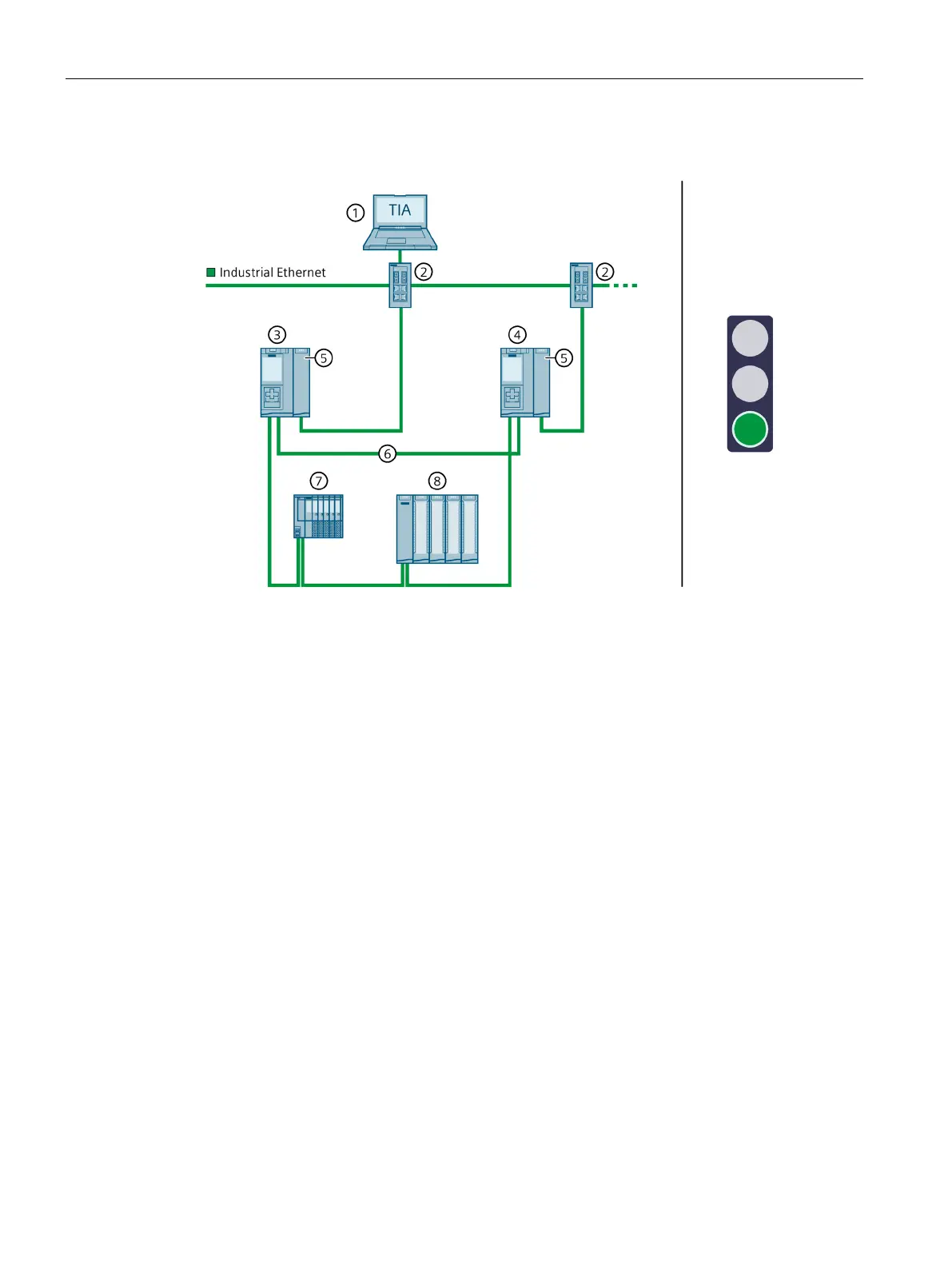

S7-1500R configuration

①

Engineering station

②

Switch

③

CPU 1

④

CPU 2

⑤

CP 1543-1

⑥

PROFINET cable (redundancy connections, PROFINET ring)

⑦

IO device ET 200SP

⑧

IO device ET 200MP

Figure 6-6 S7-1500R configuration with CP 1543-1
