8.9 Connecting interfaces for communication with S7-1500H
S7-1500R/H redundant system
286 System Manual, 01/2024, A5E41814787-AF
8.9.3 Connecting line topology to S7-1500H
Introduction
You connect the line topology via the RJ45 sockets of the PROFINET interfaces X1 P1R.
Accessories required
PROFINET cable for line topology
Connecting line topology with S2 devices
Plug the RJ45 connectors of the PROFINET cable of the line topology into each of the RJ45
sockets of the PROFINET interfaces X1 P1R of the two H-CPUs.

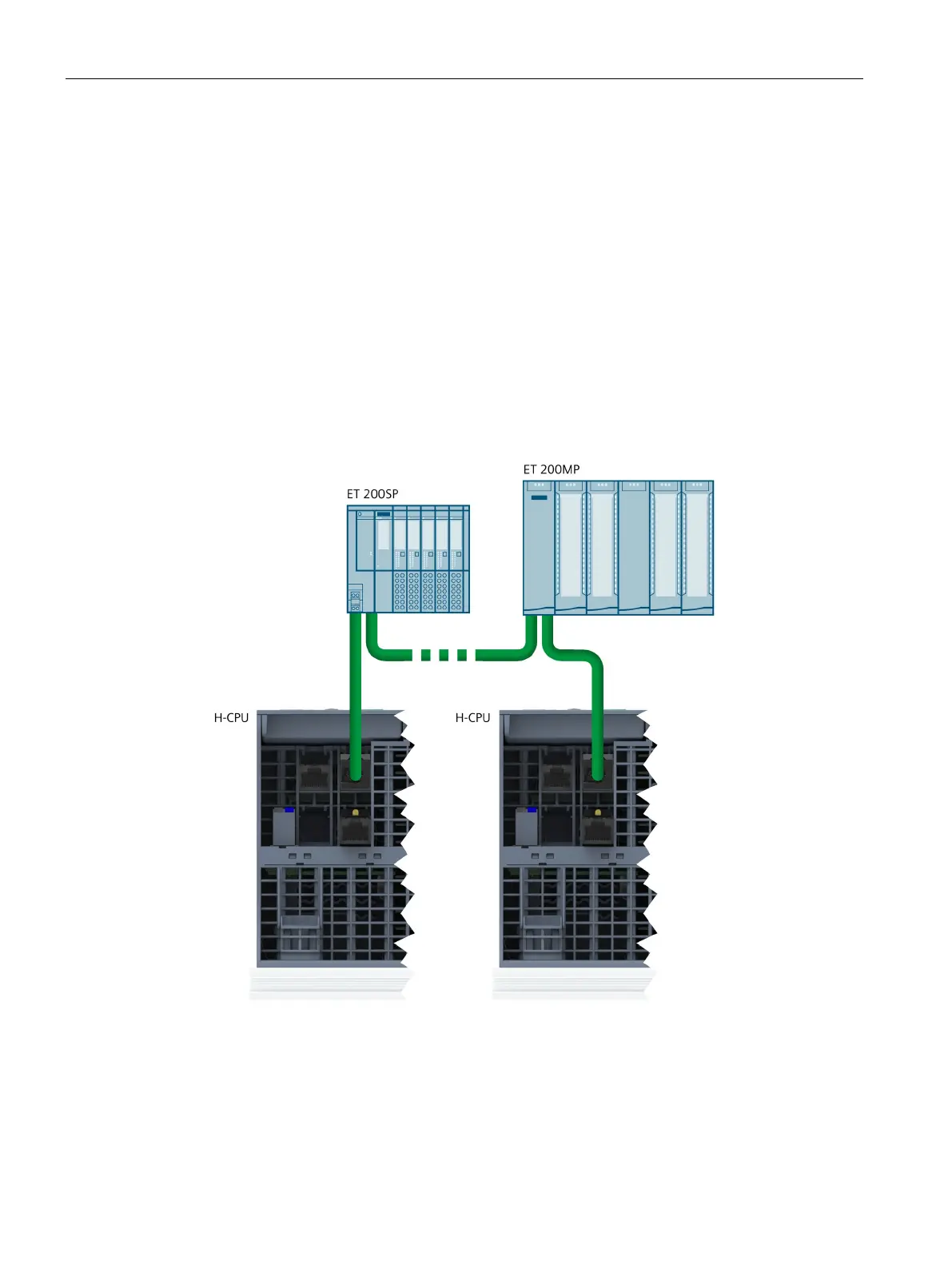

Figure 8-15 Connect line topology with S2 devices to S7-1500H
