Application planning
6.3 Configuration versions
S7-1500R/H redundant system
System Manual, 01/2024, A5E41814787-AF
169

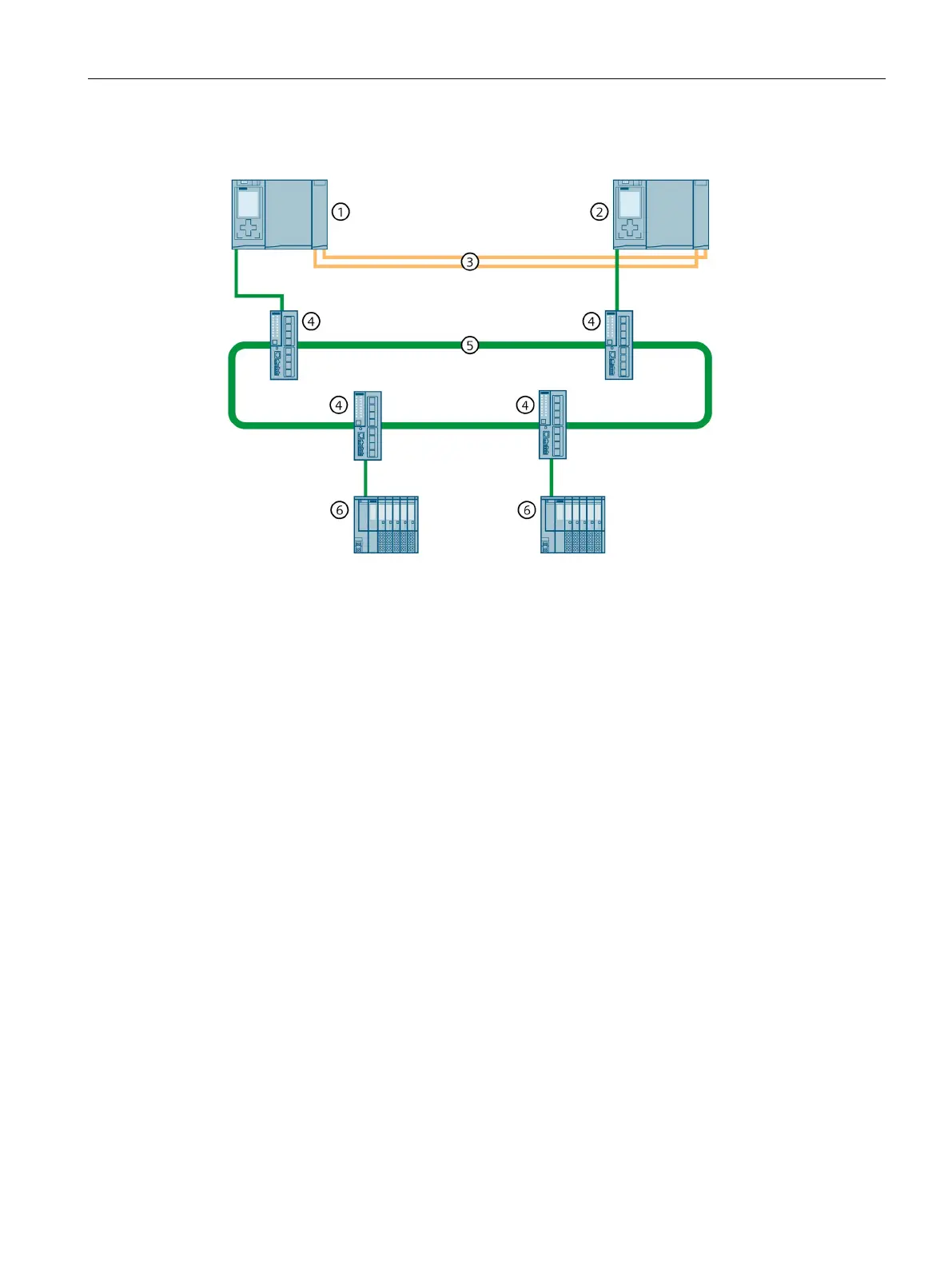

S7-1500H configuration with S2 devices and backbone ring
Two fiber-optic cables (redundancy connections)
Backbone ring (existing combined topology)
IO device ET 200SP (with system redundancy S2)
Figure 6-27 S7-1500H configuration with S2 devices and backbone ring
6.3.7.9 Configuration of combined topology with R1 devices
Introduction
The section below shows you the configuration of the S7-1500H redundant system with R1
devices in a combined topology.
Advantages/benefits
• Within the combined topology, any topology is allowed:
– Ring topology
– Line topology
– Star topology
• The combined topologies can be extended by additional R1 devices.
• Two existing backbone rings can be connected to the S7-1500H redundant system as
separate networks. They connect backbone rings and other R1 devices via switches.
