Siemens Simatic S7-1500

Application planning
6.3 Configuration versions
S7-1500R/H redundant system
System Manual, 01/2024, A5E41814787-AF
141

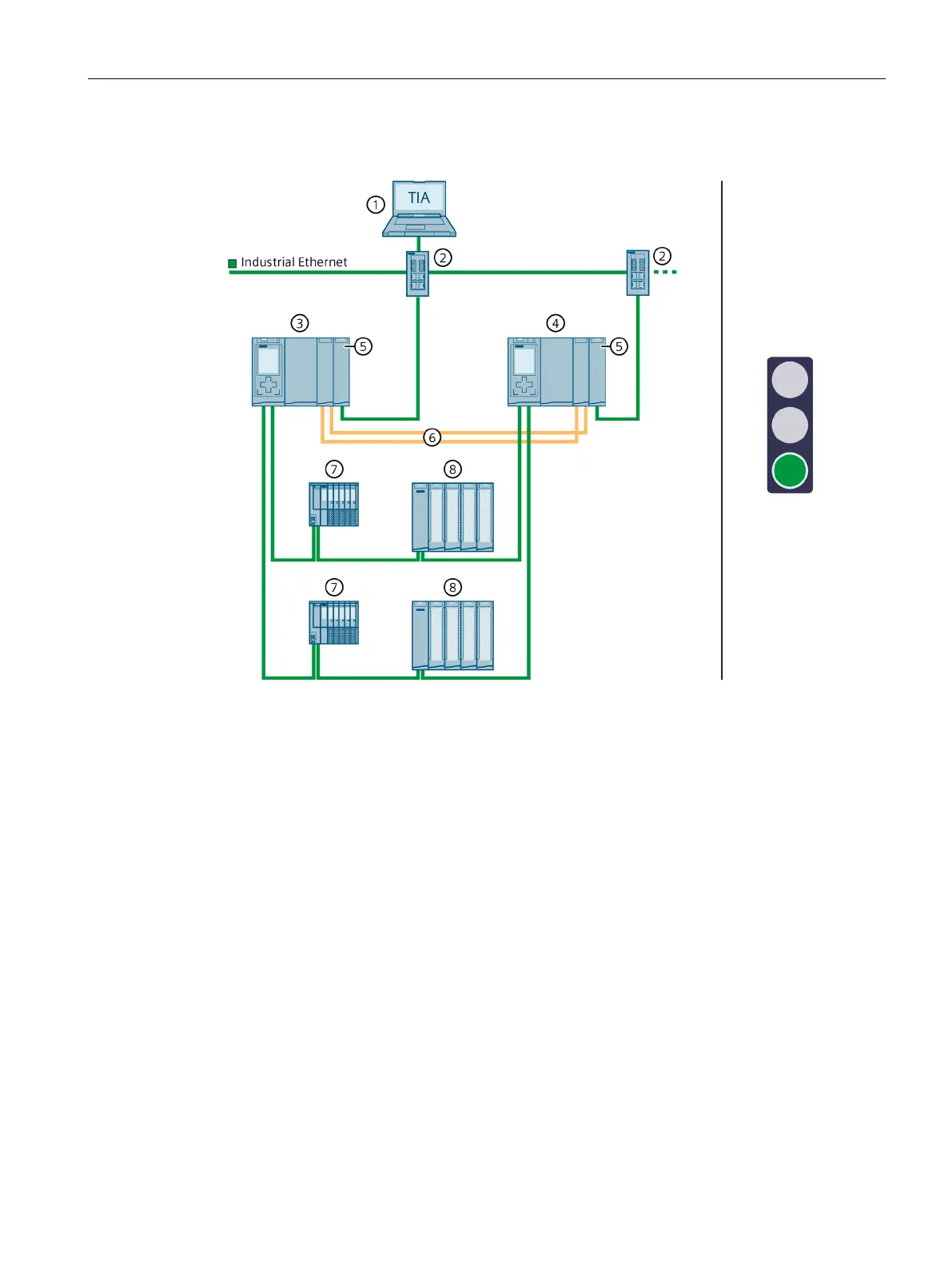

S7-1500H configuration
①
Engineering station
②
Switch
③
CPU 1
④
CPU 2
⑤
CP 1543-1
⑥
Two fiber-optic cables (redundancy connections)
⑦
IO device ET 200SP
⑧
IO device ET 200MP
Figure 6-7 S7-1500H configuration with CP 1543-1
6.3.4 Configuration with communications processors on redundant Industrial
Ethernet
Introduction
The following configuration shows the redundant S7-1500R/H system with communications
processors on redundant Industrial Ethernet.
