6.4.4 Failure of the PROFINET cable in the PROFINET ring
Introduction
The following redundancy scenario describes the effects of a defective PROFINET cable in the
PROFINET ring.
Redundancy scenario
PROFINET cable (redundancy connections, PROFINET ring) → interrupted

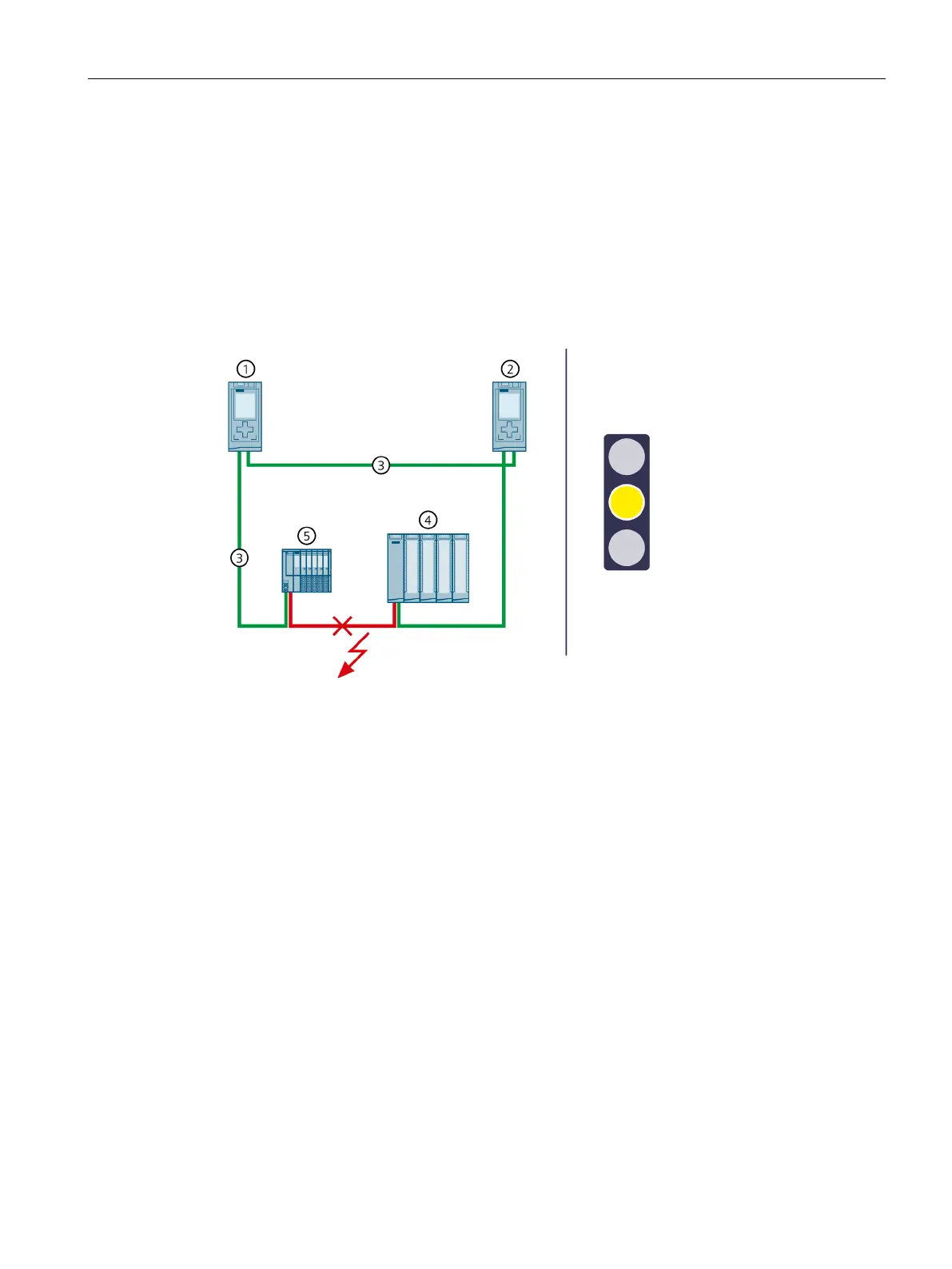

Figure 6-34 Failure of a PROFINET cable in the PROFINET ring (using S7-1500R as an example)
