Installation
7.4 Installing the standard rail adapter
S7-1500R/H redundant system
System Manual, 01/2024, A5E41814787-AF
245
Article number
6ES7590-6AA00-0AA0
The scope of delivery consists of ten adapters, ten hexagon socket-head screws and ten
washers.
View
The DIN rail adapter consists of a clamp, an adapter frame and a hexagon socket-head screw
with washer.
Hexagon socket-head screw

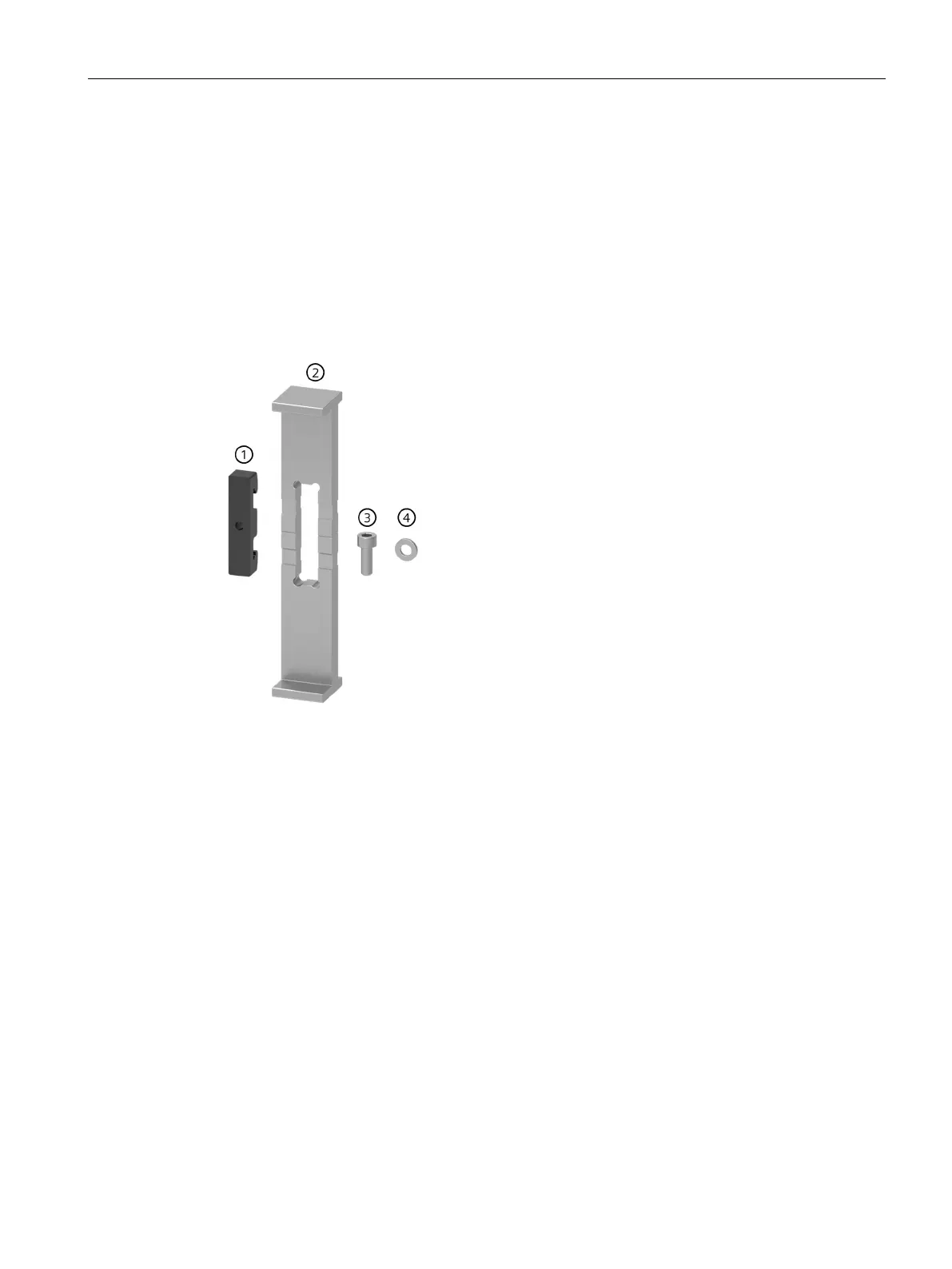

Figure 7-4 Parts of the DIN rail adapter
