Dimension drawings

S7-1500R/H redundant system

System Manual, 01/2024, A5E41814787-AF

495

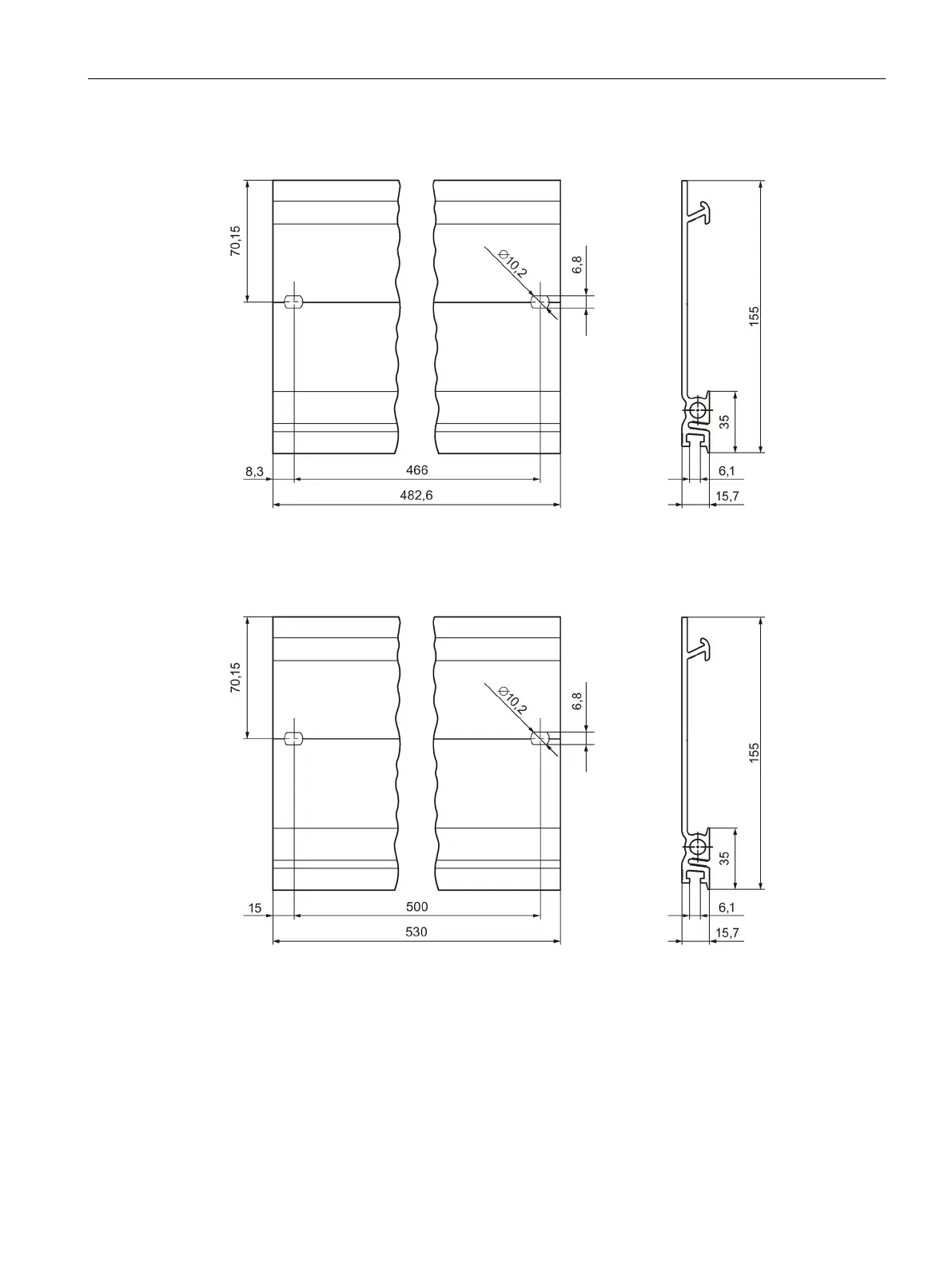

Mounting rail 482.6 mm

Figure A-3 Mounting rail 482.6 mm

Mounting rail 530 mm

Figure A-4 Mounting rail 530 mm
