System overview
5.1 What is the S7-1500R/H redundant system?
S7-1500R/H redundant system
System Manual, 01/2024, A5E41814787-AF
71

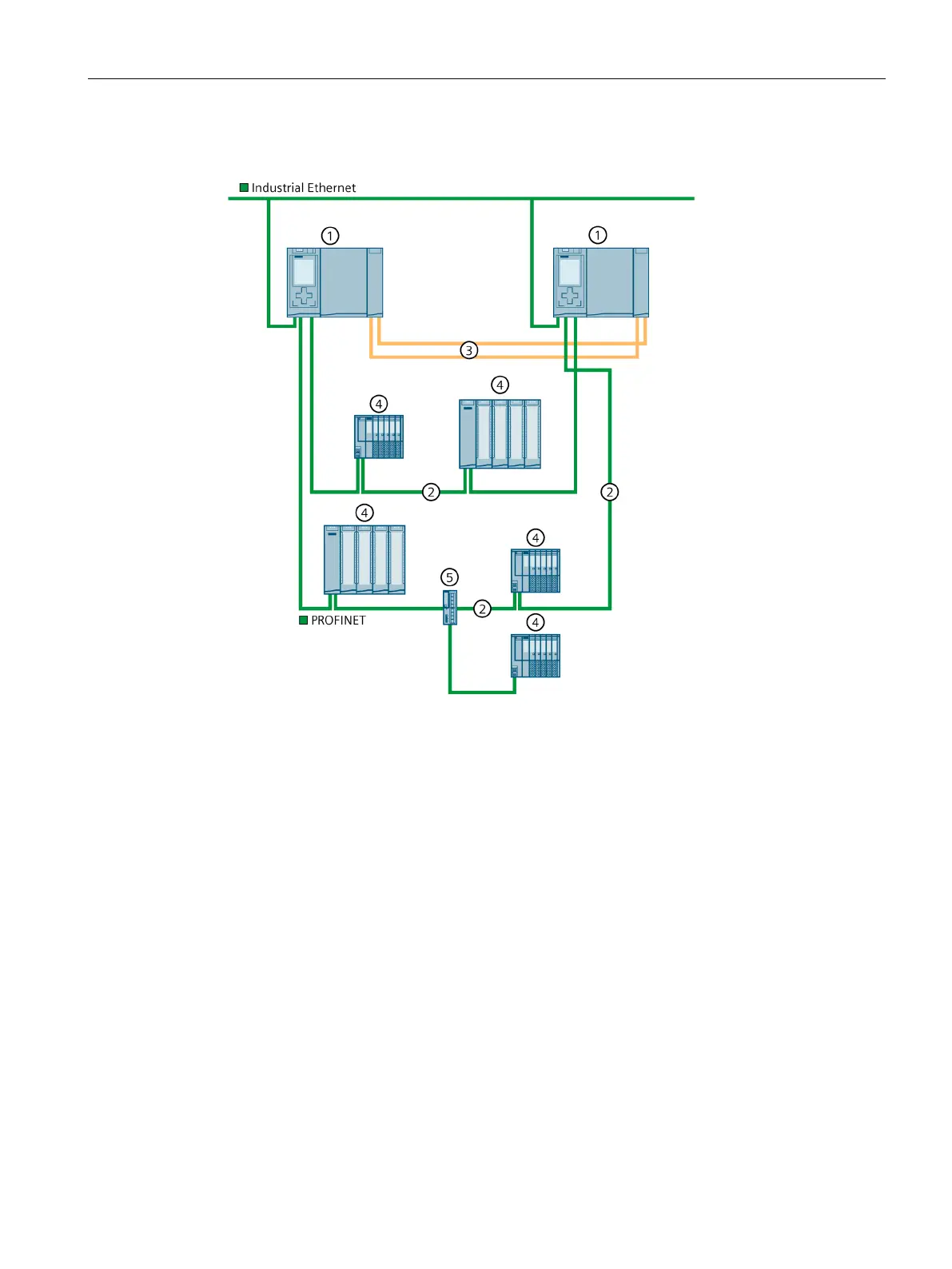

The following figure shows a configuration of the S7-1500H in a PROFINET ring.
①
H-CPU
②
PROFINET cable (PROFINET ring)
③
Redundancy connections (fiber-optic cables)
④
IO device
⑤
Switch
Figure 5-5 S7-1500H configuration with IO devices in the PROFINET ring
