F.10 SM 331; AI 8 12 Bit, 6ES7 331-7KF02-0AB0

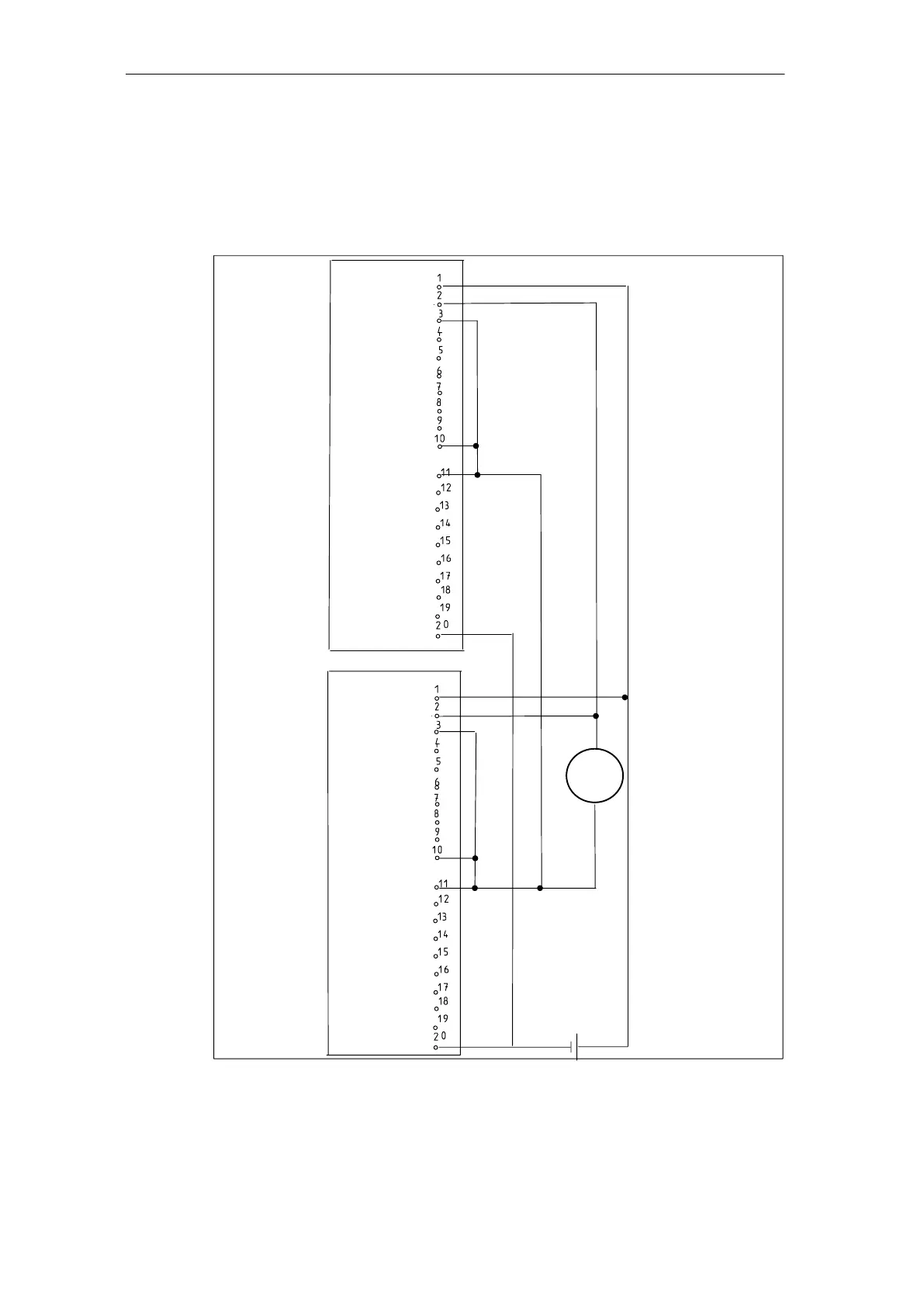

The following diagram shows the connection of a transducer to two SM 331;

AI 8 x 12 Bit. The transducer is always connected to Channel 1.

L+

24V

Transducer

+/–10 V

Figure F-10 Connection example SM 331; AI 8 x 12 Bit
