5.4.17 Printing the Safety Program
To print all the important project data, proceed as follows:
1. Select the program folder (e.g. "S7 Program") in SIMATIC Manager.
2. Choose the Options > Edit Safety Program menu command. The "Safety
Program – S7 Program" dialog box appears.

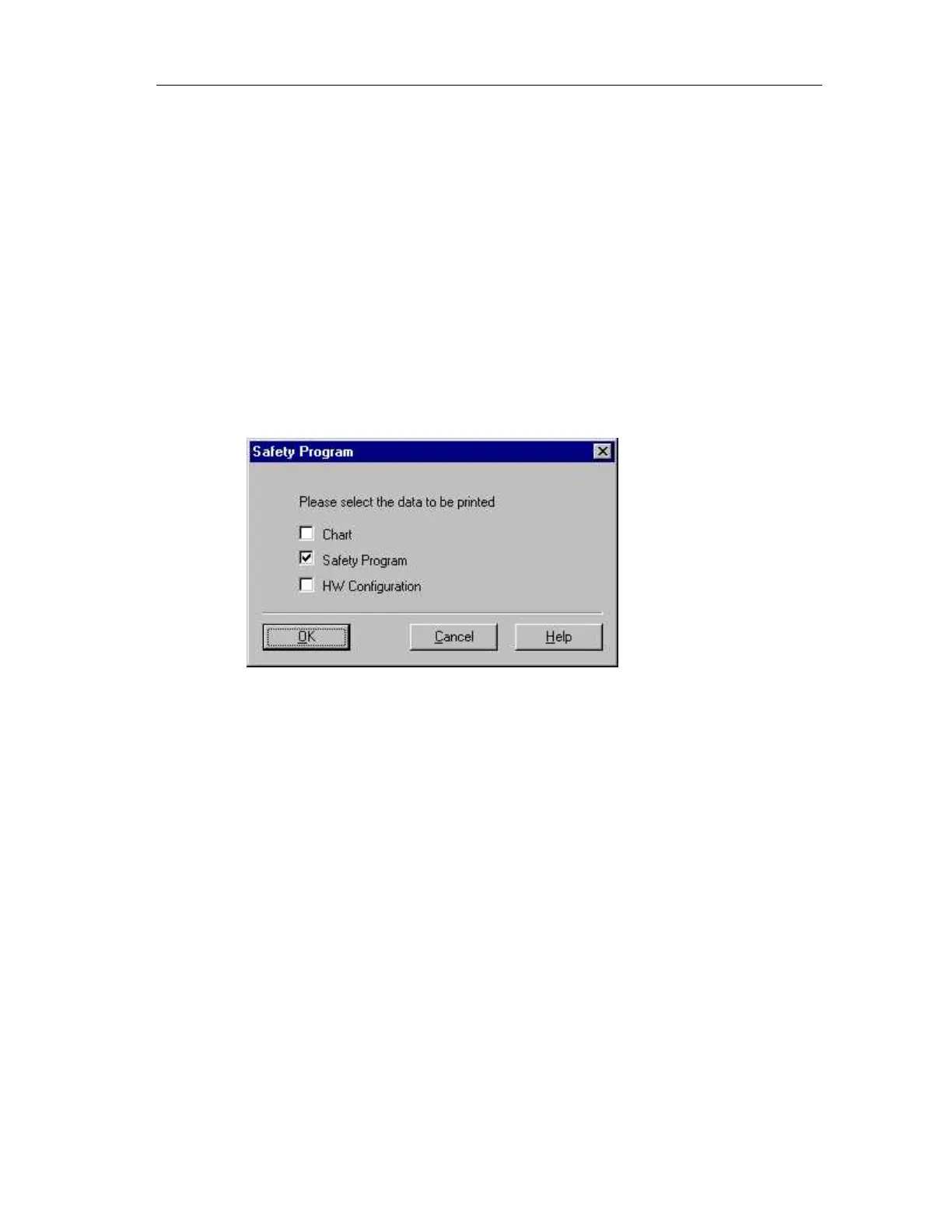

3. Press the "Print" button. You can then select the parts of the project that you
want to print:
- The CFC charts
- The fail-safe program (all F-blocks and all data blocks from the F-run-time
groups).
- The hardware configuration with the module parameters
• Chart data: all the charts of the program are printed graphically
• Safety Program data, printed report contains:
- Offline/Online report status
- Safety Program name
- Current Safety Program datestamp and overall signature (of Safety
Program blocks in the Safety Program block folder)
- Reference program datestamp and overall signature
- Blocks in the Safety Program (as shown in the dialog list box)
- Safety-related parameter values
- The document footer on each page shows:
- The current release version of the F-System software
- The overall signature (of Safety Program blocks in the CFC).
• Hardware Configuration: all or part of the hardware configuration. The Print
dialog will appear to allow you to specify what module information to print.
