Siemens SIMATIC TDC User Manual

Signal modules
5.1 SM500 signal module
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
109
The Switches S1.7 / S1.8 and S2.7 / S2.8 are without function.

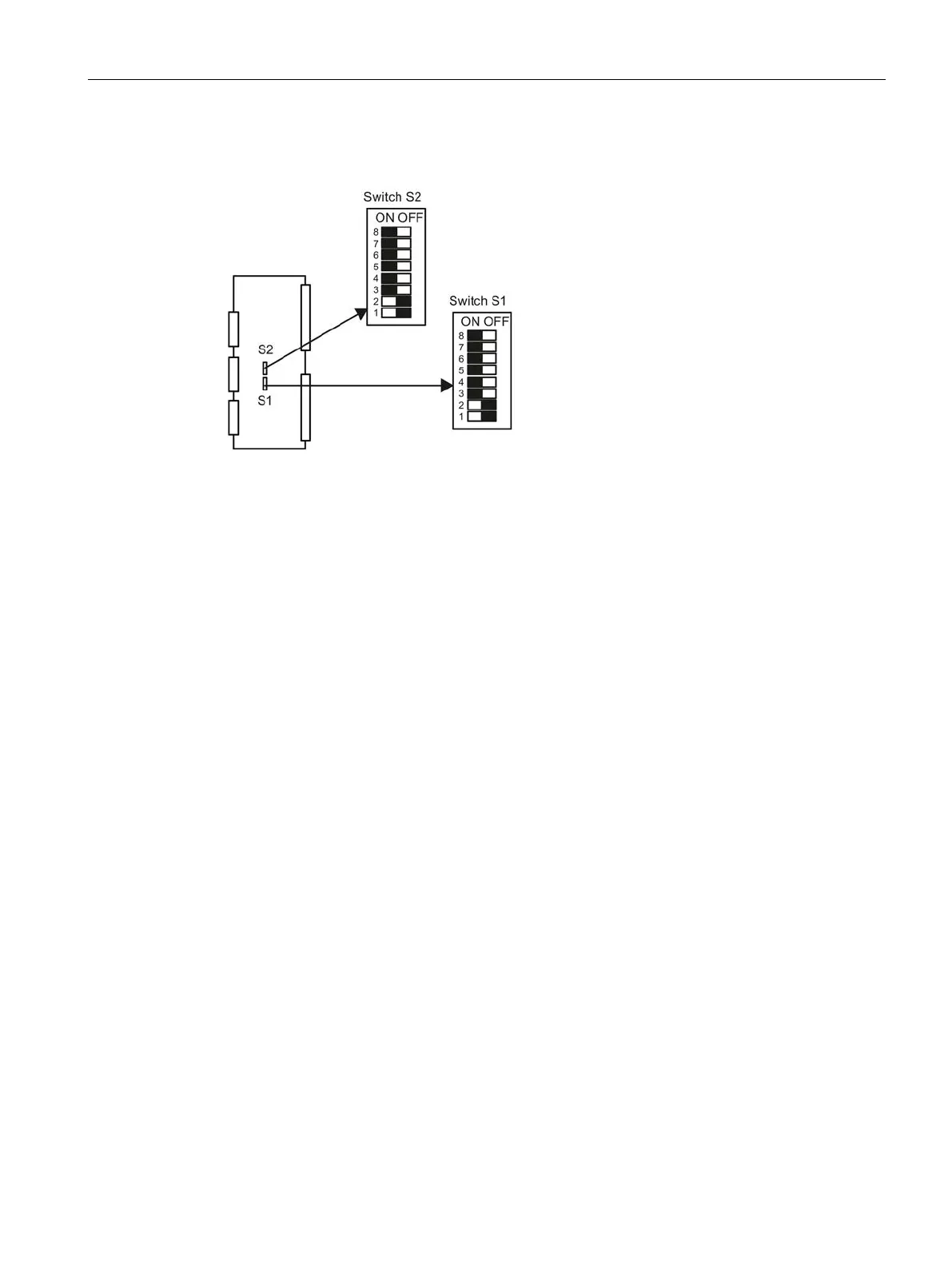

Position of switches S1 and S2 on the module
Switches S1 and S2 for setting the threshold
for incremental encoders
(see encoder synchronization)
