Communication modules
6.6 CP53M0 coupling module
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
165
CP53M0 is parameterized in HW Config for operation in master mode (default). In this mode,
two slave modules can be connected to CP53M0 (CS22 or CP53M0 (parameterized as
slave)).
Example 1
Connecting two SIMADYN D CS22 modules to CP53M0
One CS22 is connected to each of the FOC connectors X1/X2 or X3/X4 in a SIMADYN D
rack.

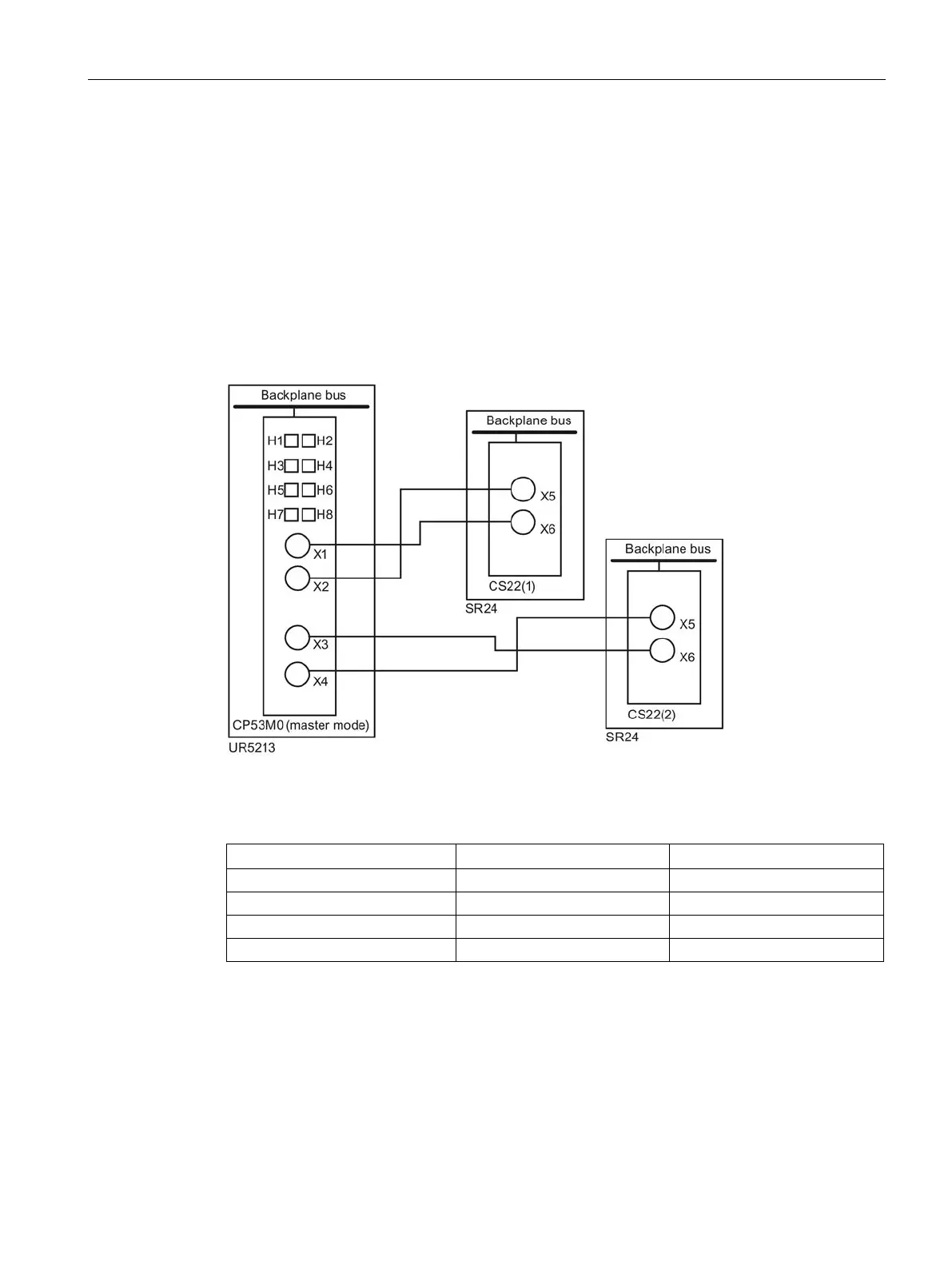

Figure 6-16 Options for connecting the CS22 to CP53M0 that is operating in master mode
Table 6- 22 Pin assignment of two CS22 on a CP53M0
