Siemens SIMATIC TDC User Manual

Communication modules
6.6 CP53M0 coupling module
SIMATIC TDC hardware
166 System Manual, 08/2017, A5E01114865-AL
Example 2
Coupling SIMATIC TDC racks
CP53M0 can be used to couple up to three SIMATIC TDC racks. In this case, CP53M0 is
parameterized for operation in master mode in one rack and in slave mode in the other two
racks.

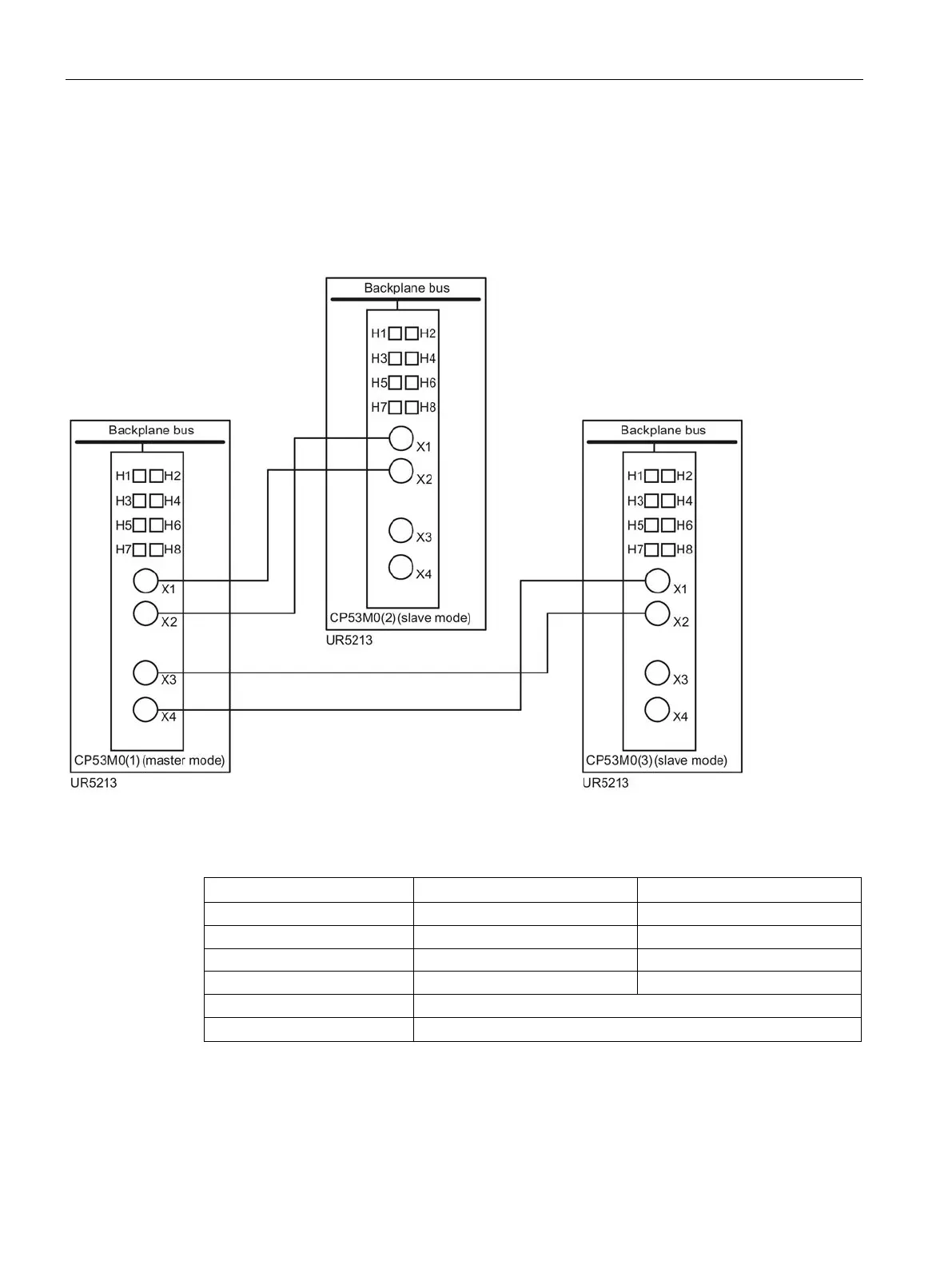

Figure 6-17 Coupling three SIMATIC TDC racks
Table 6- 23 Options of connecting two CP53M0 slaves to a CP53M0 master
CP53M0 (1)
CP53M0 (2)
CP53M0 (3)
X1
X2
X2 X1
X3
X2
X4
X1
X3 (no function)
X4 (no function)
