3.3 Rack UR5213 (6DD1682-0CH0)
SIMATIC TDC hardware
66 System Manual, 08/2017, A5E01114865-AL
3.3
Rack UR5213 (6DD1682-0CH0)
3.3.1
Areas of application
Rack UR5213 with 21 slots forms the mechanical base for SIMATIC TDC and features an
integrated system power supply and integrated system fans. A high-performance 64-bit
backplane bus supports high-speed data exchange between the inserted modules.
3.3.2
Mechanical layout

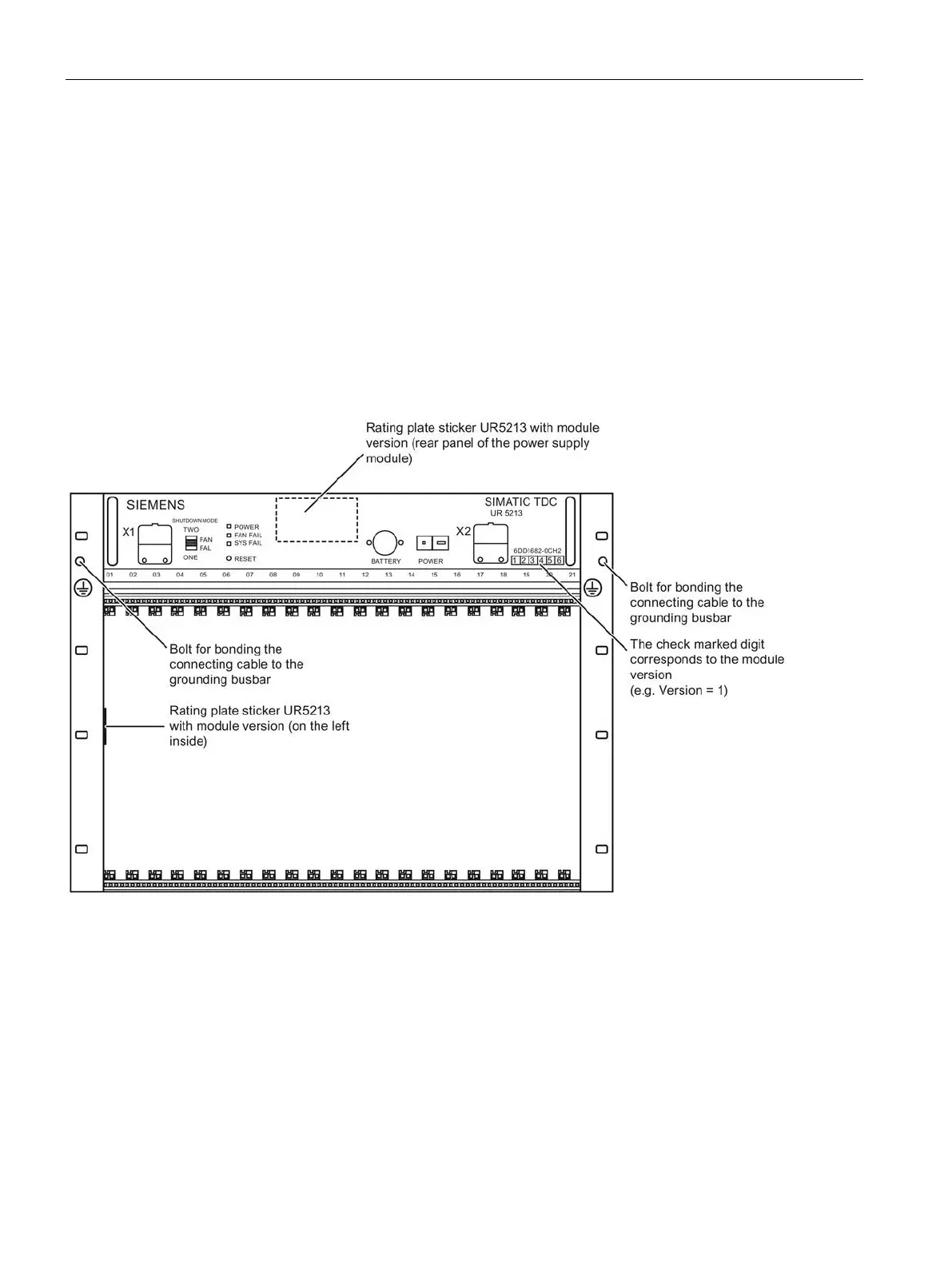

Figure 3-7 Rack UR5213 (front view)
PS5213 power supply
The power supply with three fans is inserted and screw mounted in the upper section of the
rack.
