Interface module
7.3 Interface module SB61
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
193
Other information
For more information on EMC and environmental conditions, refer to section "General
technical specifications (Page 37)"!

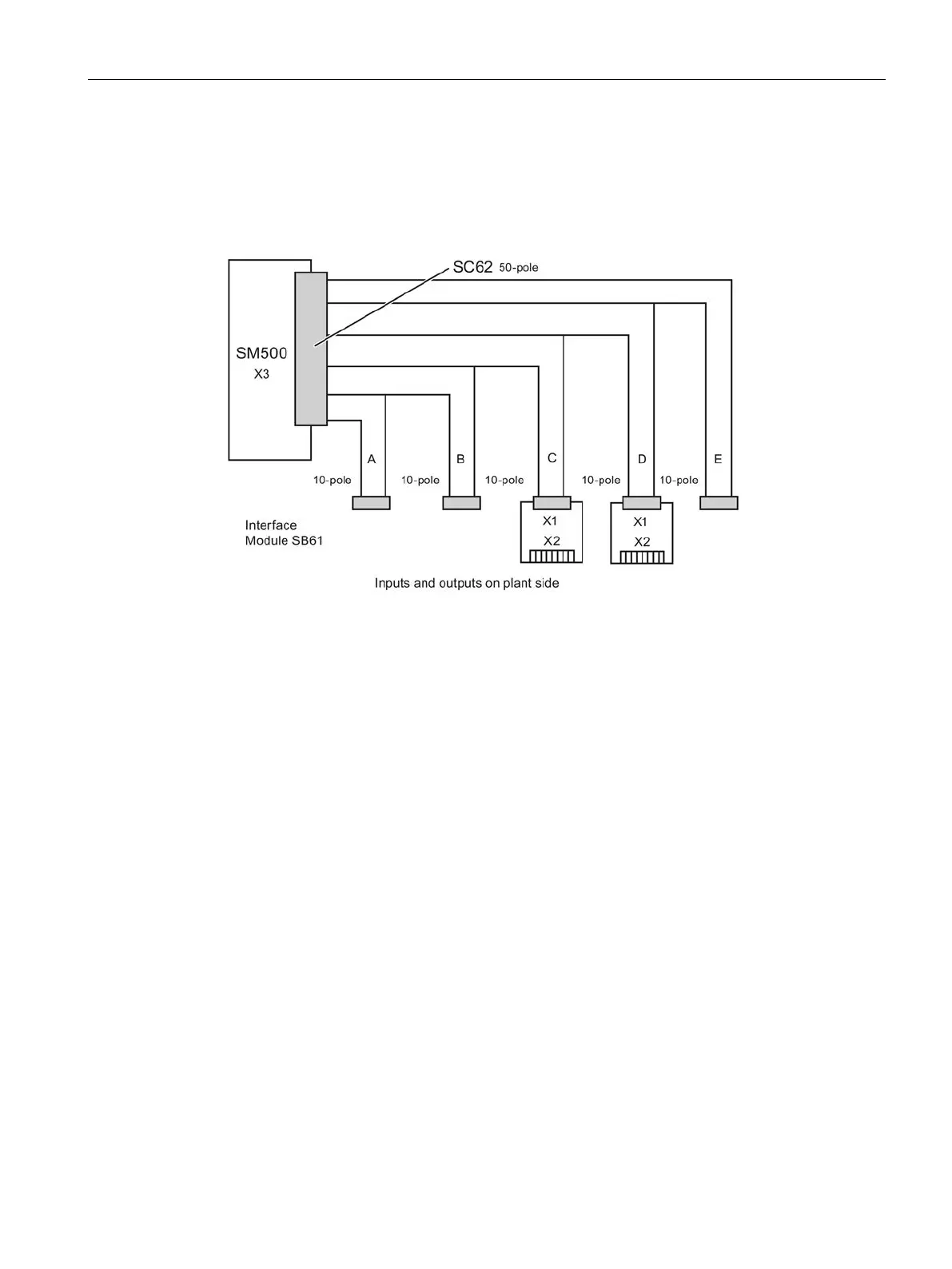

The following figure shows a typical application:
Figure 7-7 Application example of an SB61 interface module on digital I/O module SM500
