Interface module
7.5 Interface module SB71
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
207
The following figure shows a typical application:

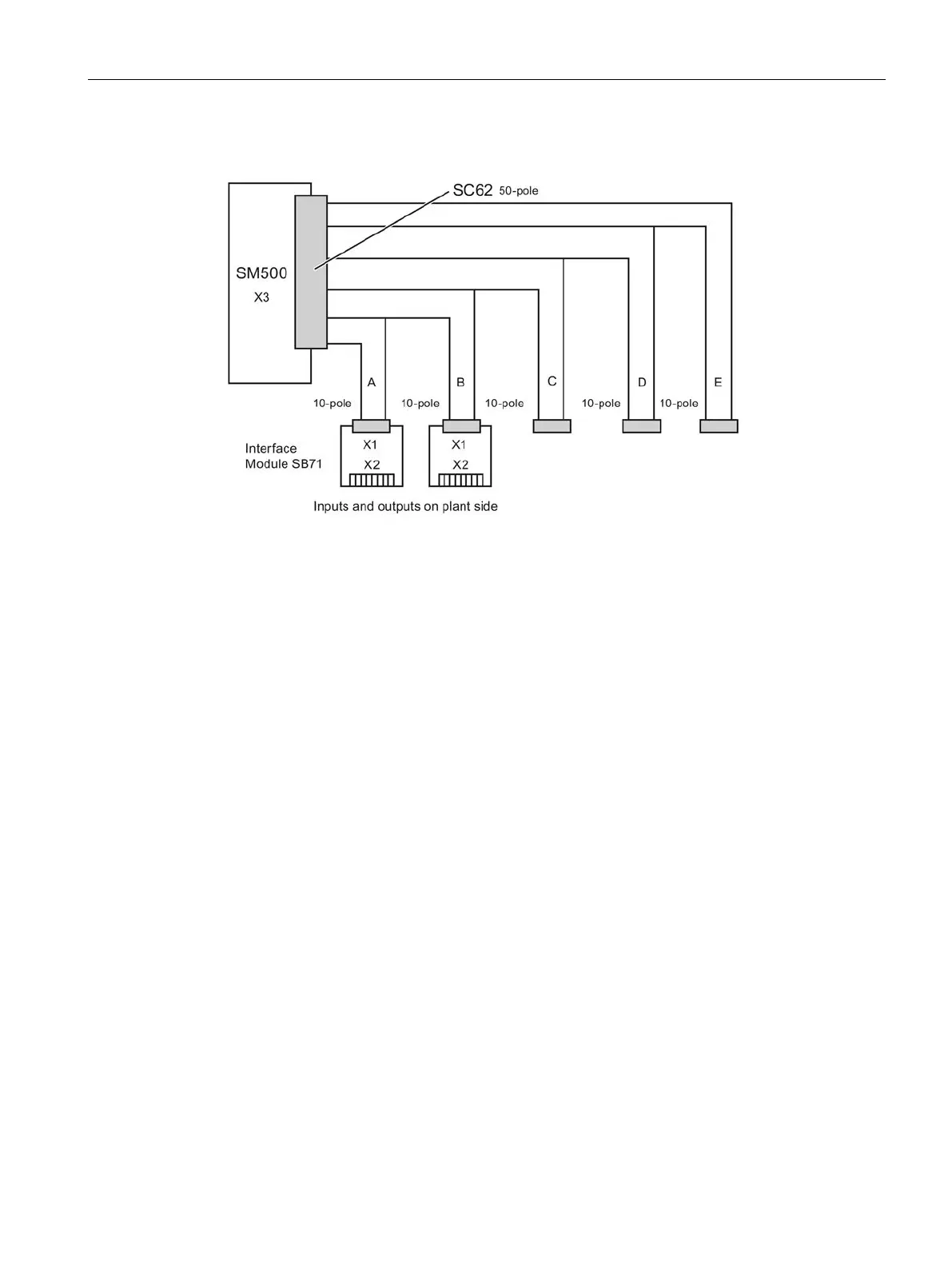

Figure 7-11 Application example of an SB71 interface module on digital I/O module SM500
