Installation and EMC guidelines
1.10 Control cabinet
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
21

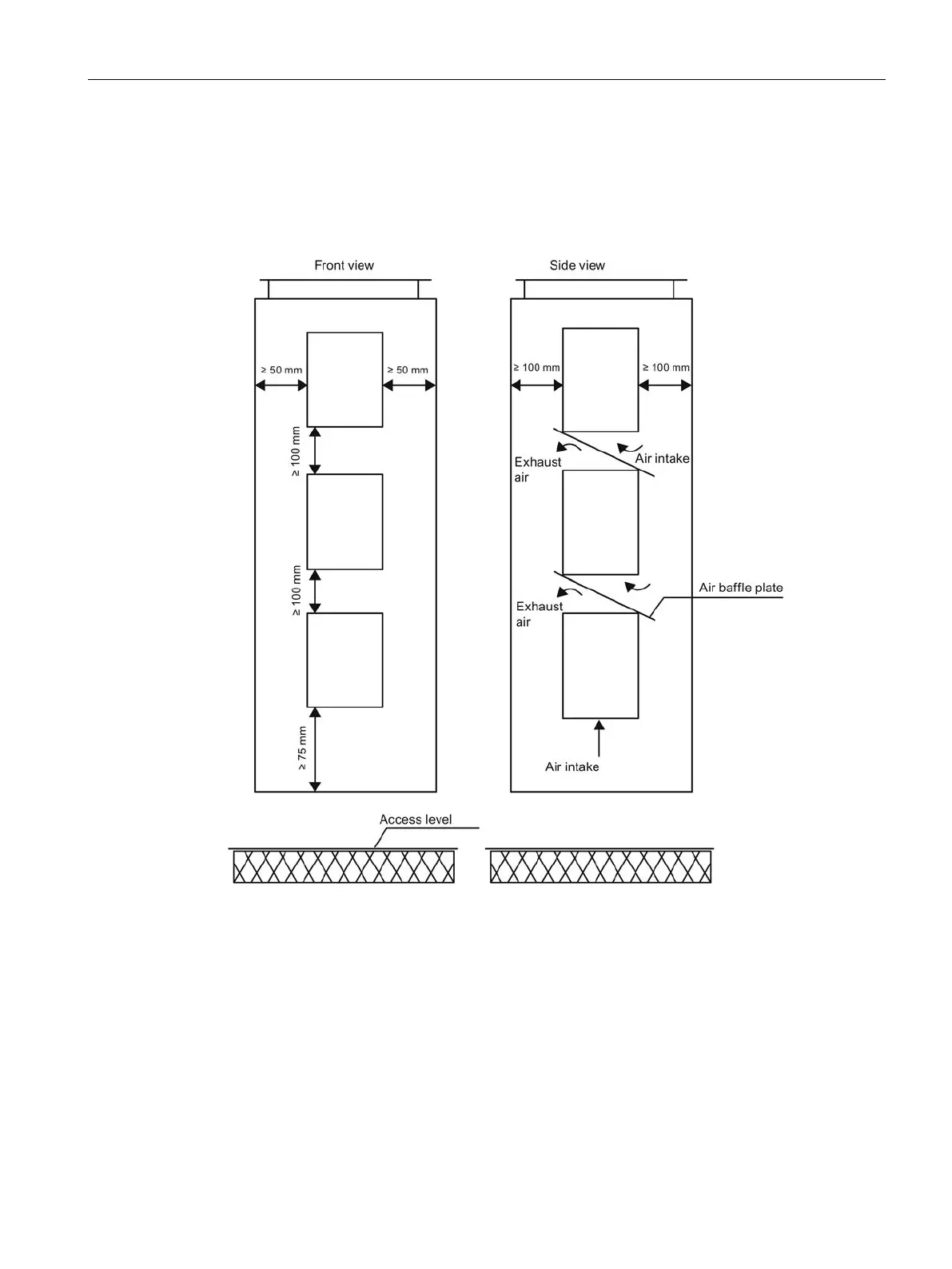

Arrangement and clearances
The following minimum dimensions must be maintained for stacked installations of
SIMATIC TDC racks:
e.g. control cabinet 2200 x 600 x 600 mm
