Siemens SIMATIC TDC - Page 215

Interface module
7.6 Interface modules SU12 und SU13
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
215
SU13

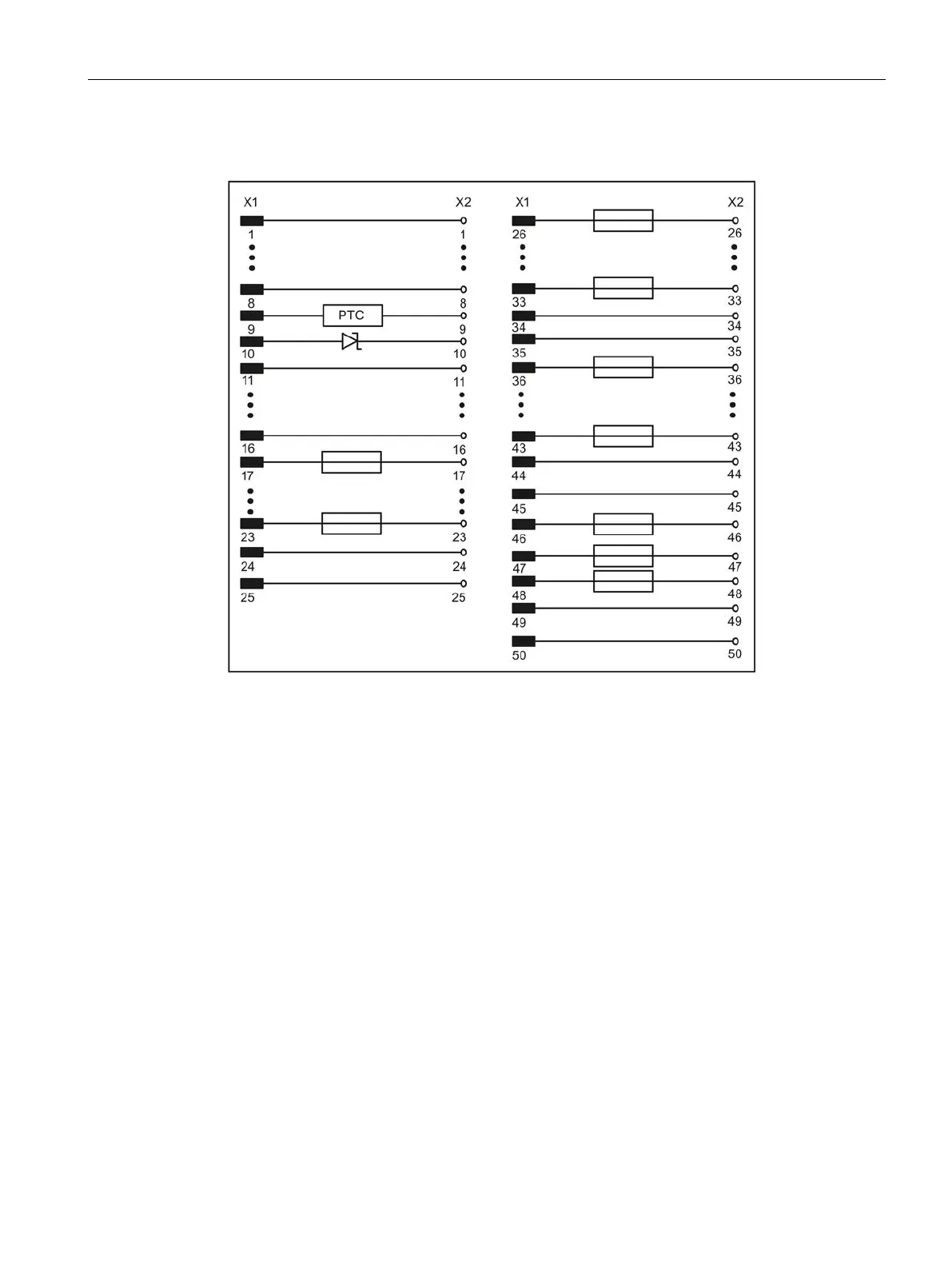

Figure 7-14 SU13 circuit diagram
The components are described in chapter Function description (Page 212).
