Installation and EMC guidelines
1.11 Equipotential bonding
SIMATIC TDC hardware
24 System Manual, 08/2017, A5E01114865-AL

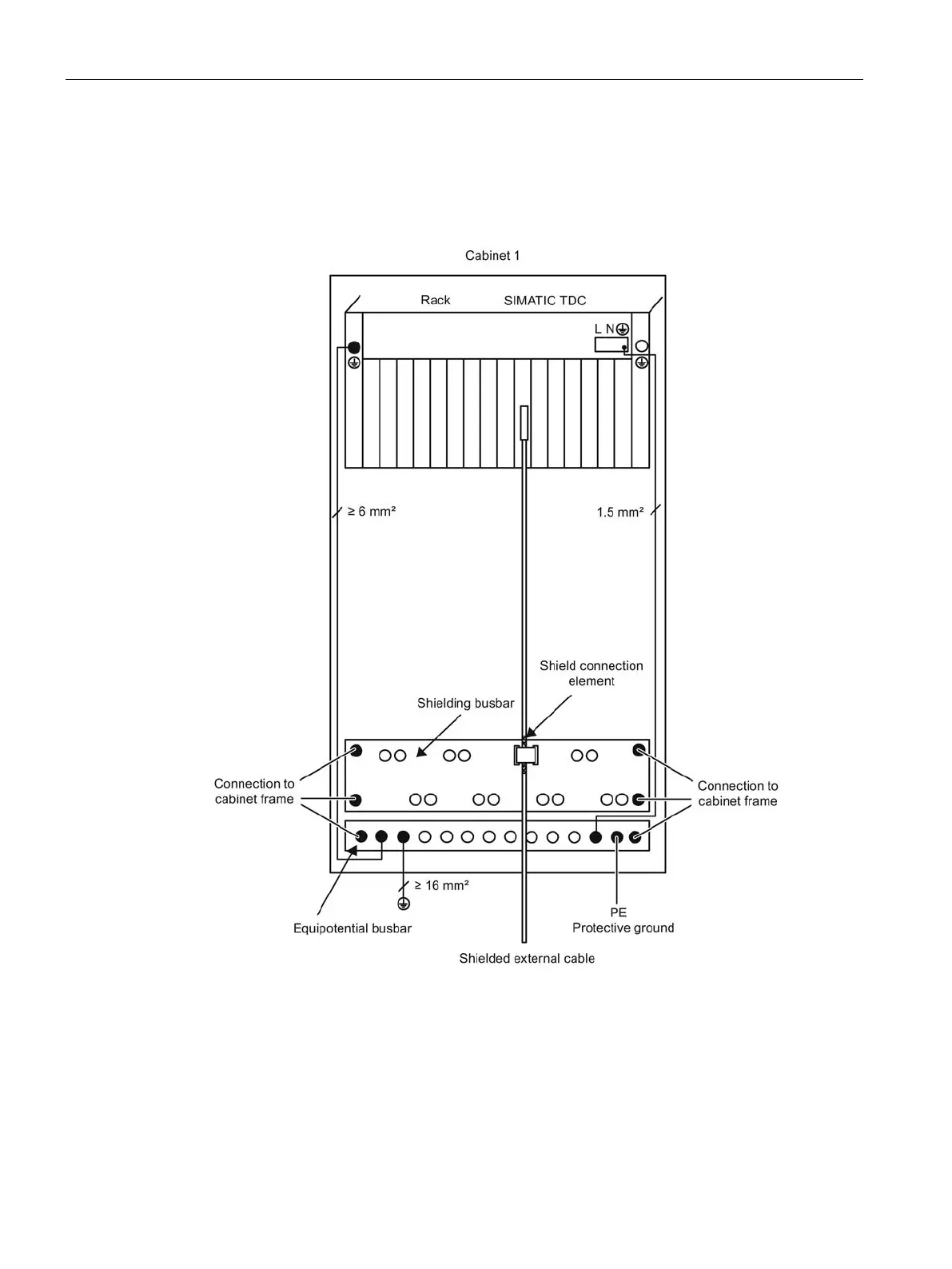

Practical application examples
Termination of an external shielded cable
The shield must be connected to the shielding bus.
