Installation and EMC guidelines
1.14 Power supply
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
31

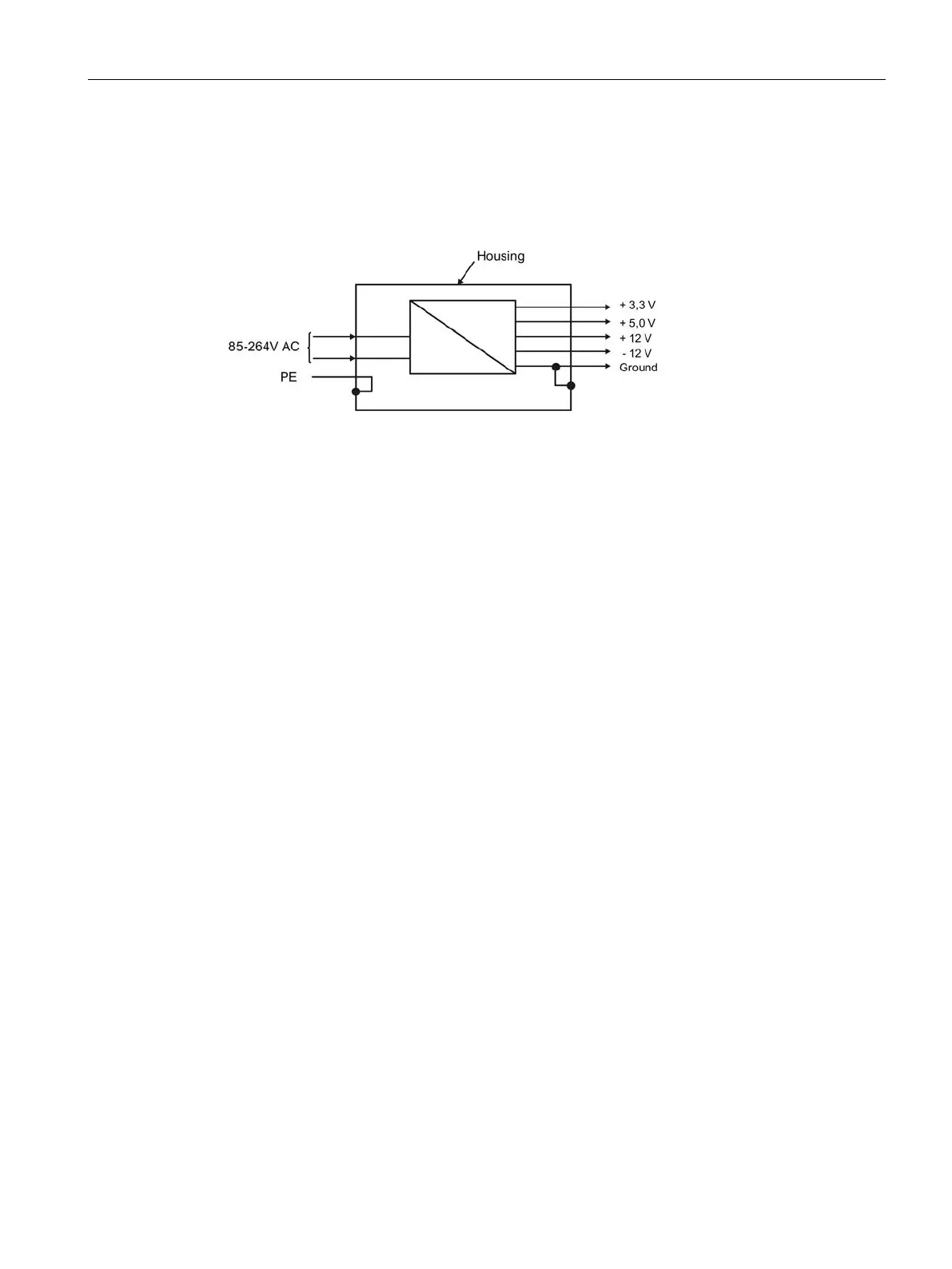

Potentials of power supply
In SIMATIC TDC, the ground connections of all secondary voltages are grouped and bonded
to the rack enclosure in order to improve the signal to interference ratio and to ensure proper
grounding.
