Installation and EMC guidelines
1.16 Cables
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
33
Design and temperature resistance
All cables must be made of copper and be able to resist temperatures of up to at least 90 °C.

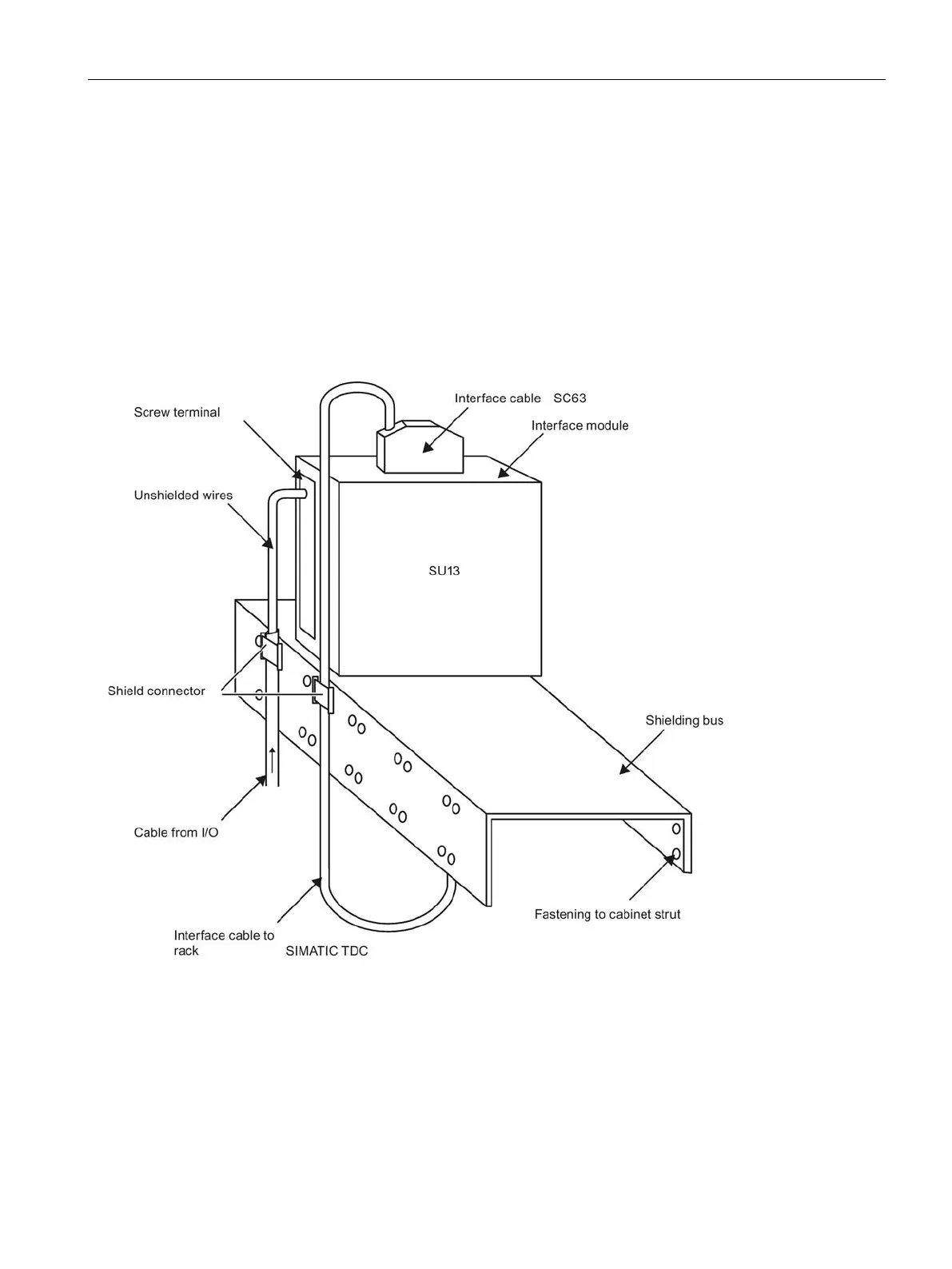

Connection via interface module
If interface modules are used, the shields of system-side cables and of routed the interface
module to SIMATIC TDC must be bonded to ground directly above or below the interface
module. Unshielded conductors that are terminated to screw terminals should be kept as
short as possible.
All lines should be kept as short as possible.
