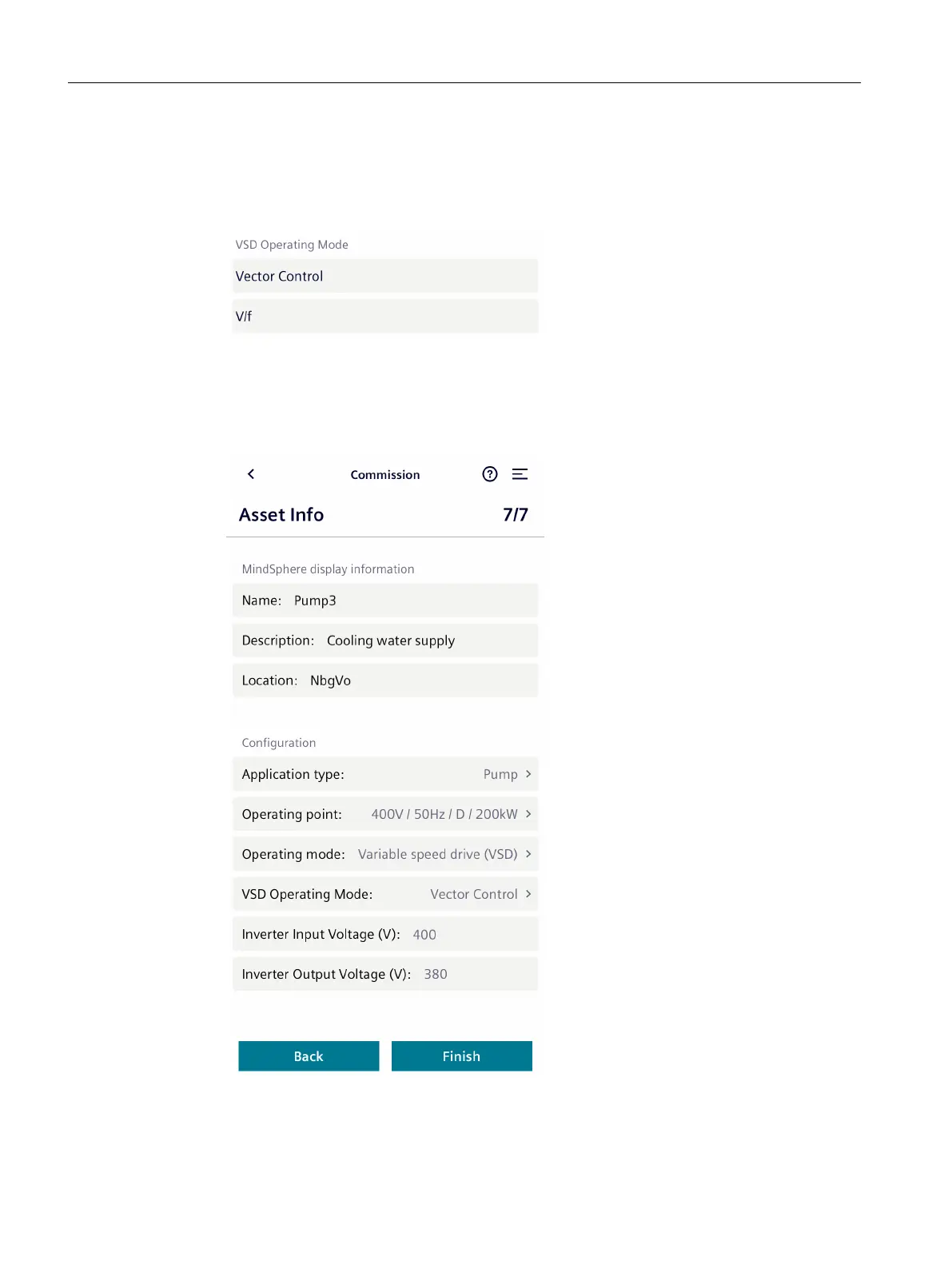

5. When selecting "variable speed drive (VSD)", select one of the following control modes.
– Vector control
– U/f control
If you are not certain when making the selection, or if the converter is not operated in one
of the specied control modes, then select U/f.
6. Enter the inverter input voltage (V). The inverter output voltage (V) is determined when
entering the inverter input voltage.
Commissioning
6.3Commissioning with iOS
SIMOTICS CONNECT 400
102 Operating Instructions, 04/2023, A5E50161952B AL
