5.2 Mounting the connectivity module
For easier handling while mounting on the motor, we recommend rst screwing the
connectivity module to the mounting bracket. The battery is not contacted in the delivered
condition.
Mounting elements

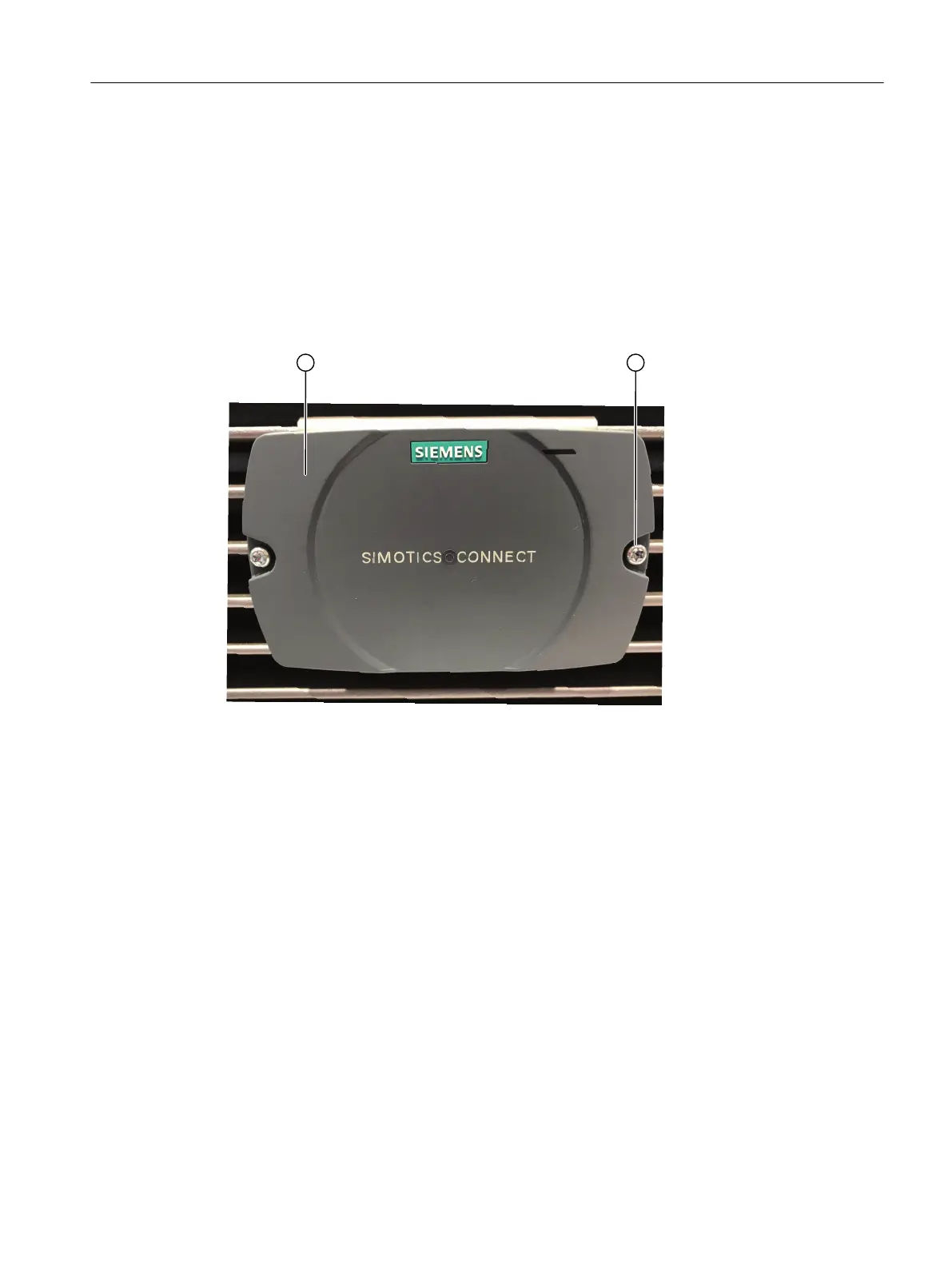

The following gures provide an overview of the relevant mounting elements of the connectivity
module in the closed and open condition:
① Front cover
② Cover fastening screws
Mounting and installation
5.2Mounting the connectivity module
SIMOTICS CONNECT 400
Operating Instructions, 04/2023, A5E50161952B AL 35
