Result

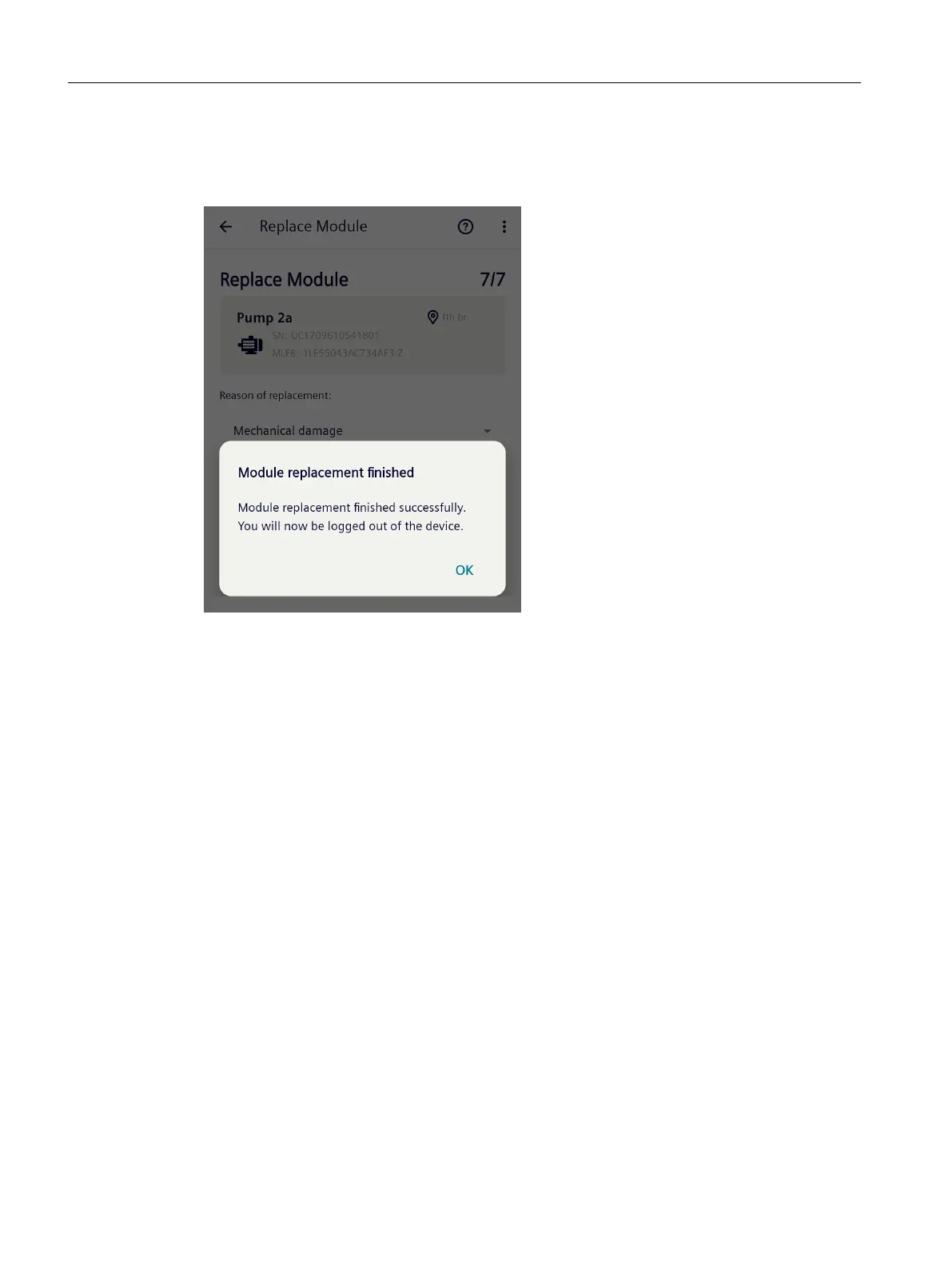

The following message is displayed after the module has been successfully replaced.
After commissioning has been completed, you are automatically logged o from the device
and the Bluetooth connection is disconnected.
The connectivity module starts to record data and transfer data in the preselected intervals.
After the rst measurements, a rst connection is automatically established to SIDRIVE
IQ Fleet, which means that you can see the actual connection status shortly after
commissioning.
The connectivity module automatically starts the calibration procedure on the motor. It
requires 10 measuring cycles with the motor in the "ON" state and 10 measuring cycles
with the motor in the "OFF" state. Precise data is only displayed in SIDRIVE IQ Fleet as an
"operating state" signal after the calibration process:
Value "0": Motor o (OFF), sensor calibrated
Value "1": Motor status not dened, sensor not calibrated
Value "3": Motor on (ON), sensor calibrated
No additional measures are required to support calibration.
Maintenance
8.5Replacing the connectivity module
SIMOTICS CONNECT 400
156 Operating Instructions, 04/2023, A5E50161952B AL
