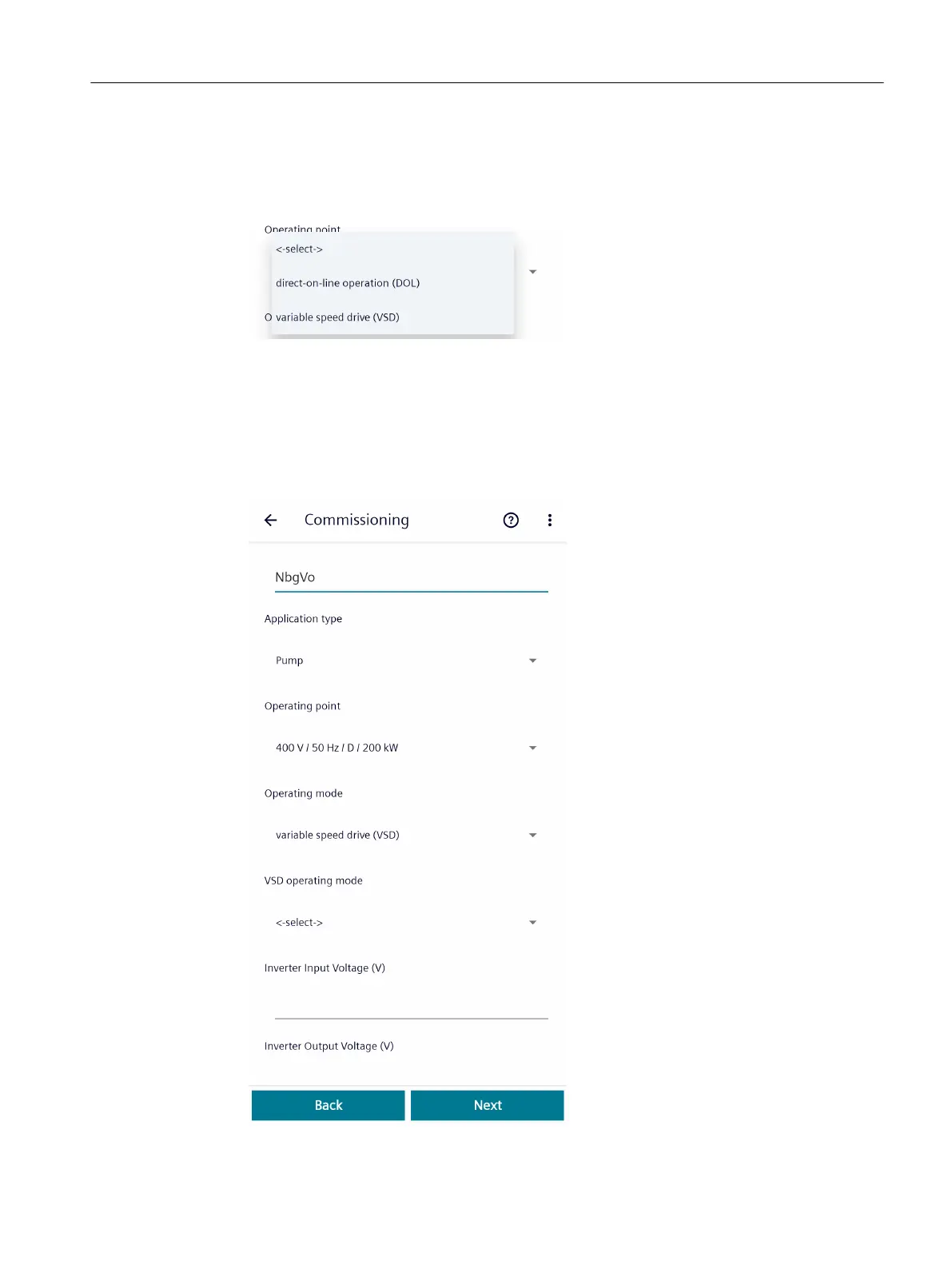

4. Select one of the following operating modes:
– Line operation - direct-on-line operation (DOL)
– Converter operation - variable speed drive operation (VSD)
When selecting "direct-on-line operation (DOL)", you can immediately continue with step 7.
When selecting "variable speed drive (VSD)", the following additional elds are displayed.
– VSD operating mode
– Inverter input voltage (V)
– Inverter output voltage (V)
Commissioning
6.2Commissioning with Android
SIMOTICS CONNECT 400
Operating Instructions, 04/2023, A5E50161952B AL 65
