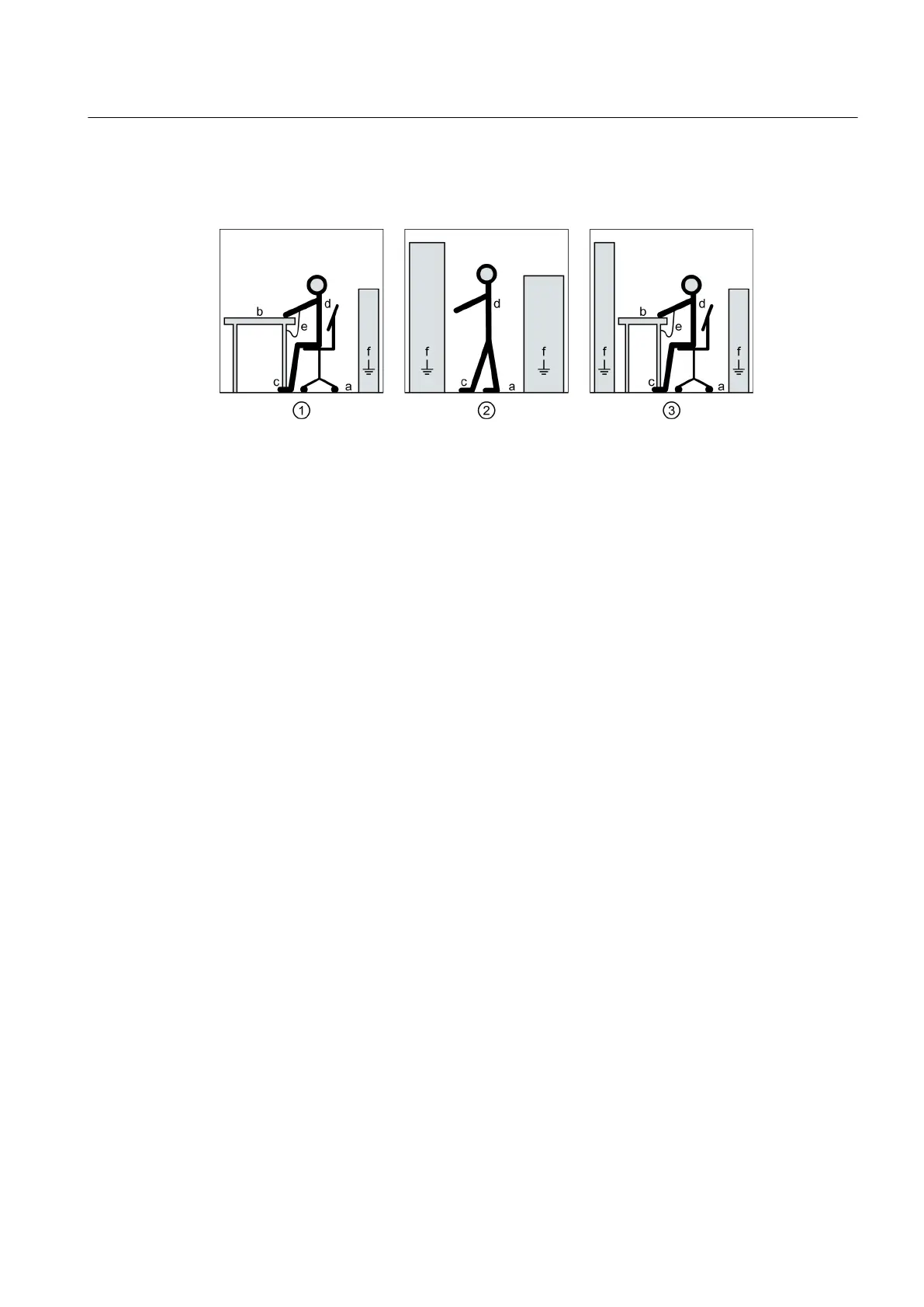

The necessary ESD protective measures for electrostatic sensitive devices are illustrated once
again in the following drawings:
(1) Sitting (2) Standing (3) Standing/sitting
a = conductive floor surface b = ESD table c = ESD shoes
d = ESD overall e = ESD wristband f = cabinet ground connection
2.6 Electromagnetic compatibility
This machine is designed in accordance with IEC/EN 60034 and, when used as prescribed, it
satisfies the requirements of European Directive 2004/108/EC - from April 20, 2016 of the
European directive 2014/30/EU on Electromagnetic Compatibility.
2.7 Interference immunity
The machine fulfills the requirements regarding interference immunity in conformity with IEC/
EN 61000‑6‑2.
On machines with integrated sensors (e.g. PTC thermistors), the manufacturer of the overall
system must himself ensure sufficient interference immunity by selecting suitable sensor signal
leads and evaluation units.
2.8 Influence on the line power supply through a strongly irregular torque
A strongly irregular torque, for example with the drive of a reciprocating motor, forces a non-
sinusoidal motor current. The emerging harmonics can have an impermissible influence on
the line power supply via the connection lines.
Safety notes
2.8 Influence on the line power supply through a strongly irregular torque
SIMOTICS DC 1GG5
Operating Instructions 02/2016 17
