10.8.1.2 Speed sensor for overhung mounting

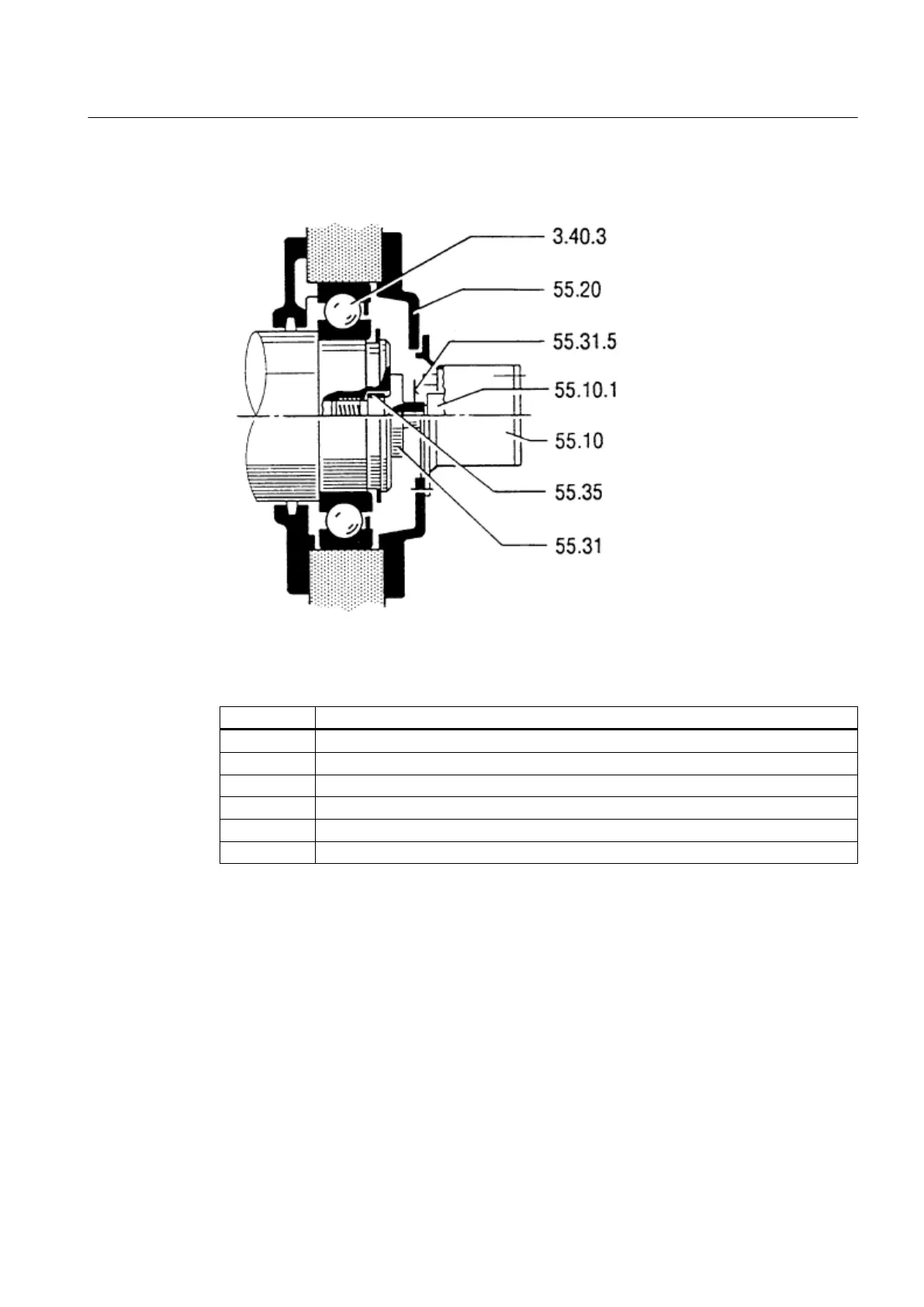

Image 10-9 Speed sensor for overhung mounting for shaft heights 180 to 630
Table 10-9 Spare parts speed sensor for overhung mounting for shaft heights 180 to 630
No. Designation
55.10 Speed sensor
55.10.1 Speed-sensor rotor
55.20 Bearing covers for speed sensor mounting
55.31 Threaded shaft journal with cylindrical hole
55.31.5 Locking screw
55.35 Tolerance ring
See also
Speed sensor for overhung mounting (Page 98)
Spare Parts
10.8 Speed sensor
SIMOTICS DC 1GG5
Operating Instructions 02/2016 113
