4.7 Torsional loading of the drive train due to faults in the electrical supply
In the event of faults in the electrical supply, such as failure of the field supply or short circuit
across terminals, excessive air gap torques can occur, which can lead to additional torsional
loads on the drive train.
WARNING
Serious damage to the machine
If the configuration does not correctly recognize the mechanical torsional loadings of the shaft
assembly, this can lead to serious damage to the machine. This can result in death, serious
injury or material damage.
When planning the system, make due allowance for the maximum air gap torques that can
occur.
Note
The system planner is responsible for the entire drive train.
4.8 Transport and storage
4.8.1 Transport markings
The packing differs depending on the transport type and size. If not otherwise contractually
agreed, the packaging corresponds to the packing guidelines for International Standards for
Phytosanitary Measures (ISPM).

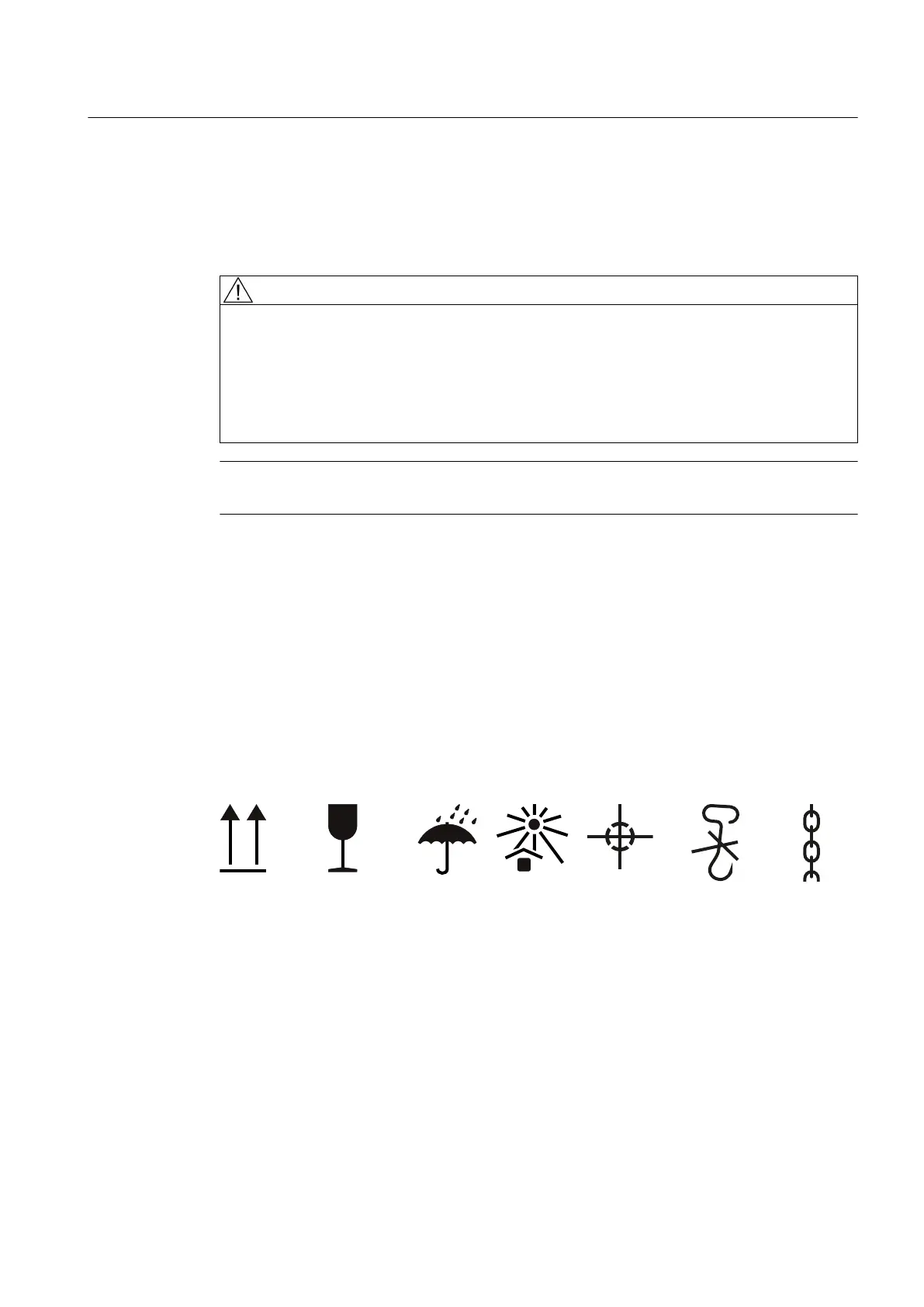

Comply with the images shown on the packaging. Their meaning is as follows:
This
way up
Fragile goods Keep dry Keep cool Center of
gravity
Do not use
hand hook
Attach here
4.8.2 Checking the delivery
The components are assembled on an individual basis. When you take receipt of the delivery,
please check immediately whether the scope of the delivery matches up with the
accompanying documents. No claims relating to defects/items missing from the delivery will
be accepted if they are submitted at a later date.
● Report any apparent transport damage to the delivery agent immediately.
● Immediately report any apparent defects/missing components to your contact partner.
Preparations for use
4.8 Transport and storage
SIMOTICS DC 1GG5
Operating Instructions 02/2016 25
