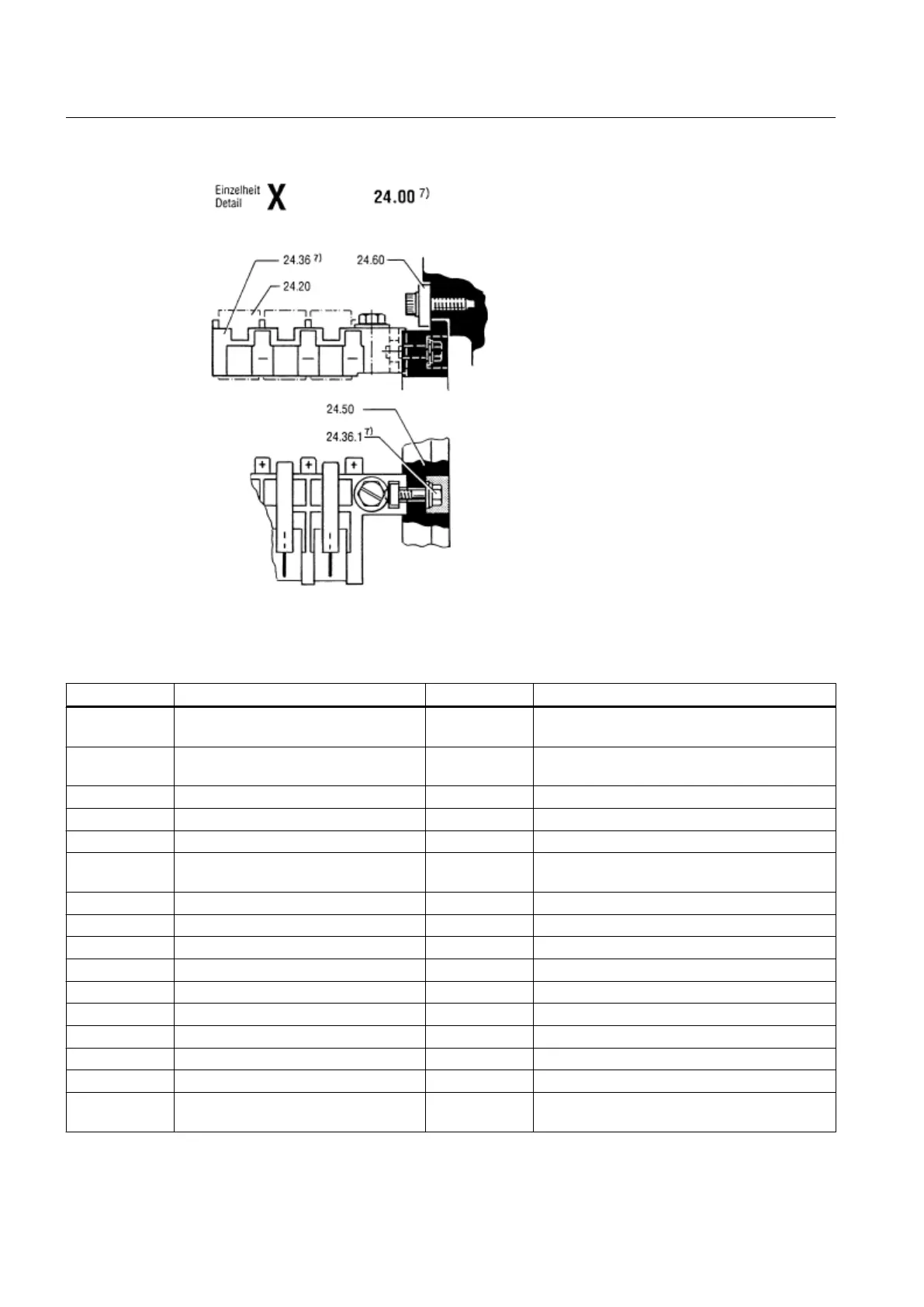

Image 10-3 Detail X brush holder 1G.6 shaft height 160
Table 10-1 Spare parts stator and rotor 1G.6, shaft height 160
No. Designation No. Designation
3.00 Rolling-contact bearing unit, locating
bearing, non-drive end
8.30 Air guide wheel, drive end
4.00 Rolling-contact bearing unit, floating
bearing, drive end
8.30.1 Tare set
5.00 Bearing shield, drive end 8.31 Balancing ring, non-drive end
5.00.1 Rating plate 8.31.1 Tare set
5.41 Louvered cover 8.60 Commutator
6.00 Bearing shield, non-drive end 10.02 Stator frame complete with main and commu‐
tating coil resistors
6.00.1 Set screw 10.16 Grounding connection
6.00.2 Set screw 10.53 Special lifting eye
6.42 Side cover 10.53.1 Sleeve
6.42.1 Seal 20.00 Terminal box
6.44 Top cover 24.00 Brushgear unit, complete
6.44.1 Seal 24.20 Carbon brushes
7.20 Fan impeller, drive end 24.36 Multiple pocket brush holder
7.20.1 Tare set 24.36.1 Fastening screw
7.80 Air baffle plate 24.50 Brush holder (brush rocker, complete)
8.00 Rotor, complete 24.60 Single-acting clamping shoes (clamp straps) for
brush holder
Spare Parts
10.4 Stator and rotor, shaft height 160
SIMOTICS DC 1GG6
108 Operating Instructions 02/2016
