10.6 External fan

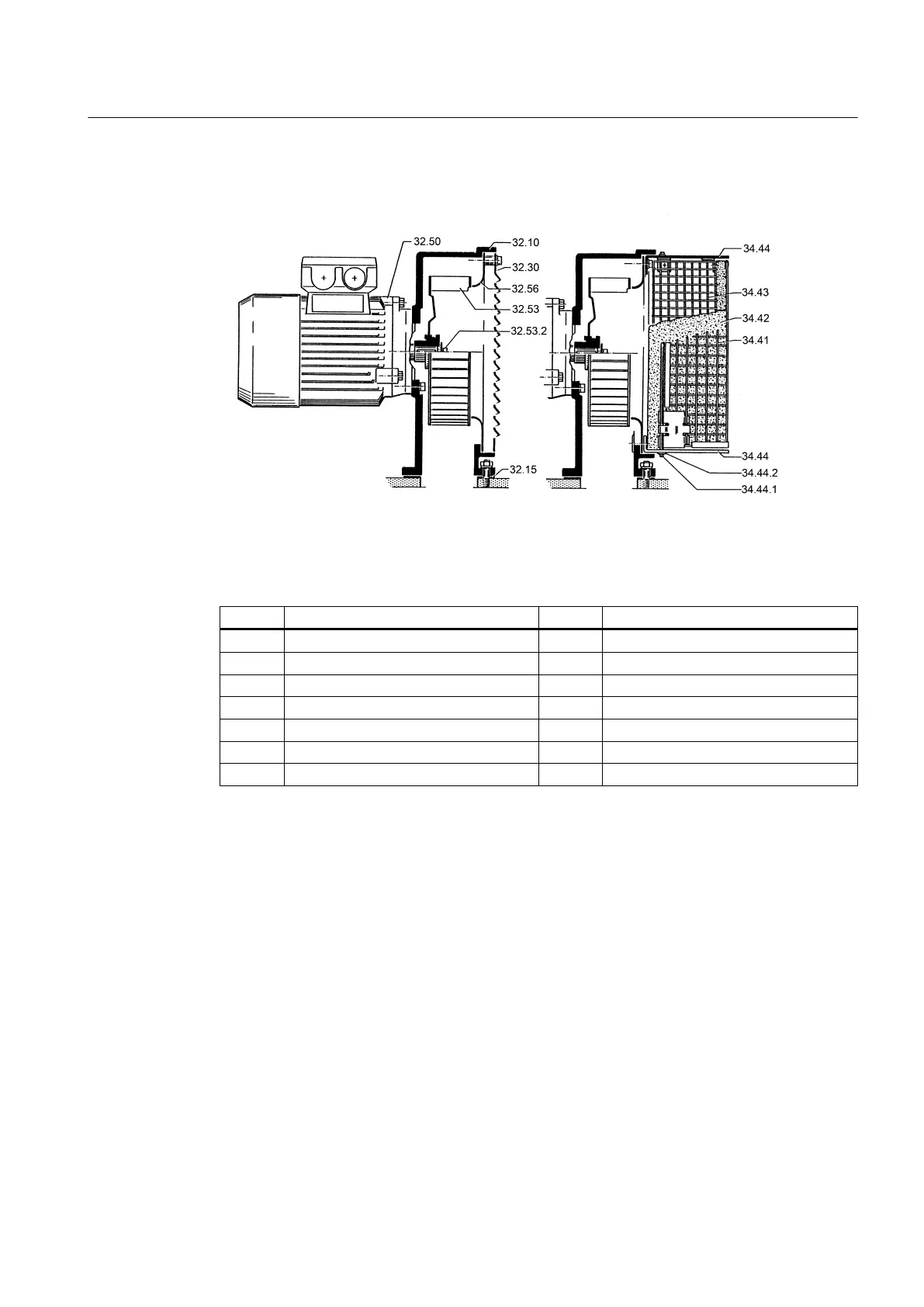

Image 10-7 External fan 1GG6

Table 10-3 Spare parts external fan 1GG6

No. Designation No. Designation

32.10 Housing 34.41 External grille cover

32.15 Seal 34.42 Filter mat

32.30 Louvered cover 34.43 Inside basket

32.50 Fan motor 34.44 Border (two-part)

32.53 Fan impeller 34.44.1 Pin

32.53.2 Washer 34.44.2 Lockwasher

32.56 Air nozzle

Spare Parts
