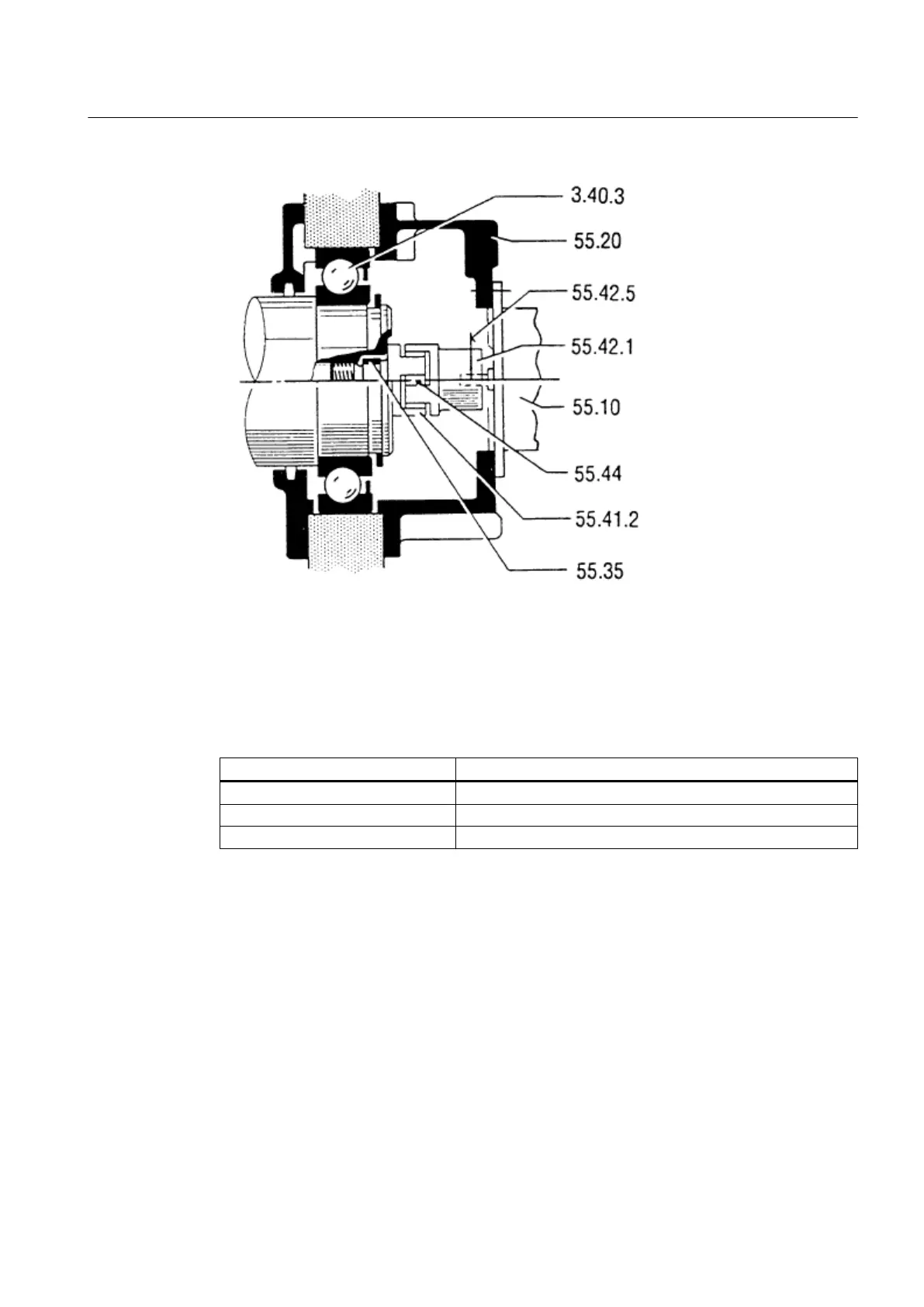

Image 9-6 Speed encoder mounting
1. If the coupling at the speed encoder end has been separated, use removable LOCTITE
to secure the lateral stud bold or set screw when the coupling is assembled and tighten
with the correct torques.
Table 9-7 Tightening torques for mounting couplings
Thread size Tightening torque [Nm]
M4 1.3
M5 2.6
M6 4.5
1. Check the elastic connecting link (coupling star) to ensure that it is in a good condition and
in the correct mounting position.
2. Mount the complete speed encoder.
Maintenance
9.2 Repair
SIMOTICS DC 1GG6
Operating Instructions 02/2016 103
