Siemens SIMOTICS DC 1GG6 - 1 XB7700 Terminal Box; Image 10-10 1 XB7700 Main Terminal Box

10.8.2 1XB7700 terminal box

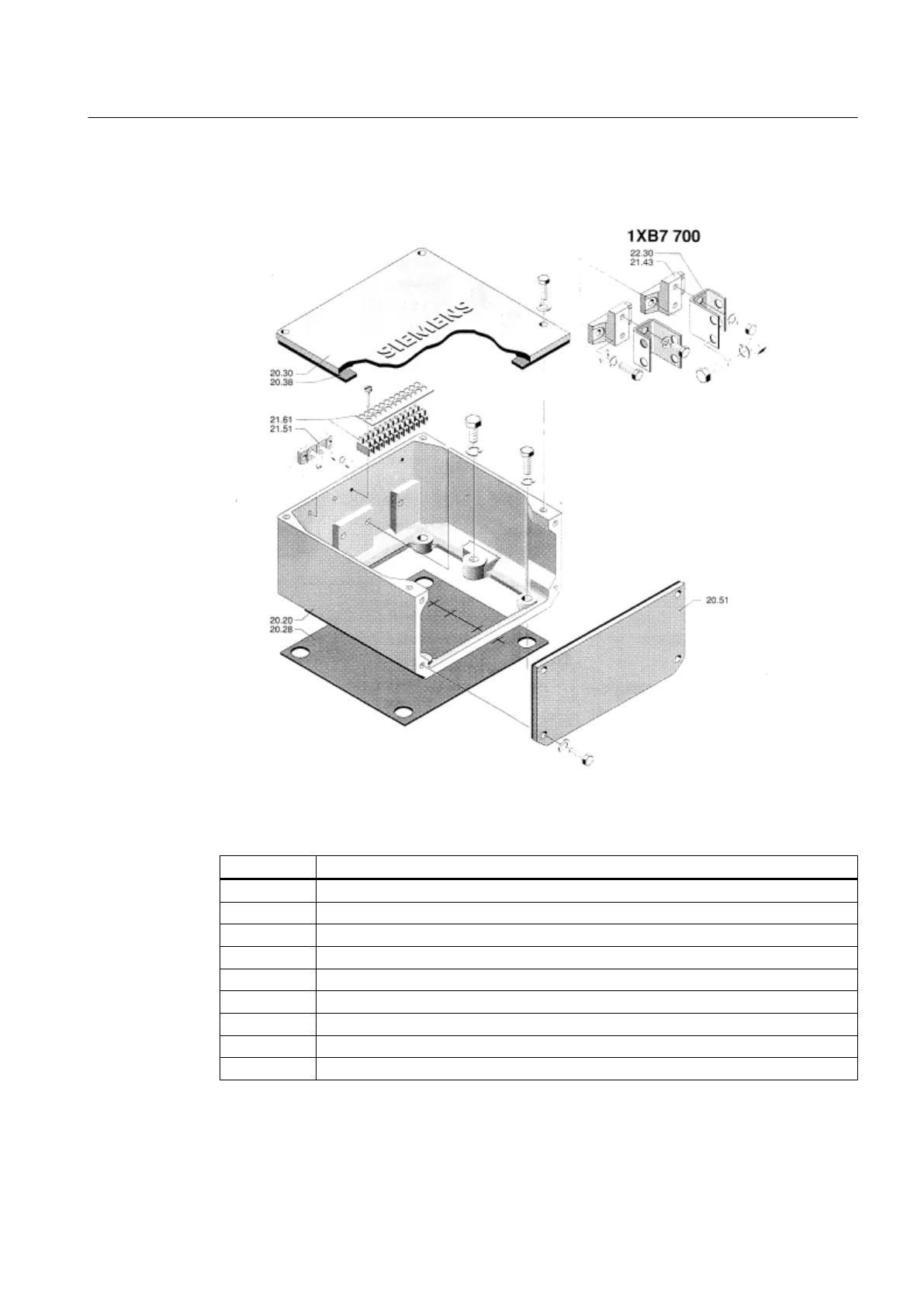

Image 10-10 1XB7700 main terminal box
Table 10-16 Spare parts main terminal box 1XB7700
No. Designation
20.20 Housing
20.28 Seal
20.30 Cover
20.38 Seal
20.51 Entry plate
21.43 Post insulator
21.51 Terminal post insulator for auxiliary circuit
21.61 Terminal strip for auxiliary circuit
22.30 Connection busbar for power circuit
Spare Parts
10.8 Terminal boxes
SIMOTICS DC 1GG6
Operating Instructions 02/2016 125
