Siemens SIMOTICS DC 1GG6 User Manual

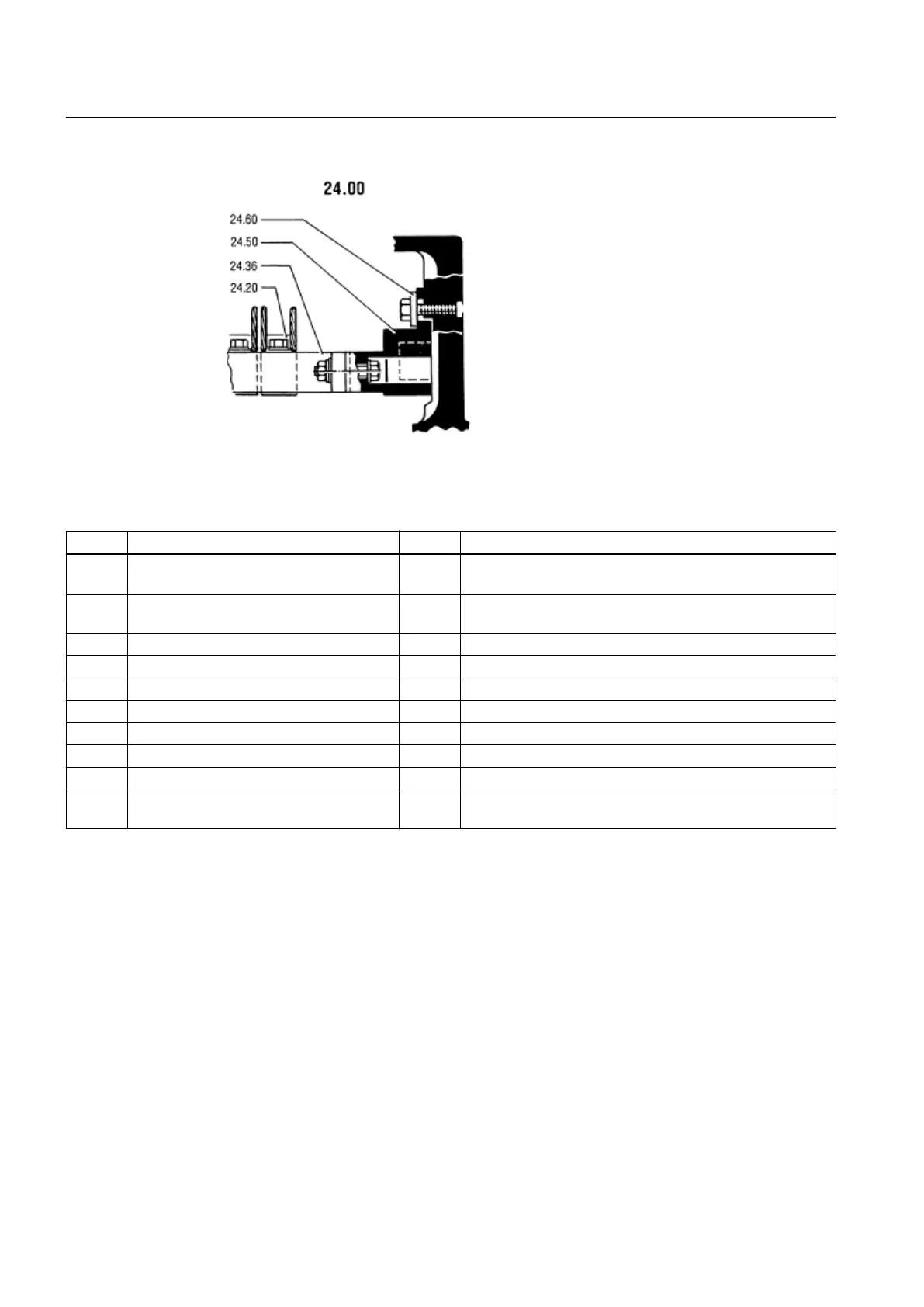

Image 10-6 Detail X brush holder 1G.6, 1H.6 shaft heights 180 to 200
Table 10-2 Spare parts stator and rotor 1G.6, 1H.6, shaft heights 180 to 200
No. Designation No. Designation
3.00 Rolling-contact bearing bush (locating
bearing)
8.60 Commutator
4.00 Rolling-contact bearing bush (floating
bearing)
10.02 Stator frame with main and commutating coil resistors
5.00 Bearing shield, drive end 10.16 Grounding connection
5.41 Louvered cover 10.53 Special lifting eye
5.45 Cover with seal 20.00 Terminal box
6.00 Bearing shield, non-drive end 24.00 Brushgear unit, complete
6.18 Fixing lug for grounding 24.20 Carbon brushes
6.43 Cover with seal 24.36 Multiple pocket brush holder
6.45 Cover with seal 24.50 Brush holder (brush rocker, complete)
8.00 Rotor, complete 24.60 Single-acting clamping shoes (clamp straps) for brush hold‐
er
Spare Parts
10.5 Stator and rotor, shaft heights 180 to 280
SIMOTICS DC 1GG6
110 Operating Instructions 02/2016
