10.9.2.3 Speed sensor for construction type IM B5

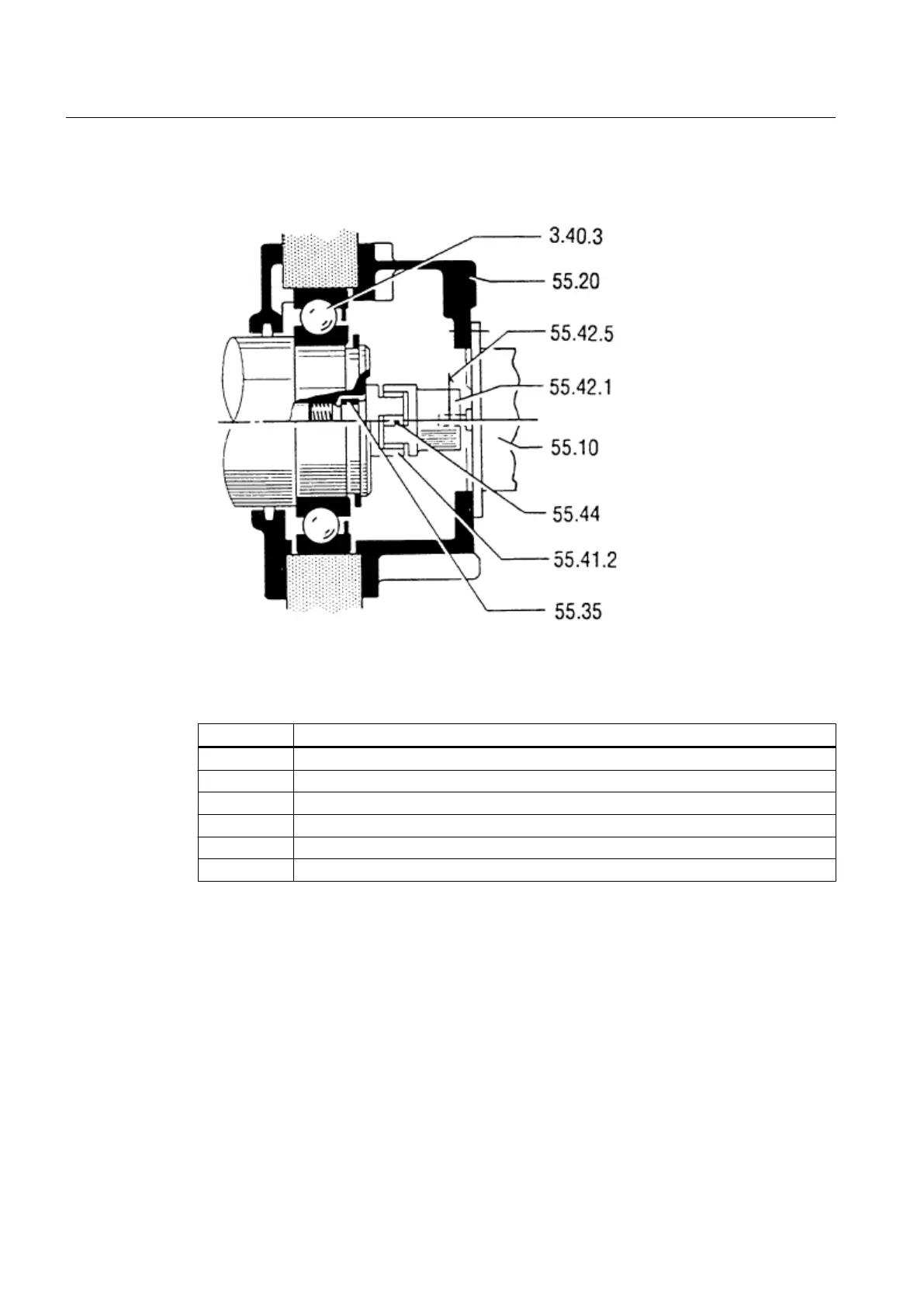

Image 10-19 Speed sensor for construction type IM B5 for shaft heights 180 to 630

Table 10-25 Spare parts speed sensor for construction type IM B5 for shaft heights 180 to 630

No. Designation

55.10. Speed sensor

55.20 Bearing covers for speed sensor mounting

55.35 Tolerance ring

55.42.1 Coupling halves at speed-sensor end for cylindrical speed-sensor shaft

55.42.5 Locking screw

55.44 Coupling star

See also

Speed sensor for construction type IM B5 (Page 102)

Spare Parts

10.9 Speed sensor

SIMOTICS DC 1GG6

134 Operating Instructions 02/2016
