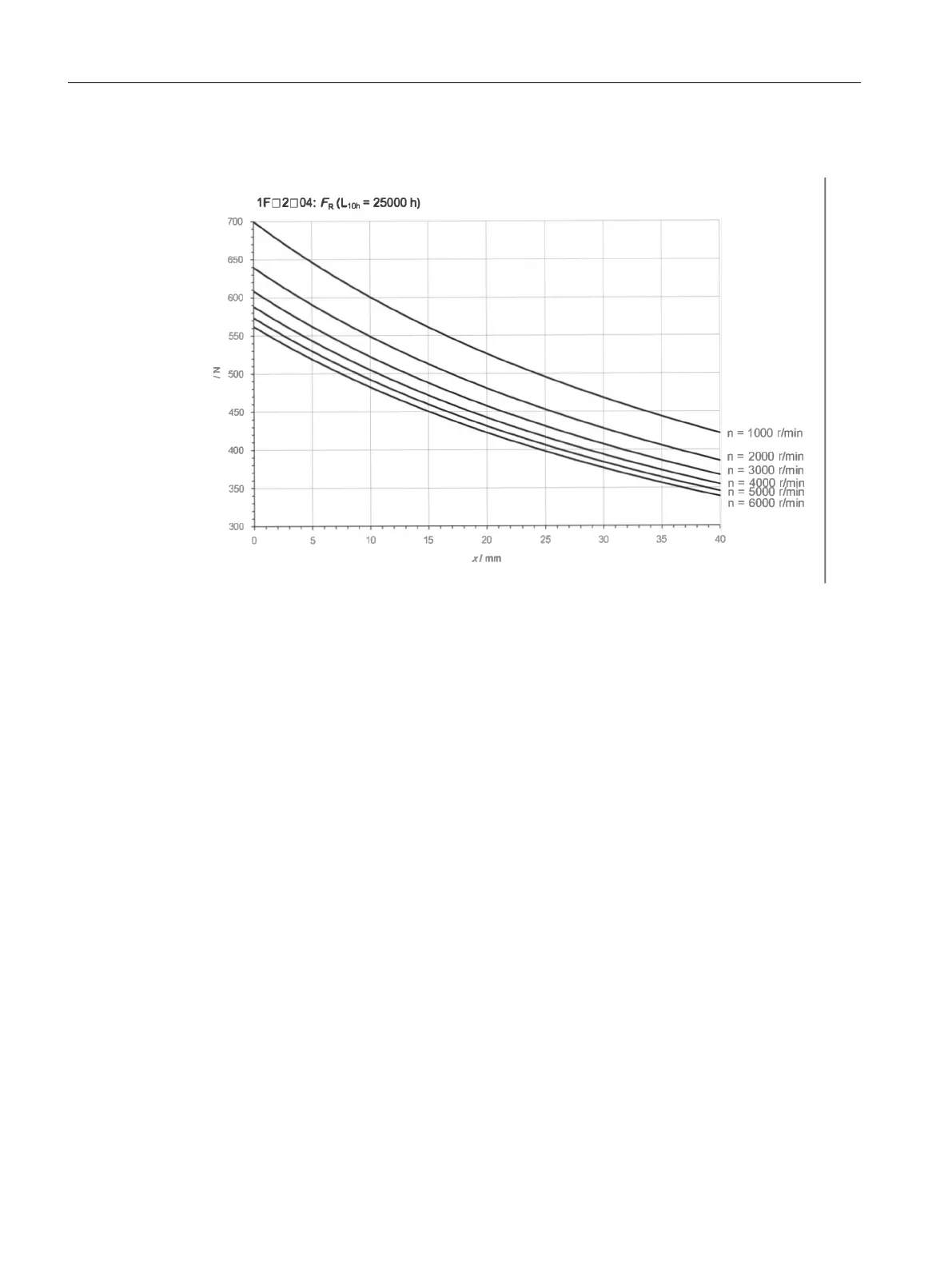

Radial force diagram 1F☐2☐04
Figure 3-3
Maximum permissible radial f
orce
F
R
at a distance x from the shaft shoulder for a nominal
bearing life
time of 25000 h.
Mounting and options
3.4 Permissible radial and axial f
orces
SIMOTICS S-1FK2 sync
hronous mot
or
s for SINAMICS S120
38
Operating Instructions, 02/2022, A5E46089564B AD
39
41
Table of Contents
Introduction
5
Table of Contents
9
Fundamental Safety Instructions for the SIMOTICS Documentation
13
Fundamental Safety Instructions
13
General Safety Instructions
13
Equipment Damage Due to Electric Fields or Electrostatic Discharge
18
Security Information
18
Residual Risks of Power Drive Systems
19
Description of the Motors
21
Use for the Intended Purpose
21
Technical Characteristics and Ambient Conditions
22
Directives and Standards
22
General Technical Features
25
Ambient Conditions
26
Degree of Protection
27
Noise Emission
28
Derating Factors
28
Structure of the Article Number
32
Rating Plate Data
34
Mounting and Options
35
Safety Symbols on the Motor
35
Shaft Extension
36
Bearing Version
37
Permissible Radial and Axial Forces
38
Thermal Motor Protection
46
Encoder
47
Cooling
48
Holding Brake
49
Types and Modes of Operation of the Holding Brakes
49
Technical Specifications
50
Preparing for Use
53
Shipping and Packaging
53
Transportation and Storage
54
Transport
54
Storage
57
Mounting
59
Safety Instructions
59
Checklists Prior to Mounting
61
Mounting Instructions
62
Mounting the Feather Key
64
Mounting the Drive Elements
65
Vibration Response
66
Connecting
69
Safety Instructions
69
Permissible Line System Types
70
System Integration
71
Connection Notes
71
Motor Connection
71
Rotating the Connector on the Motor
72
Line Connection
74
Signal Connection
74
Connecting to a Converter
75
Selecting and Connecting Cables
75
Handling the Quick-Action Locking
79
Commissioning
83
Safety Instructions
83
Checklists for Commissioning
86
Commissioning Procedure
88
Switching on and Switching off
89
During Operation
91
Stoppages
92
Faults and Their Rectification
93
Maintenance
95
Safety Instructions
95
Inspection and Maintenance
98
Service and Inspection Intervals
98
Cleaning
99
Motor Replacement on Reaching the Bearing Life
99
Repair, Replacing the Motor
100
Decommissioning and Disposal
103
Safety Instructions
103
Decommissioning, Removing the Motor
104
Disposal
105
Technical Data and Characteristics
107
Dimension Drawings
109
Dimension Drawing 1F☐2☐03
109
Dimension Drawing 1F☐2☐04
110
Dimension Drawing 1F☐2105
111
Dimension Drawing 1F☐2205
112
Dimension Drawing 1F☐2☐06
113
Dimension Drawing 1F☐2208
114
Dimension Drawing 1F☐2210
115
