7. If you are using a motor that is not equipped with a DRIVE‑CLiQ interface, select the
encoder order number in the "Encoder Selection via Motor Order Number" dialog box.

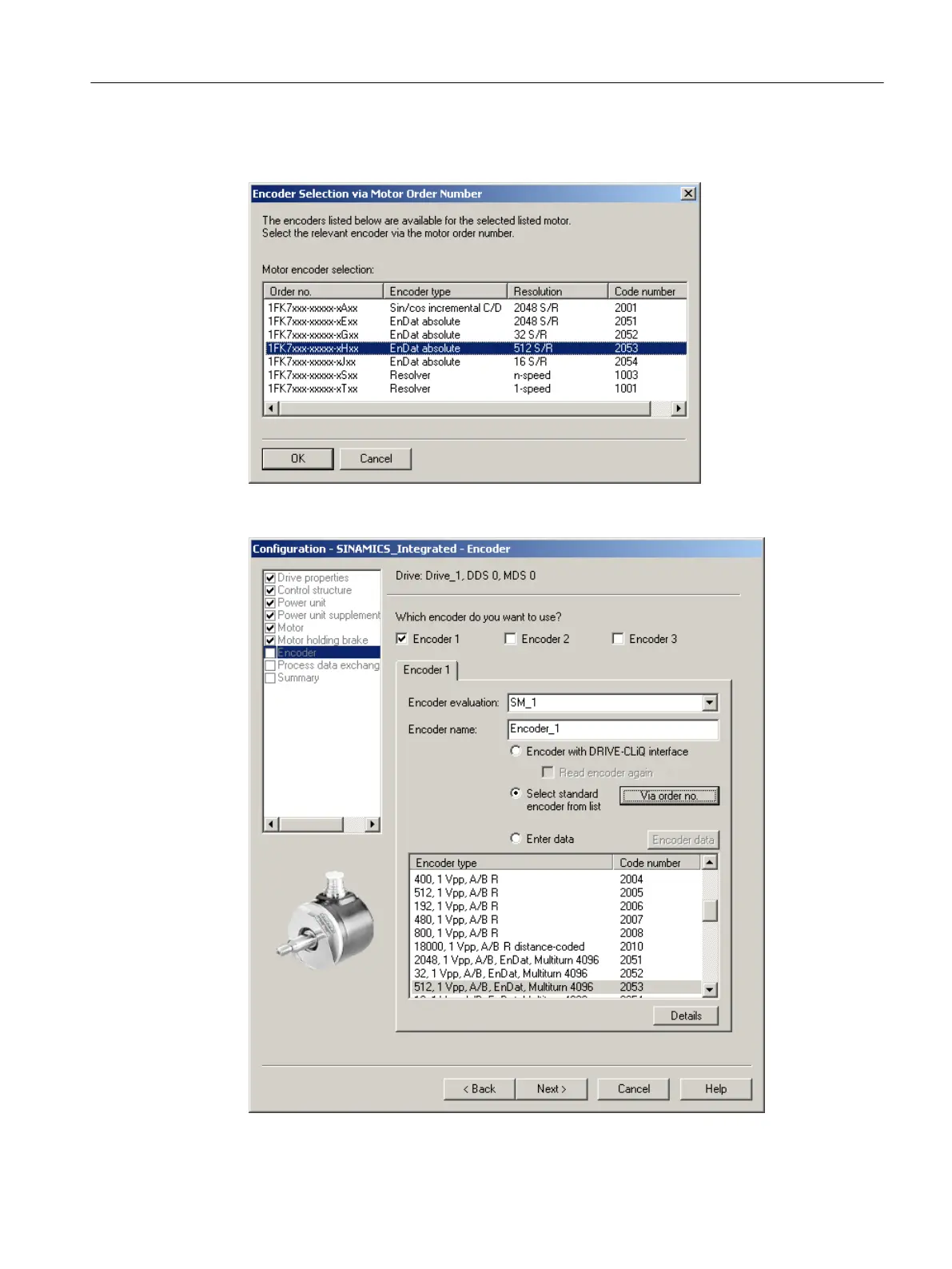

Figure 7-7 Selecting a motor encoder (1)
Figure 7-8 Selecting a motor encoder (2)
Commissioning (software)
7.2 Performing an offline configuration
SIMOTION D410-2
Commissioning and Hardware Installation Manual, 01/2015 153
