8. The communication for the control of the SINAMICS drive is configured in the following
dialog
box. It is recommended that these settings be made automatically by the engineering
system.

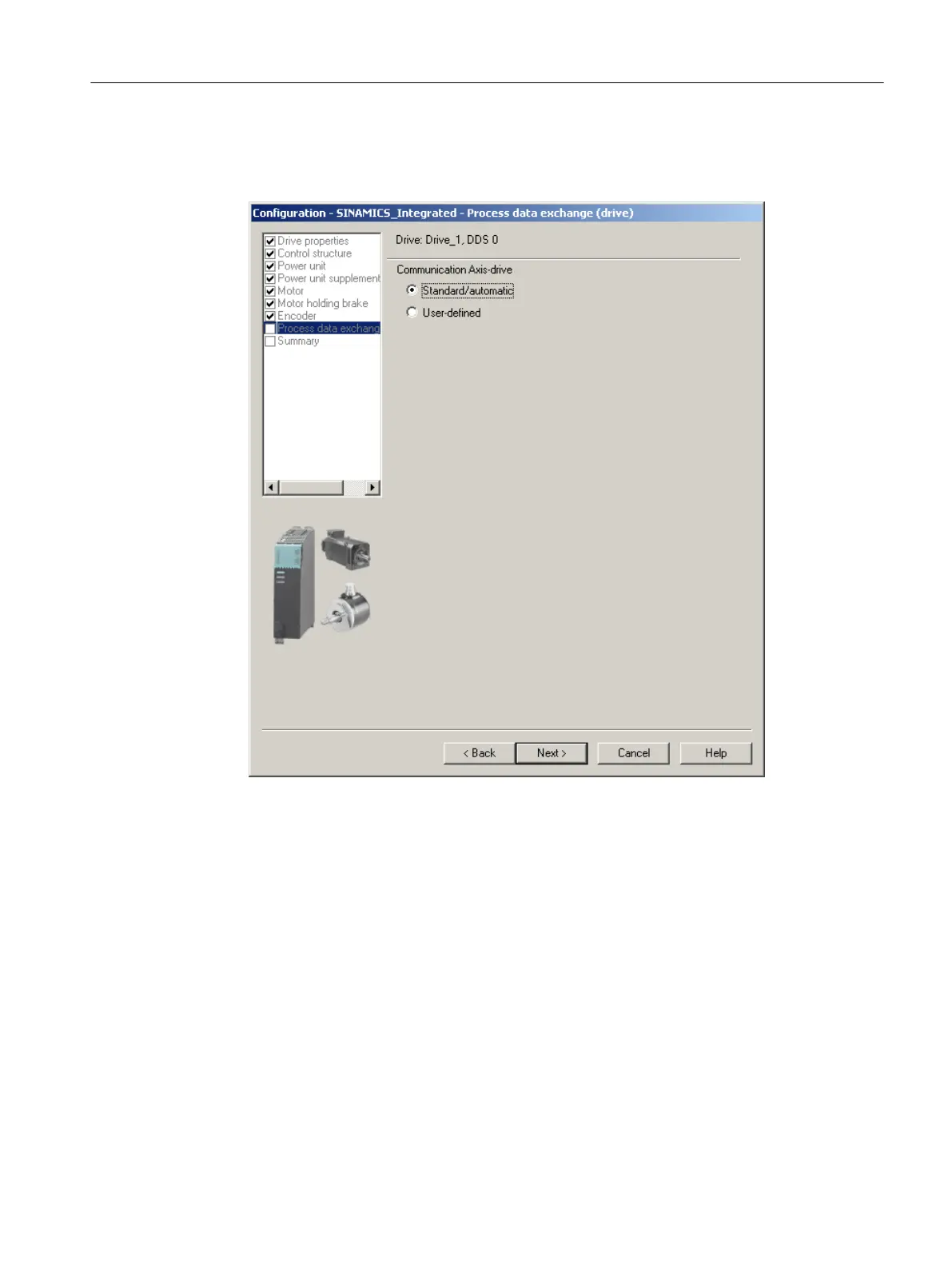

Figure 7-9 Configuring the process data exchange (standard)
You
can also make the settings manually for the process data exchange by selecting "User-
defined".
Commissioning (software)
7.2 Performing an offline configuration
SIMOTION D410-2
Commissioning and Hardware Installation Manual, 01/2015 155
