Safety Integrated functions with PROFIsafe (PROFIBUS example)
Safety
Integrated functions are activated via "PROFIsafe on PROFIBUS" safe communication.
Control (F logic) is based on a SIMATIC F‑CPU connected via PROFIBUS with PROFIsafe.
Examples are a SIMATIC S7‑300 CPU 317F‑2 DP (not shown) or an ET 200S IM151‑7 F‑CPU
with the PROFIBUS DP master interface module (see picture).
1 2
3
1
2
3
6DIHW\
3URJUDP
PDVWHULQWHUIDFHPRGXOH'3PDVWHU
,2PRGXOHVZLWK),2
(76,0)&38'36ODYH
6,027,21'
,6ODYH
352),%86
)6ODYH
352),%86352),VDIH

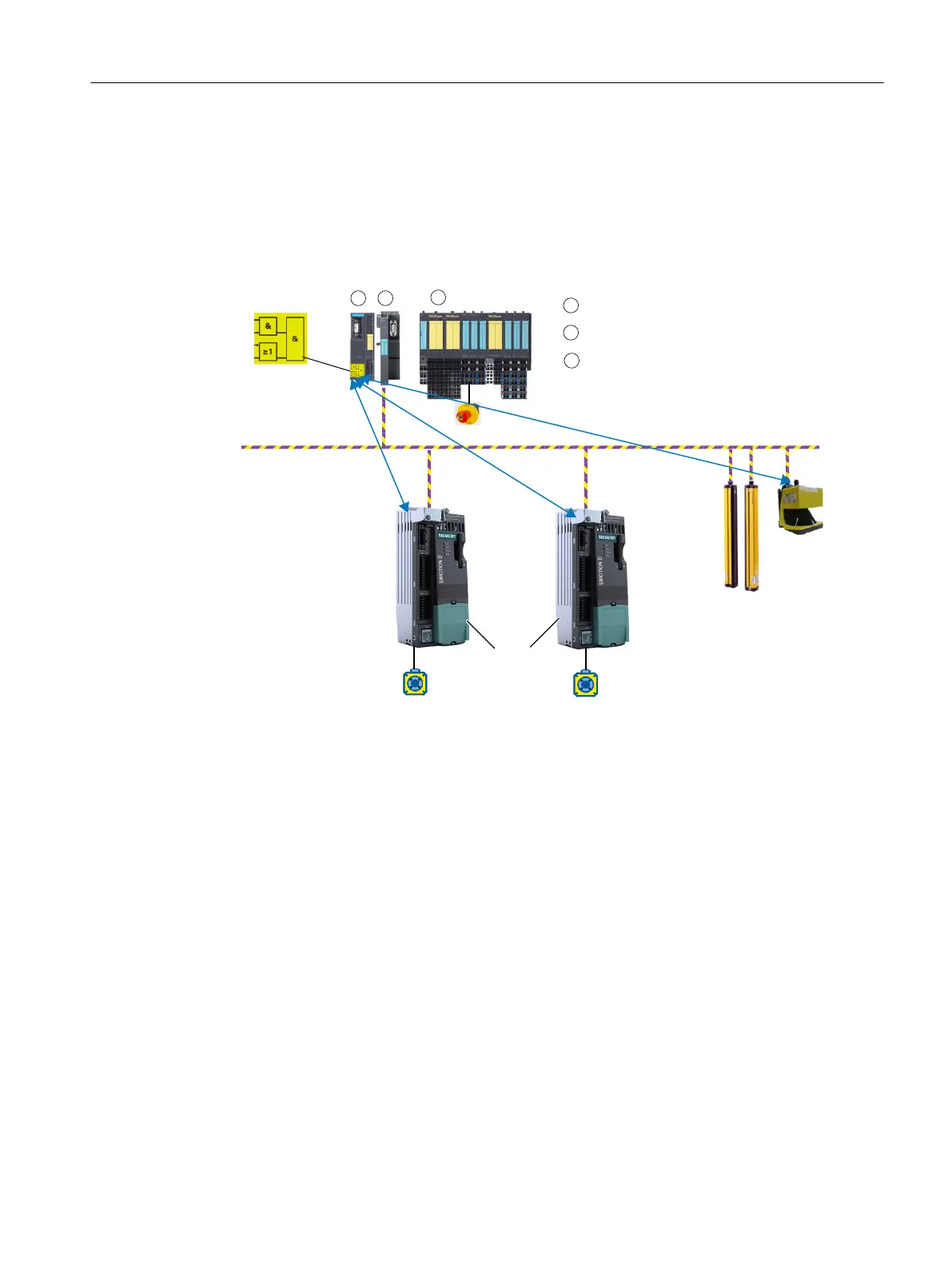

Figure 7-43 SIMOTION D, control of F functions via PROFIBUS with PROFIsafe
Commissioning (software)
7.18 Configuring Safety Integrated functions
