Siemens SINUMERIK 802D Short Guide

6. Tool Offsets 09.01
6-34 © Siemens AG, 2001. All rights reserved
SINUMERIK 802D Milling ISO Dialect M (ISF) - Edition 09.01
Call Tool
N10 T17
N20 G00 X-2 Y-2
N30 G43 Z-30 H1
N40 G49
T Call tool number
H Call tool offset memory
G43 Select positive tool length offset
G44 Select negative tool length offset
G49 Deselect tool length offset
Note:
If an offset data block does not contain any H number, this
offset cannot be activated in ISO Dialect. The H number
must be unique.

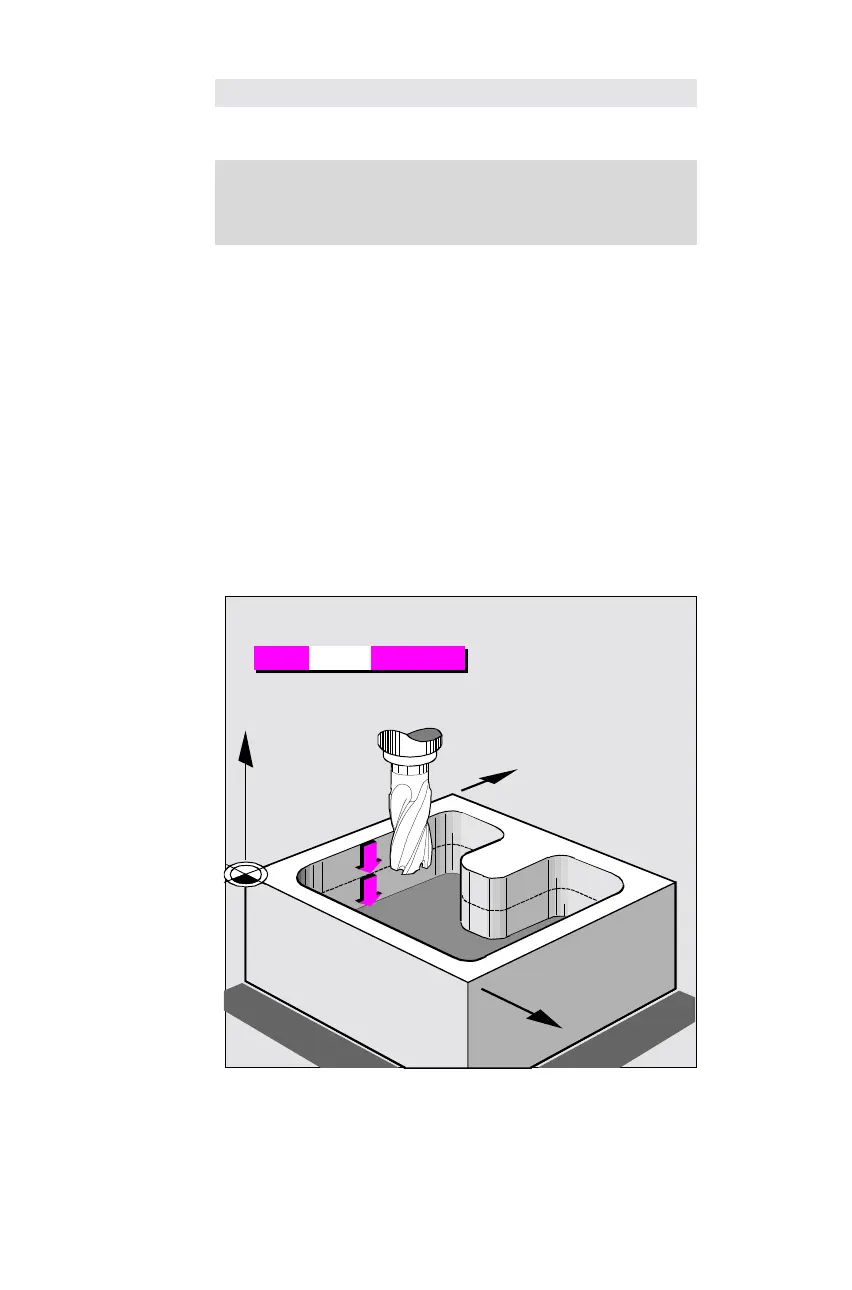

Z
Y
X
N30
G43 Z-30 H1
Tool length offset negative
