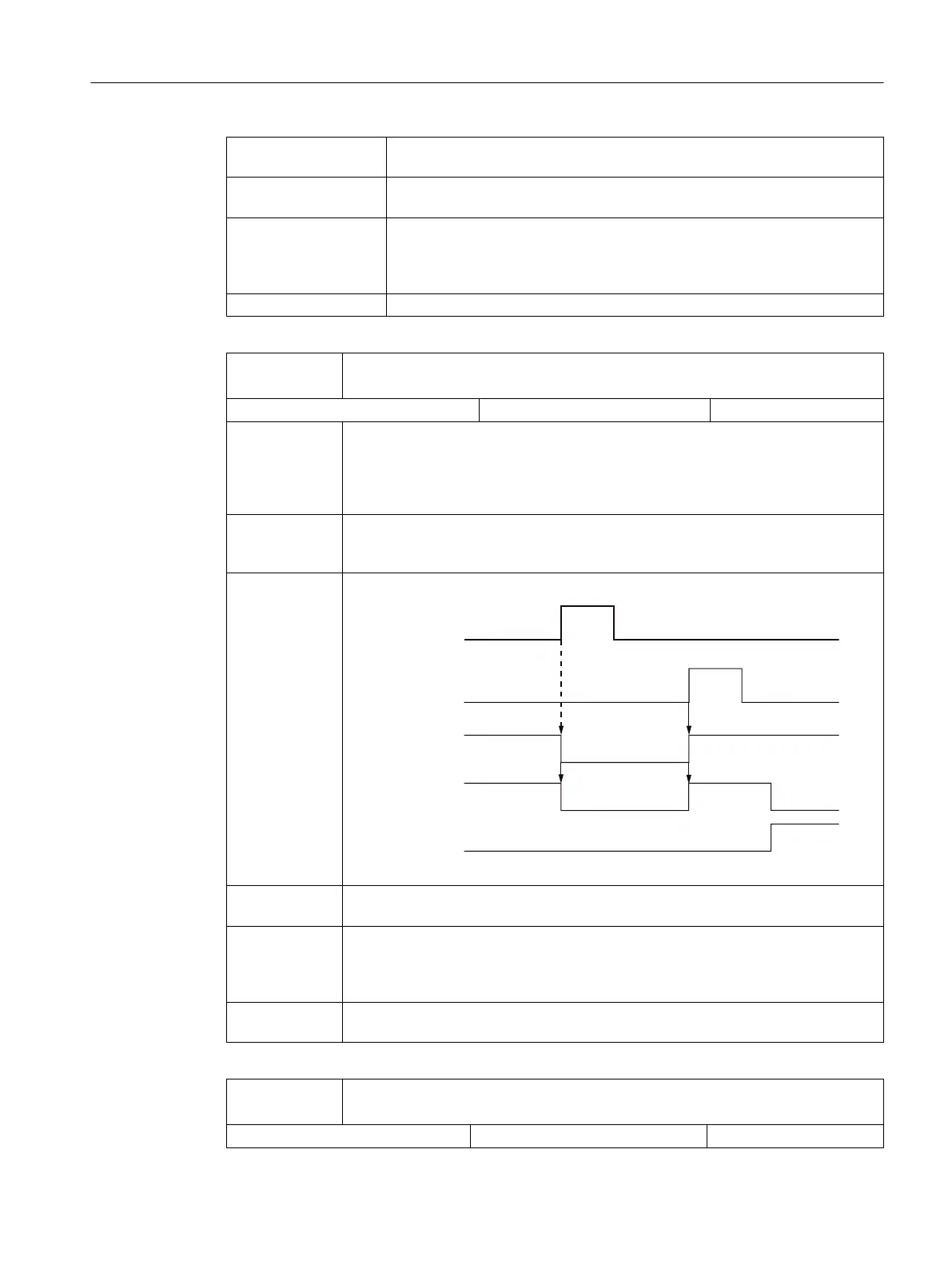

Signal state 1 or edge
change 0 → 1
The NC program being executed is stopped after the part program block being
executed has been completely processed. Otherwise, as for "NC stop".
Signal state 0 or edge
change 1 → 0
No effect
corresponding to ... IS "NC stop"
IS "NC stop axes plus spindles"
IS "Program status stopped"
IS "Channel status interrupted"
Note for the reader Function Manual Basic Functions K1
DB3200
DBX7.3
NC stop
Signal(s) to channel (PLC → NCK)
Edge evaluation: No Signal(s) updated: Cyclic
Signal state 1 or
edge change 0
→ 1
The NC program being executed is immediately stopped, the actual block is not
completed. Only the axes are stopped without contour violation.
Distances to go are only traversed through after a new start.
The program status changes to "stopped", the channel status changes to "interrup‐
ted".
Signal state 0 or
edge change 1
→ 0
No effect
Application On NC start the program is continued at the point of interruption.
,61&6WRS
,61&6WDUW
3URJUDPUXQQLQJ
$[LVUXQQLQJ
%ORFNSURFHVVHG
Special cases,
errors, ...
The signal NC stop must be active for at least one PLC cycle.
corresponding
to ...
IS "NC stop at block limit"
IS "NC stop axes plus spindles"
IS "Program status stopped"
IS "Channel status interrupted"
Note for the
reader
Function Manual Basic Functions K1
DB3200
DBX7.4
NC stop axes plus spindles
Signal(s) to channel (PLC → NCK)
Edge evaluation: No Signal(s) updated: Cyclic
Detailed descriptions of interface signals
5.7 Channel-specific signals
Parameter Manual
Parameter Manual, 08/2015, 6FC5397-8EP40-0BA1 385
