Signal state 0 No end of program or program abort
Status after the control has been switched on

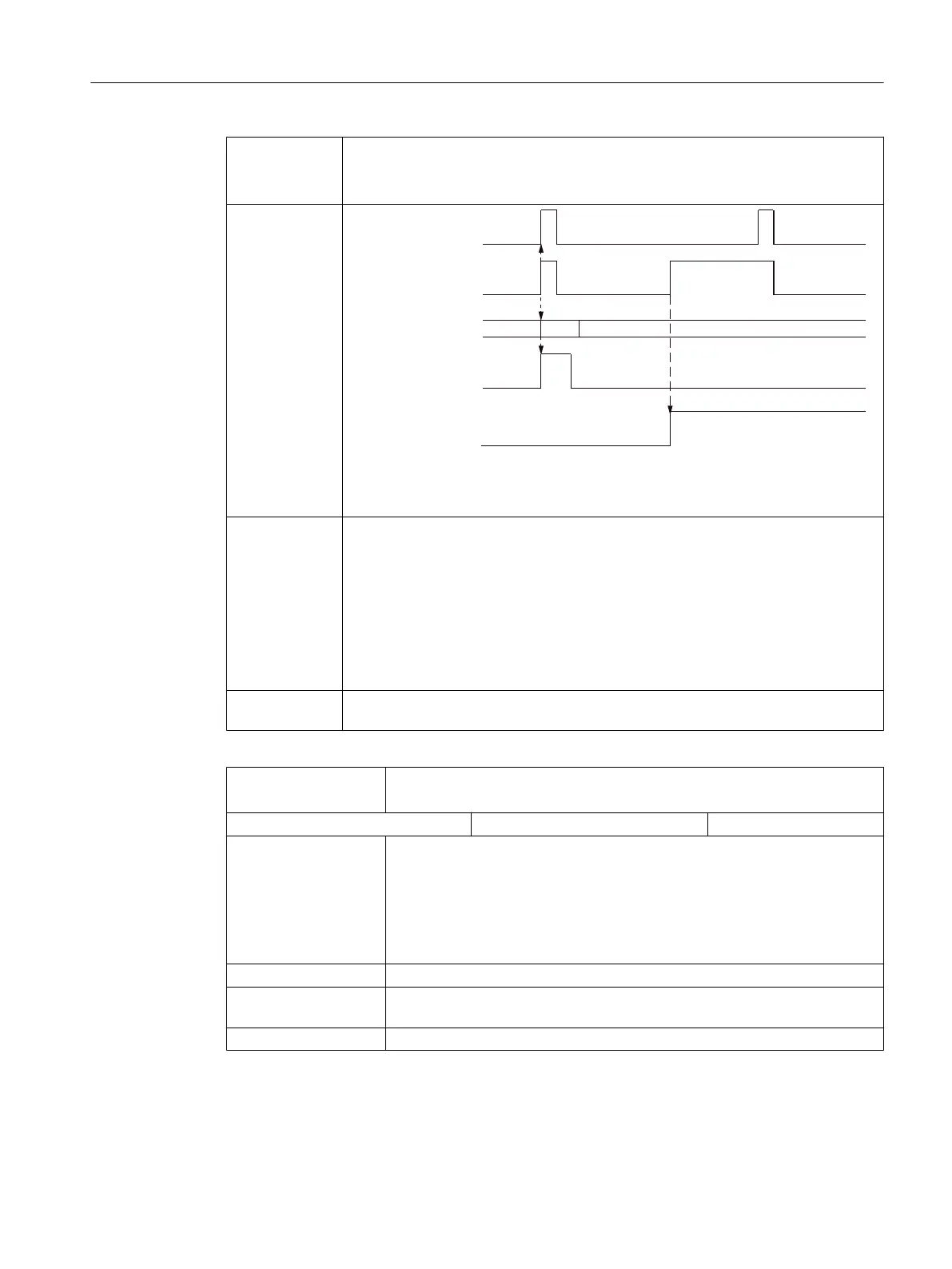

Start of an NC Program
Application
%ORFNSURFHVVHG
1&EORFNZLWK0
0FKDQJHVLJQDO
3/&F\FOHWLPH
,600DFWLYH
'DWDWUDQVIHUWR
ZRUNLQJPHPRU\
0
The PLC can detect the end of program processing with this signal and react appro‐
priately.
Special cases,
errors, ...
● The M2 and M30 functions have equal priority. Only M2 should be used.
●
The IS "M2/M30 active" is present as steady-state signal after the end of the
program.
●
Not suitable for automatic follow-on functions such as workpiece counting, bar
feed, etc. For these functions, M2 should be written into a separate block and
the word M2 or the decoded M signal should be used.
●
Auxiliary functions must not be written in the last block of a program that should
result in a read-in stop.
Note for the
reader
Function Manual Basic Functions K1
DB3300
DBX1.7
Program test active
Signal(s) from channel (NCK → PLC)
Edge evaluation: No Signal(s) updated: Cyclic
Signal state 1 Program control "Program test" is active. Axis disable is set internally for all
axes (not spindles). Therefore the machine axes do not move when a part
program block or a part program is being processed. The axis movements
are simulated on the operator interface with changing axis position values.
The axis position values for the display are generated from the calculated
setpoints.
Otherwise, the part program is executed in the normal way.
Signal state 0 Program control program test is not active.
Corresponding to ... IS "Activate program test"
IS "Program test selected"
Note for the reader Function Manual Basic Functions K1
Detailed descriptions of interface signals
5.7 Channel-specific signals
Parameter Manual
Parameter Manual, 08/2015, 6FC5397-8EP40-0BA1 395
