You can connect the following operator controls to the interface:
● 80 single keys
● 64 LEDs
● Handwheel
● 2 override switches
The following inputs/outputs are also available:
● 9 digital inputs (5 V)
● 6 digital inputs (24 V)
● 15 digital inputs (24 V / each 0.15 A)
Validity
The following description applies to the MCP Interface PN.
Article number: 6FC5303-0AF03-0AA0

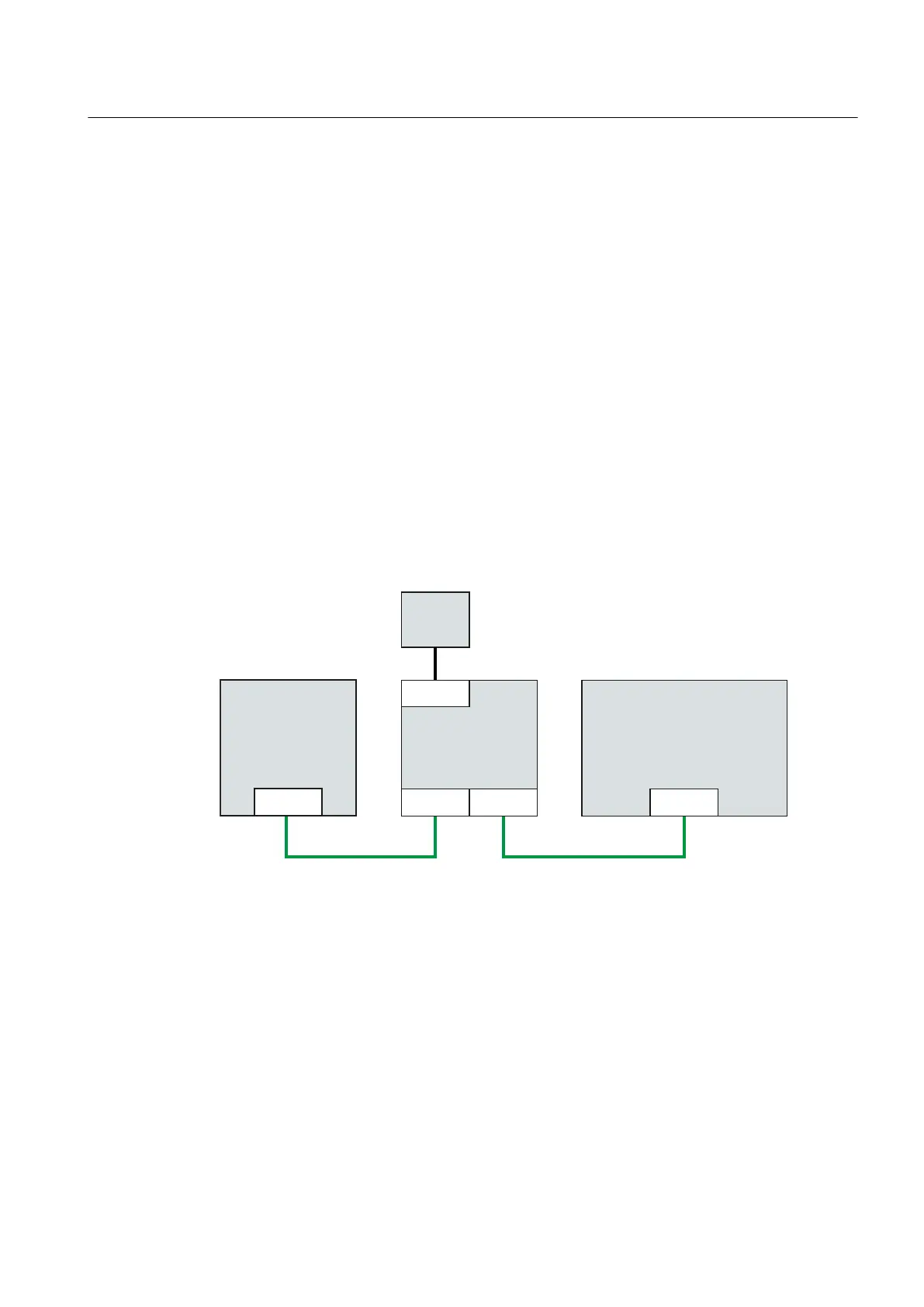

System configuration
PROFINET peripherals
e.g. PP 72 / 48D PN
MCP Interface PN
PPU
31
31
;;
;
Power supply DC 24 V
PROFINET
PROFINET
Connectable components
7.3 MCP Interface PN
PPU
Manual, 01/2014, 6FC5397-2DP40-3BA3 131
