Display
① Type plate
② Terminal strips / connectors for operator controls
③ Diagnostic LEDs
④ PROFINET interface X2 (Industrial Ethernet 100 Mbit/s)
⑤ PROFINET interface X3 (Industrial Ethernet 100 Mbit/s)
⑥ Grounding screw M5 for potential equalization connection
⑦ 24 VDC power supply X1 (with screw connection)

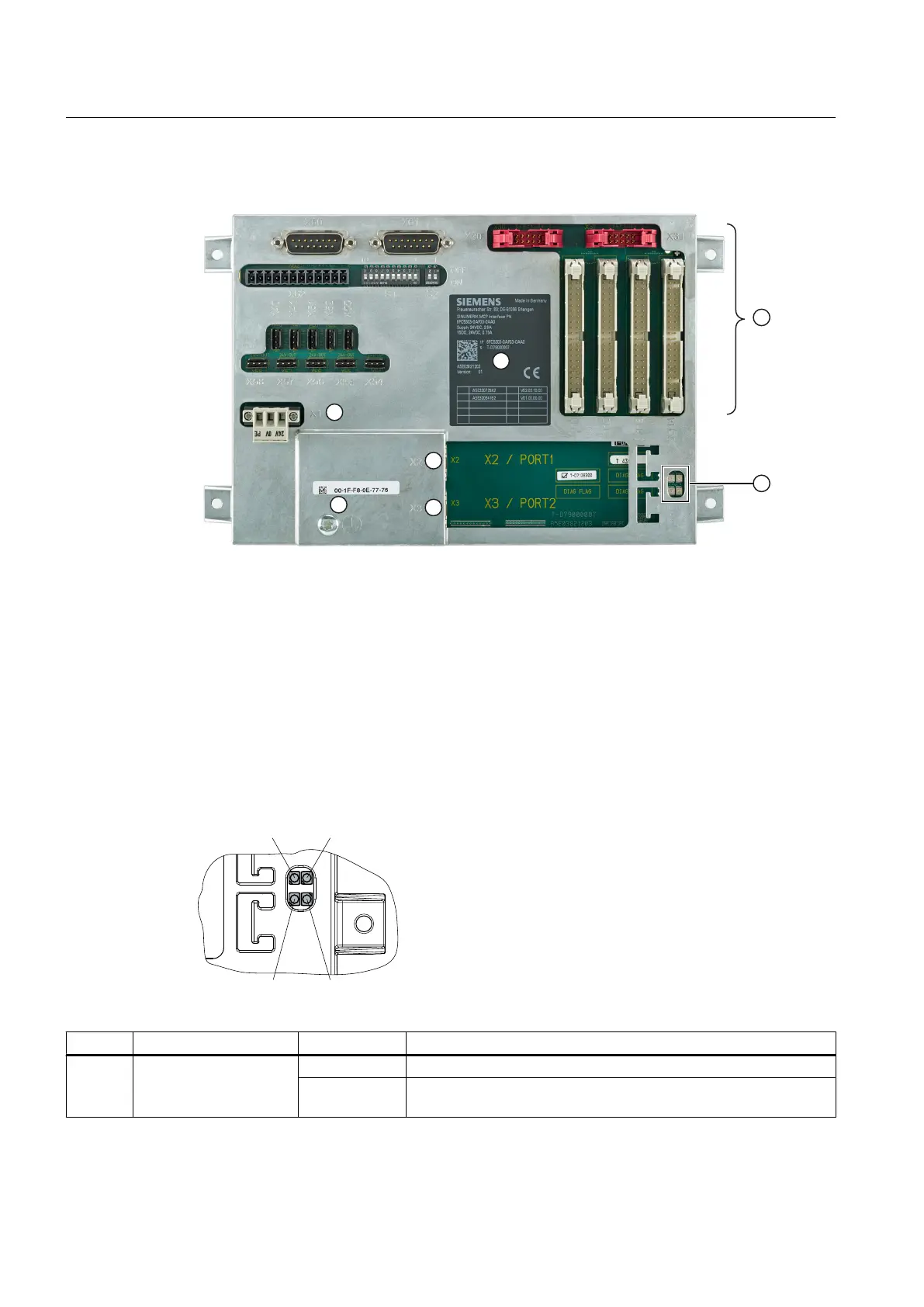

Figure 7-22 View of MCP Interface PN
LED displays
Name Function Status Meaning
H500 POWER OK (green) Lights up All internal voltages are in the setpoint range.
Does not light
up
At least one of the generated voltages has exceeded its setpoint; a
reset will be initiated.
Connectable components
7.3 MCP Interface PN
PPU
132 Manual, 01/2014, 6FC5397-2DP40-3BA3
