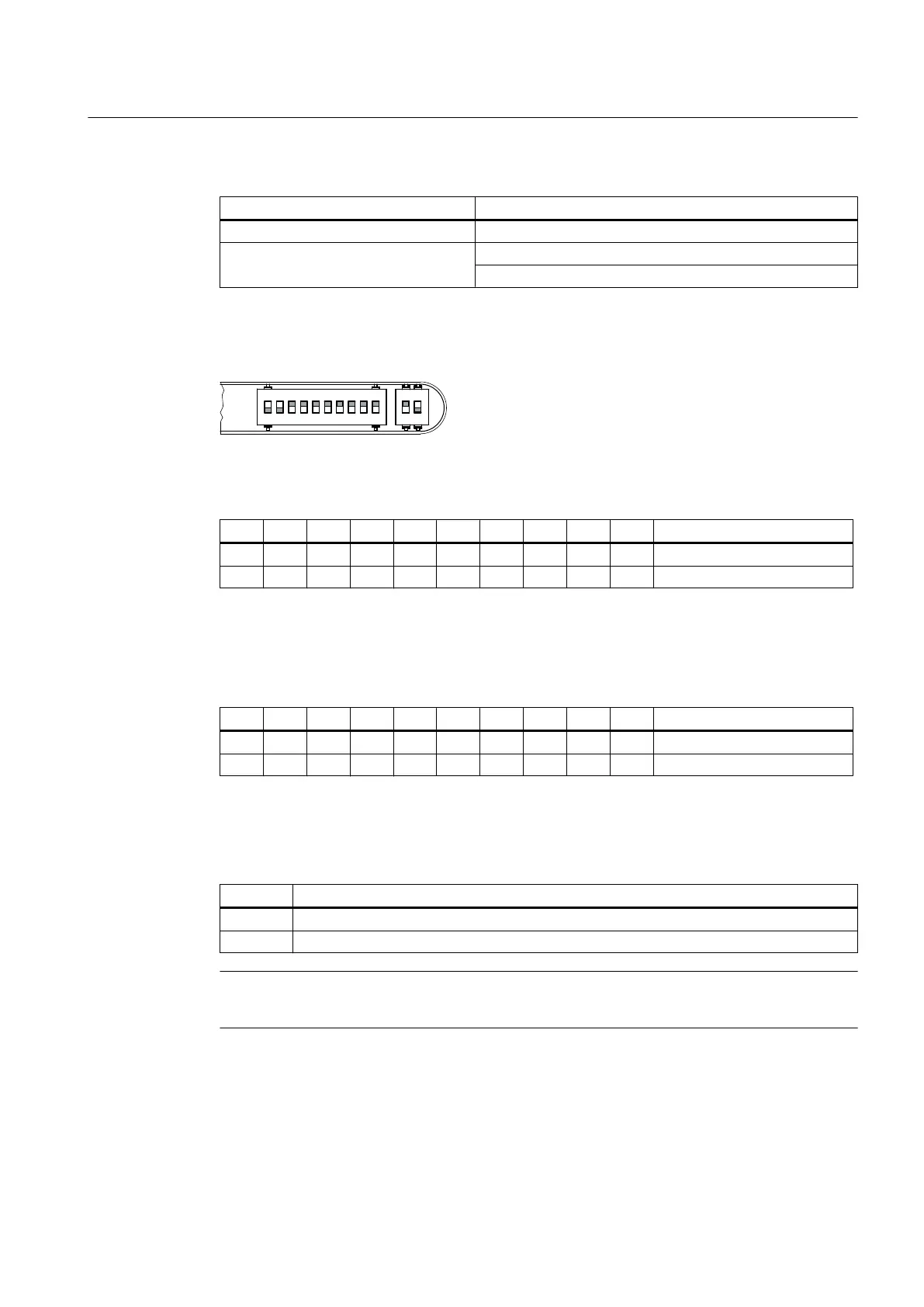

Table 7-52 Technical data of the outputs of X111 to X114
Parameter Value
Voltage: 0 V to 5 V (depending on the load)
Typical load current (without external
series resistor):
8 mA at LED flow voltage = 2.3 V
15 mA at short-circuit
Switch S1, S2
Table 7-53 Setting of switch S1 as delivered
1 2 3 4 5 6 7 8 9 10 Meaning
ON ON PLC I/O Interface
OFF OFF OFF OFF OFF OFF OFF OFF PROFINET address "0"
The two switches S1-9 and S1-10 must remain set to "ON".
The switches S1-1 to S1-8 define the PROFINET address. For a SINUMERIK 828D, the address "64"
must always be assigned to the MCP.
Table 7-54 Switch S1 settings
1 2 3 4 5 6 7 8 9 10 Meaning
ON ON ON
OFF OFF OFF OFF OFF OFF OFF PROFINET address "64"
The handwheel signal type is set with switch S2-1.
Table 7-55 Switch S2 settings
1 Meaning
ON differential interface
OFF TTL interface
Note
Switch S2-2 is reserved for test purposes.
Connectable components
7.3 MCP Interface PN
PPU
Manual, 01/2014, 6FC5397-2DP40-3BA3 145
