8.1 DMP compact module 16I (6FC5 111-0CA01-0AA0)
8-104
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

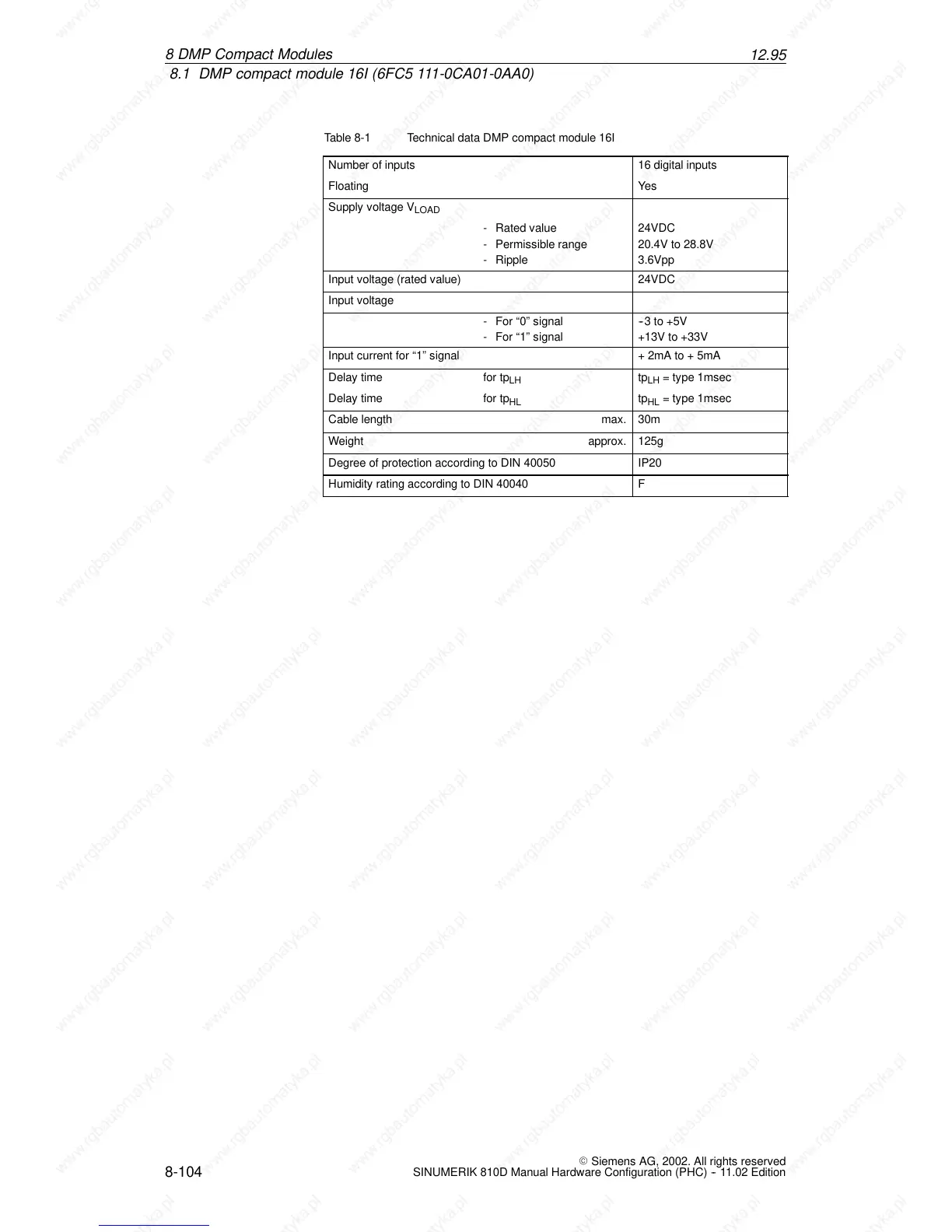

Table 8-1 Technical data DMP compact module 16I
Number of inputs
16 digital inputs
Floating Yes
Supply voltage V
LOAD
- Rated value 24VDC
- Permissible range 20.4V to 28.8V
- Ripple 3.6Vpp
Input voltage (rated value) 24VDC
Input voltage
- For “0” signal --3to+5V
- For “1” signal +13V to +33V
Input current for “1” signal +2mAto+5mA
Delay time for tp
LH
tp
LH
=type1msec
Delay time for tp
HL
tp
HL
=type1msec
Cable length max. 30m
Weight approx. 125g
Degree of protection according to DIN 40050 IP20
Humidity rating according to DIN 40040 F
8
DMP Com
p
a
ct Modu
l
e
s
