12.95
6.1 Single I/O module
6-90
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
360
135
374
25
Ventilation gap 50mm
Ventilation gap 50mm
70
Space for
front
connector
25
P24Logic
M24Lo.
SHIELD
P24Power
M24Po
SHIELD

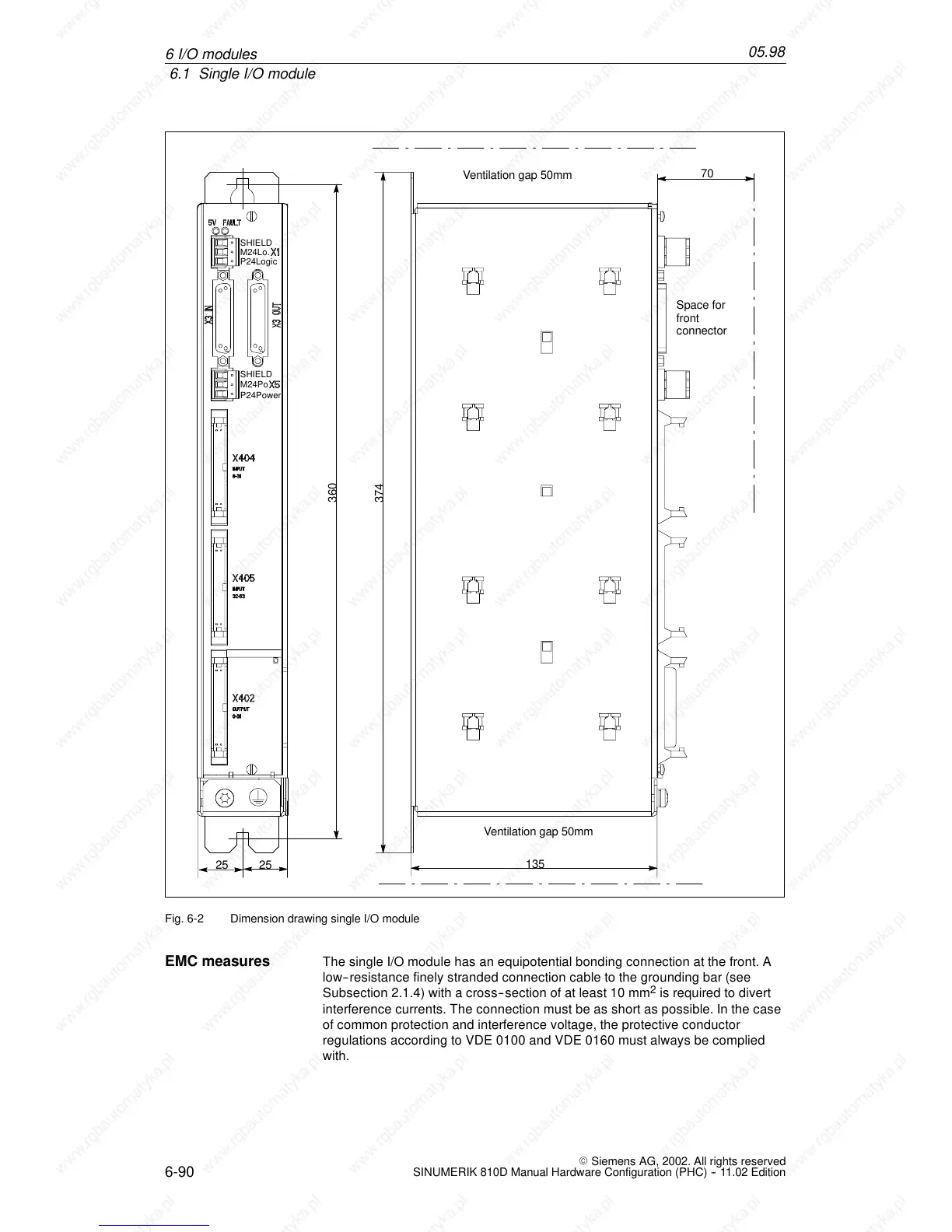

Fig. 6-2 Dimension drawing single I/O module
The single I/O module has an equipotential bonding connection at the front. A
low--resistance finely stranded connection cable to the grounding bar (see
Subsection 2.1.4) with a cross--section of at least 10 mm
2
is required to divert
interference currents. The connection must be as short as possible. In the case
of common protection and interference voltage, the protective conductor
regulations according to VDE 0100 and VDE 0160 must always be complied
with.
EMC measures
6I
