3.2 Installing the SINUMERIK 810D
3-47
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
Assembly shield plate

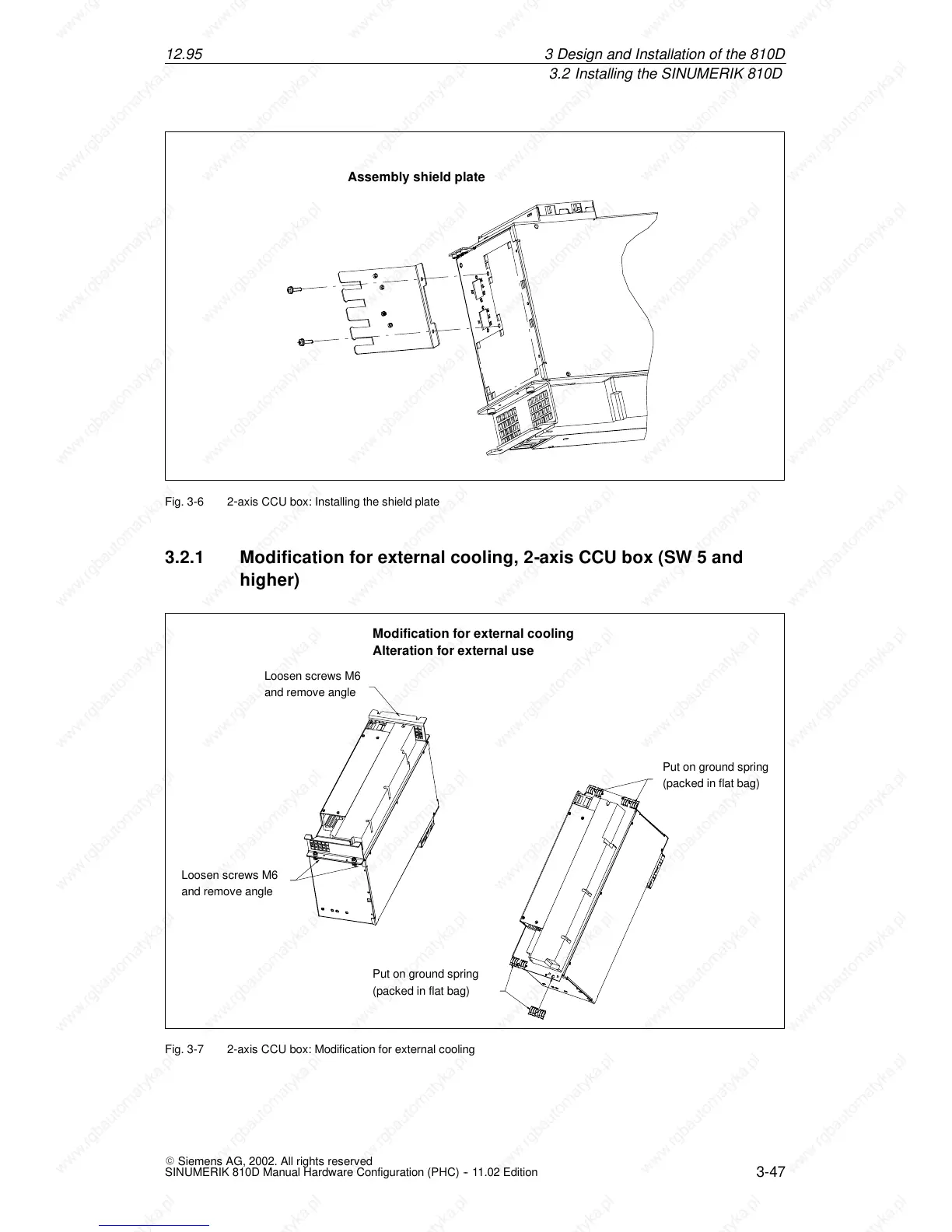

Fig. 3-6 2-axis CCU box: Installing the shield plate
3.2.1 Modification fo r external cooling , 2-axis CCU b o x (SW 5 and
higher)
Modification for external cooling
Alteration for external use
Put on ground spring
(packed in flat bag)
Loosen screws M6
and remove angle
Put on ground spring
(packed in flat bag)
Loosen screws M6
and remove angle
Fig. 3-7 2-axis CCU box: Modification for external cooling
3
De
s
i
g
n
a
nd In
s
t
a
l
l
a
tion o
f
the
8
10D12.95
