12.95
3.2 Installing the SINUMERIK 810D
3-48
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
Motor leads
Attachment option for
cable connection, motor
brake
Shield plate
Equipotential
bonding
connection
Equipotential bonding
connection
Tube clamp
A3A2A1
Connector type for cable connection*
motor brake:
Messrs. PHÖNIX
Type: MSTB 2.5/2-STF-5.08-BD1-2SO
Order no.: 1863 631
Type: MVSTBU 2.5/2-GFB-5.08
Order no.: 1788 347
*in the case of the SIEMENS motor lead,
included in the scope of supply
Shield connection

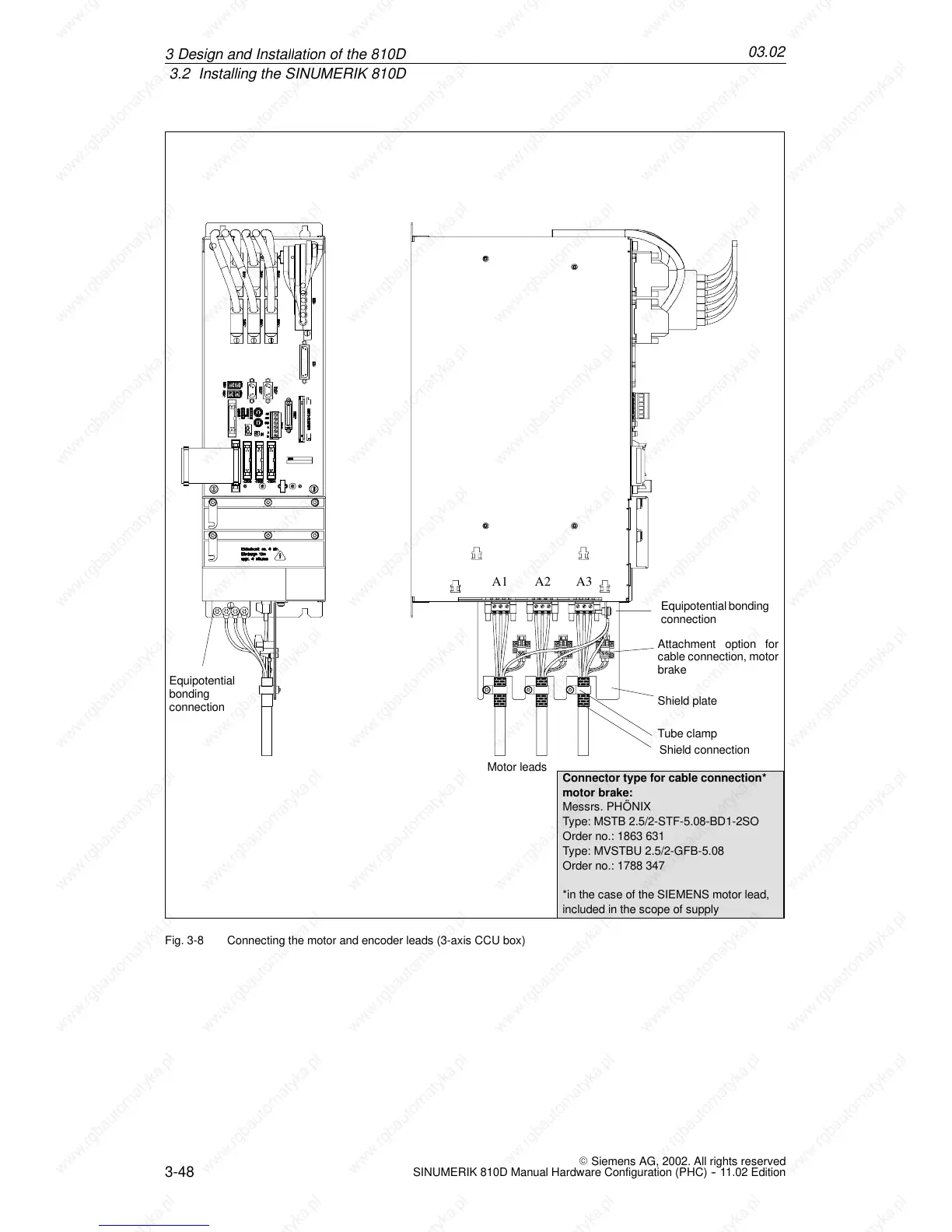

Fig. 3-8 Connecting the motor and encoder leads (3-axis CCU box)
3
De
s
i
g
n
a
nd In
s
t
a
l
l
a
tion o
f
the
8
10D 12.95
03.02
